Product Details:
Payment & Shipping Terms:
|
| LED Lowbay Light: | 150W | Driver Brand: | Meanwell |
|---|---|---|---|
| Waterproof Rating: | IP54 | Efficiency: | 120Lm/w |
| Beam Angle: | 120deg | Warranty: | 5 Years |
| High Light: | low bay lighting,low bay led shop lights |
||

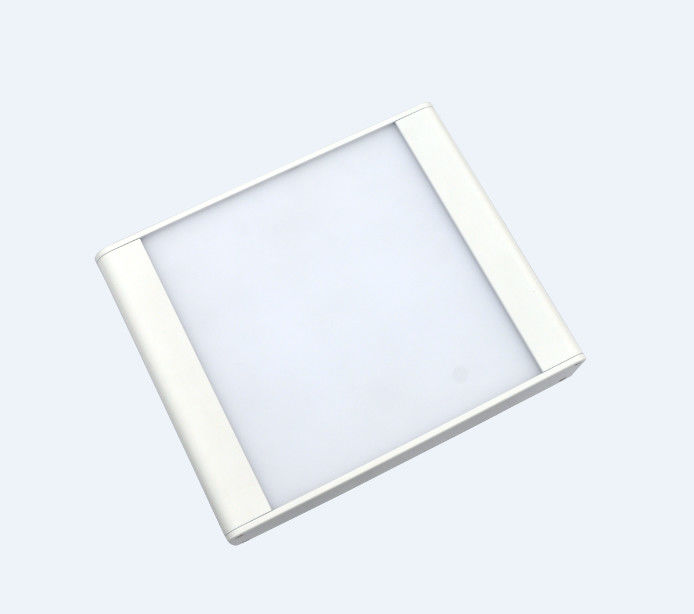

Chips Low Bay Led Lighting , Led Low Bay Warehouse Lighting 120lm / W Efficiency
Features:
·High power ,high brightness,high quality,high efficiency,up to 80% energy saving.
·Light cover adpots light diffusion materials to bring us better lighting effect.high illumination, and the mliky cover can reach 90% light transmittance.
·With low light degradation LED and good heat dissipation aluminum material with quick heat conduction.Make the LED lights have longer lifetime.10 times than the traditional ones.They need low cost in maintenance.so,they are fit for the lighting place where is hard to replace the broken lights often..
·High luminous efficiency, Whole lamp output light effiency >100LM/W.
·High quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.
·For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation ±7%, the brightness and lifetime will be reduced very fast, but for BBE LED, even the voltage fluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over Current, Over Voltage, Over Heat, Thunder Protection.
·Impact Resistance, Shockproof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.
·the CCT of Warm White,Neutral White,Pure White to meet the needs of different occasions,eliminated the low color temperature of the sodium lamp which cause the depressed mood,observer will feel more comfortable.
Outlook:
Technical parameter:
| Model | Inptut voltage | Luminous Flux | LED type | LED QTY | System Efficiency |
|---|---|---|---|---|---|
| LY-HB56150PW | AC100V～240V 50/60HZ |
15800lm | LUXEON 3030 | 200PCS | ＞90% |
| LY-HB56150WW | 14000lm | ||||
| LY-HB56150NW | 14550lm |
| Model | Driver | Beam Angle | CRI | CCT | Meterial |
|---|---|---|---|---|---|
| LY-HB56150PW | Meanwell CLG-150 ELG-150 |
120° | ＞75 | 5000-6500k | Aluminum+Acrylic |
| LY-HB56150WW | 2700-3200k | ||||
| LY- HB56150NW | 4000-4500k |
| Model | Power Factor | Lifespan(hrs) | IP Rating | Product Size(mm) | NET Weight(KG) |
|---|---|---|---|---|---|
| LY-HB56150PW | 0.96 | ＞50000 | IP50 | 330X328X100 | 5.3 |
| LY-HB56150WW | |||||
| LY-HB56150NW |
Distribution Curve Photometry (AAI Figure)
Operation and Storage Condition
·Operation Ambient Temperature -30 to +50°C, Relative Humidity 20~90%
·Input Voltage 100~240V AC, 50/60Hz
·Storage Ambient Temperature -30 to +65°C, Relative Humidity 5~95%
·Mounting Height : Suitable for 5~12m height
Assembly and Installation
Assembly-Electricity
·Blue : Neutral
·Brown : Line
·Yellow-Green : Ground
Package
·Carton Size: 390mm×390mm×160mm
·Net weight:5.3KG Gross weight:6.4KG
Warning
·Please handle the product with care when open the package.
·Do Not Open the Light Engine
·Do Not Soak the Low Bay in humid environment
·Do Not Light up the System Without Grounding
·Do Not Use Dimmer
·If the new LED down light is found damaged, please keep the original package and contact us.
·In order to ensure the product work properly, please use the power supply within indicating voltage range.
·Whatever the case, lamps can not be covered by heat resistant gasket or similar materials.
·1-10V dimming need to be customized
It is applicable to Indoor Stadium lighting ,warehouse lighting, Workshop lighting, factory lighting,Supermarket lighting and so on.
·New Installation or Replace the traditional High Pressure Sodium Lamp, High Pressure Mercury Lamp, and Metal Halide Street Lamps. Etc.
