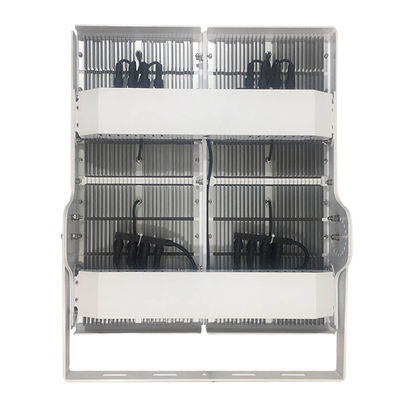

1000W High Brightness LED Stadium Light with IP66 IK10 25 / 60 / 90 degree beam angle

1000W High Brightness LED Stadium Light with IP66 IK10 25 / 60 / 90 degree beam angle
1000W High Brightness LED Stadium Light with IP66 IK10 25 / 60 / 90 degree beam angle 1000W High Brightness LED Stadium Light with IP66 IK10 25 / 60 / 90 degree beam angle 1000W High Brightness LED Stadium Light with IP66 IK10 25 / 60 / 90 degree beam angle 1000W High Brightness LED Stadium Light with IP66 IK10 25 / 60 / 90 degree beam angle 1000W High Brightness LED Stadium Light with IP66 IK10 25 / 60 / 90 degree beam angle 1000W High Brightness LED Stadium Light with IP66 IK10 25 / 60 / 90 degree beam angle

Large Image :  1000W High Brightness LED Stadium Light with IP66 IK10 25 / 60 / 90 degree beam angle

Product Details:

Place of Origin: GuangDong China
Brand Name: Leyond
Certification: TUV, CE, RoHS, CB, ENEC, GS, SAA, UL, DLC, FCC
Model Number: LY-ST541000PW

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Price: 549$-699$/pc
Packaging Details: Each product with 1 Individual carton
Delivery Time: sample: 3-5working days, bulk order: 7-10 working days after received the payment
Payment Terms: T/T, Western Union、PayPal, L/C
Supply Ability: 30000pc/month
Detailed Product Description
Power: 1000W LED Chip: Luxeon Lumileds 5050
Light Efficiency: 165lm/w Beam Angle: 25/60/90degree
LED Driver: Meanwell Warranty: 5 Years
IP Rating: IP65 Material: Aluminum
Housing Color: White / Customize Lighting Design: Lighting And Circuitry Design, DIALux Evo Layout
Package: Inner & Outer Lead Time: 7-10 Days
Luminous: 165000lm Working Temperature: -40-55 Degree Celsius
High Light:

led stadium lighting

,

high power led floodlight

1000W High Brightness LED Stadium Light with IP66 IK10 25 / 60 / 90 degree beam angle

Feature:



- Adoption LEYOND exclusive Lens with light transmittance up to 98%.
- Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
- There are 25°,60°, 90° beam angle options for the Lens.
- Scientifically-designed heat dissipater with much better cooling effect.
- High luminous efficiency, Whole lamp output light efficiency >165LM/W.
- High quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.
- For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation ±7%, the brightness and lifetime will be reduced very fast, but for LEYOND LED Chip, even the voltage fluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over Current, Over Voltage, Over Heat, Thunder Protection.
- Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp.without harm to the human body.
- The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable.



Product Description:

1000W High Brightness LED Stadium Light with IP66 IK10 25 / 60 / 90 degree beam angle 0

1000W High Brightness LED Stadium Light with IP66 IK10 25 / 60 / 90 degree beam angle 1

Dimension:



1000W High Brightness LED Stadium Light with IP66 IK10 25 / 60 / 90 degree beam angle 2



Application Cases:



1000W High Brightness LED Stadium Light with IP66 IK10 25 / 60 / 90 degree beam angle 3

1000W High Brightness LED Stadium Light with IP66 IK10 25 / 60 / 90 degree beam angle 4

1000W High Brightness LED Stadium Light with IP66 IK10 25 / 60 / 90 degree beam angle 5

1000W High Brightness LED Stadium Light with IP66 IK10 25 / 60 / 90 degree beam angle 6





Installation instructions:



1. Switch off the power supply

2. Make the stadium light on the Bracket

3. Electrical wiring connection

4. Tight the screws

5. Switch ON





Oprations:



• Operation Ambient Temperature -25 to +50°C, Relative Humidity 20~90%

• Input Voltage 100~240V AC, 50/60Hz

• Storage Ambient Temperature -40 to +55°C, Relative Humidity 5~95%

• Mounting Height : Suitable for 6~18m height



(Kindly reminder: All installation steps must handl by professional electrician)





Specification:





Model

modules

number



Power



Luminous flux



Luminous efficiency



CRI



CCT



BeamAngle



LY-ST231000PW



16



1000W



165000lm



165lm/W



>70

3000-3500K

4000-4500K

5000-5500K

6000-6500K



25°

60°

90°





Applications:



- Sprot field

- Warehouse

- Cold storage

- Square

- Tunnel

- Natatorium

- Gymnasium





Package info:



Inner box Size: 830mm×735mm×160mm





Actual pictures:



1000W High Brightness LED Stadium Light with IP66 IK10 25 / 60 / 90 degree beam angle 7

1000W High Brightness LED Stadium Light with IP66 IK10 25 / 60 / 90 degree beam angle 8





Related hot selling products:



1000W High Brightness LED Stadium Light with IP66 IK10 25 / 60 / 90 degree beam angle 9

1. Sword series LED street light 130w-200w
2. Sword series LED street light 70w-120w
3. Sword series LED street light 20w-60w
4. King series LED street light 80w-200w
5. King series LED street light 20w-60w
6. Integrated All in one Solar LED garden light 40w-100w
7. Integrated All in one Solar LED garden light 10w-30w
8. Fairy LED street light 10w-30w
9. Galaxy series LED street light 30-100w
10. Galaxy series LED street light 110w-200w



1000W High Brightness LED Stadium Light with IP66 IK10 25 / 60 / 90 degree beam angle 10



Mr. Pure Zhao (Sales Engineer)
Shenzhen Leyond Lighting Co.,ltd
Web: www.leyond.com.cn

Email: sales15@leyond.com.cn

Mobile/whatsapp: 0086 18675501972
Wechat: 0086 18675501972





FAQ:



- What about the lead time?

A:Sample needs 7 days, mass production time needs 1-2 weeks for order quantity more than

- Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available

- How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

- How to proceed an order for led light?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.

- Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

- Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.

- How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
