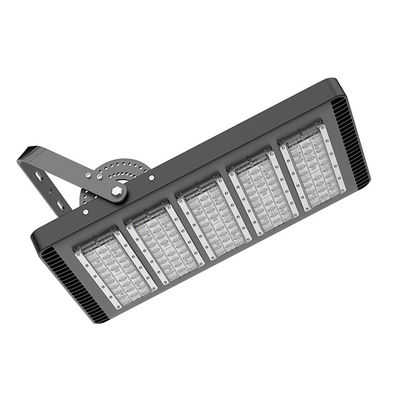

High Lumen 40000LM IP65 LED Stadium Light Die Casting Aluminium

large.img.alt
large.img.alt

Large Image :  High Lumen 40000LM IP65 LED Stadium Light Die Casting Aluminium

Product Details:

Place of Origin: Shenzhen China
Brand Name: LEYOND
Certification: TUV CE RoHS CB ENEC GS SAA UL DLC FCC ETL
Model Number: LY-ST45250XX

Payment & Shipping Terms:

Minimum Order Quantity: 20
Price: 150-180 USD/pc
Packaging Details: Standard export carton Carton size:85x71x19cm, 1pc per carton
Delivery Time: 7-10 Working Days
Payment Terms: T/T, Western Union, L/C, MoneyGram
Supply Ability: 300,000 pcs/month
Detailed Product Description
Item: LED Stadium Light LED Source: LUXEON 5050
Power: 240w Luminous: 40000LM
Driver: Meanwell Driver Beam Angle: 25/60/90/160x65 Degree
CCT: 2700-6500K Lifetime: >100000 Hours
Control: Daylight Control, Motion Sensor IP Rated: IP65
Housing Material: Die Casting Aluminum Warranty: 5 Years
Lead Time: 7-10 Working Days Optic: LEDiL
Application: Sport Field / Square / Air Port / Bus Tation / High Pole Light Lamp Color: Black Or Customize
CRI: Ra>70 Package: Inner & Outer
Lighting Solutions: Lighting And Circuitry Design, DIALux Evo Layout Working Temperature: -40-55 Degree Celsius
High Light:

IP65 LED Stadium Light

,

40000LM LED Stadium Light

,

40000LM High Lumen LED Light

High Lumen 40000LM IP65 LED Stadium Light Die Casting Aluminium



25 60 90 Degree Beam Angle High Lumen Ip65 Die Casting Aluminium LED Sport Light



Features:

- Adoption LEYOND exclusive Lens with light transmittance up to 98%.
- Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
- There are 25°,60°, 90° beam angle options for the Lens.
- Scientifically-designed heat dissipater with much better cooling effect.
- High luminous efficiency, Whole lamp output light efficiency >160LM/W.
- High quality power supply, input voltage 100-240V. The power efficiency is more than
90%, power factor greater than 0.98, UL compulsory certification.
- For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation ±7%, the brightness and lifetime will be reduced very fast, but for LEYOND LED Chip, even the voltage fluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over Current, Over Voltage, Over Heat, Thunder Protection.
- Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp.without harm to the human body.
l The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable.



Product Description:



High Lumen 40000LM IP65 LED Stadium Light Die Casting Aluminium 0

High Lumen 40000LM IP65 LED Stadium Light Die Casting Aluminium 1

High Lumen 40000LM IP65 LED Stadium Light Die Casting Aluminium 2



Dimension:

High Lumen 40000LM IP65 LED Stadium Light Die Casting Aluminium 3



Application Cases:

High Lumen 40000LM IP65 LED Stadium Light Die Casting Aluminium 4

High Lumen 40000LM IP65 LED Stadium Light Die Casting Aluminium 5

High Lumen 40000LM IP65 LED Stadium Light Die Casting Aluminium 6





Installation instructions:



1. Switch off the power supply

2. Make the stadium light on the Bracket

3. Electrical wiring connection

4. Tight the screws

5. Switch ON





Oprations:



• Operation Ambient Temperature -25 to +50°C, Relative Humidity 20~90%

• Input Voltage 100~240V AC, 50/60Hz

• Storage Ambient Temperature -40 to +55°C, Relative Humidity 5~95%

• Mounting Height : Suitable for 6~18m height



(Kindly reminder: All installation steps must handl by professional electrician)





Specification:



Par NO

Parameter

LY-ST45250PW LY- ST45250WW LY- ST45250NW
Inptut voltage AC90V~305V 50/60HZ
Sysem consumption(W) 250 250 250
Luminous flux(lm) 40500 40000 40000
Chip Brand LUXEON5050 CHIP LUXEON5050 CHIP LUXEON5050 CHIP



Beam Angle

25°,60°,90° 25°,60°,90° 25°,60°,90°
CRI >70
Color Temperature Warm white:3000K / Neutral white:4000K / Pure white:5000K / Cool white: 5700K
LED Driver MEAN WELL ELG-240
Luminous efficiency(lm/w) >160
Lifespan(hrs) >50000
IP Rating IP65
Dimmable YES&NO YES&NO YES&NO
Size(mm) 470x340x69 470x340x69 470x340x69
Net Weigh(kg) 6.4 6.4 6.4
Package Size(mm) 500*370*100 500*370*100 500*370*100
Package Quantity(Pcs) 1 1 1
Gross Weigh(kg) 7.6 7.6 7.6





Applications:



- Sprot field

- Warehouse

- Cold storage

- Square

- Tunnel

- Natatorium

- Gymnasium





Package info:



Inner box Size: 650mm×455mm×150mm

Outer box Size: 670mm×470mm×315mm



High Lumen 40000LM IP65 LED Stadium Light Die Casting Aluminium 7



Actual pictures:



High Lumen 40000LM IP65 LED Stadium Light Die Casting Aluminium 8

High Lumen 40000LM IP65 LED Stadium Light Die Casting Aluminium 9

High Lumen 40000LM IP65 LED Stadium Light Die Casting Aluminium 10





Related hot selling products:





High Lumen 40000LM IP65 LED Stadium Light Die Casting Aluminium 11





1. Sword series LED street light 130w-200w
2. Sword series LED street light 70w-120w
3. Sword series LED street light 20w-60w
4. King series LED street light 80w-200w
5. King series LED street light 20w-60w
6. Integrated All in one Solar LED garden light 40w-100w
7. Integrated All in one Solar LED garden light 10w-30w
8. Fairy LED street light 10w-30w
9. Galaxy series LED street light 30-100w
10. Galaxy series LED street light 110w-200w



FAQ:



- What about the lead time?

A:Sample needs 7 days, mass production time needs 1-2 weeks for order quantity more than

- Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available

- How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

- How to proceed an order for led light?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.

- Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

- Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.

- How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
