Item: | LED Stadium Light | LED Source: | LUXEON 5050 |
---|---|---|---|
Power: | 100w 150w 250w 500w | Luminous: | 40000LM |
Driver: | Meanwell Driver | Beam Angle: | 25/60/90/160x65 Degree |
CCT: | 2700-6500K | Lifetime: | >100000 Hours |
Control: | Daylight Control, Motion Sensor | IP Rated: | IP65 |
Housing Material: | Die Casting Aluminum | Warranty: | 5 Years |
Lead Time: | 7-10 Working Days | Optic: | LEDiL |
Application: | Sport Field / Square / Air Port / Bus Tation / High Pole Light | Lamp Color: | Black Or Customize |
CRI: | Ra>70 | Package: | Inner & Outer |
Lighting Solutions: | Lighting And Circuitry Design, DIALux Evo Layout | Working Temperature: | -40-55 Degree Celsius |
High Light: | IP65 LED Stadium Light,250w LED Stadium Light,250w Sport Field Lighting |

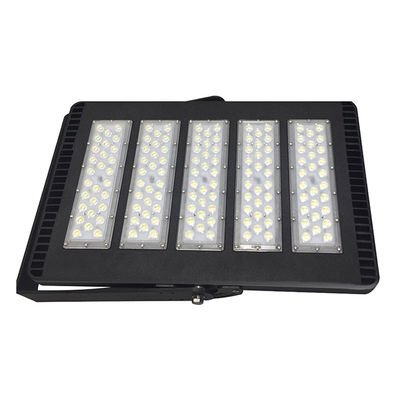

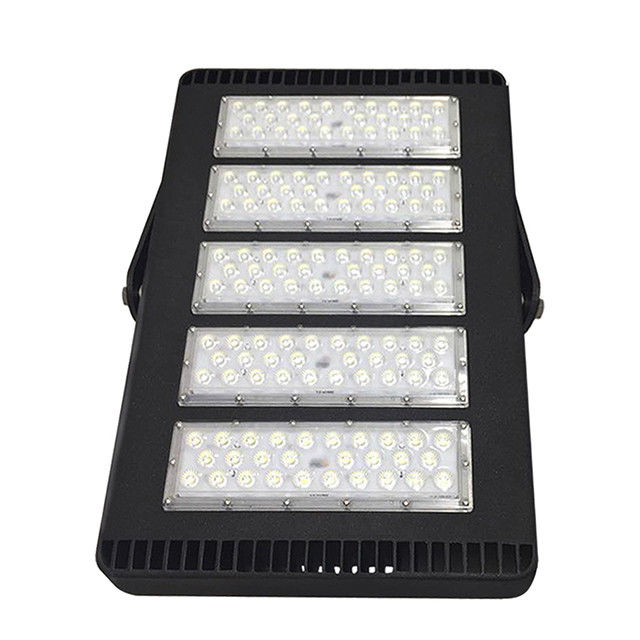

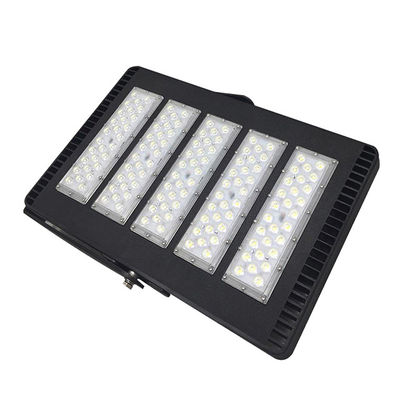

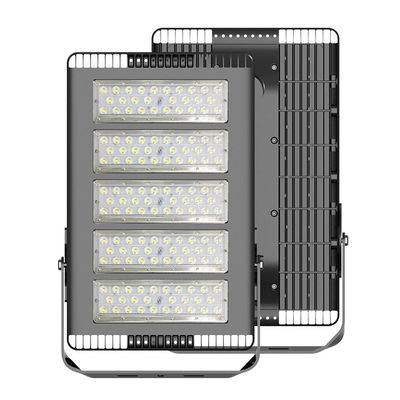

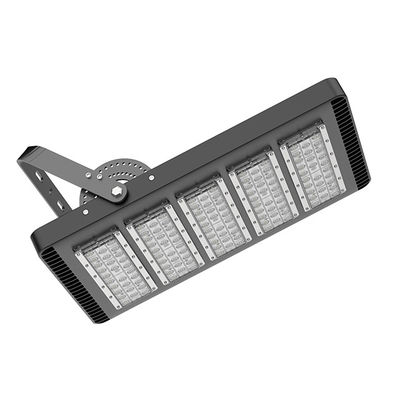

250w IP65 LED Stadium Light 40000 Lumen Sport Field Lighting
250w IP65 LED Flood Light 40000 Lumen For Sport Field
Features:
- Adoption LEYOND exclusive Lens with light transmittance up to 98%.
- Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
- There are 25°,60°, 90° beam angle options for the Lens.
- Scientifically-designed heat dissipater with much better cooling effect.
- High luminous efficiency, Whole lamp output light efficiency >160LM/W.
- High quality power supply, input voltage 100-240V. The power efficiency is more than
90%, power factor greater than 0.98, UL compulsory certification.
- For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation ±7%, the brightness and lifetime will be reduced very fast, but for LEYOND LED Chip, even the voltage fluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over Current, Over Voltage, Over Heat, Thunder Protection.
- Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp.without harm to the human body.
l The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable.
Product Description:
Dimension:
Application Cases:
Installation instructions:
1. Switch off the power supply
2. Make the stadium light on the Bracket
3. Electrical wiring connection
4. Tight the screws
5. Switch ON
Oprations:
• Operation Ambient Temperature -25 to +50°C, Relative Humidity 20~90%
• Input Voltage 100~240V AC, 50/60Hz
• Storage Ambient Temperature -40 to +55°C, Relative Humidity 5~95%
• Mounting Height : Suitable for 6~18m height
(Kindly reminder: All installation steps must handl by professional electrician)
Specification:
Par NO Parameter |
LY-ST45250PW | LY- ST45250WW | LY- ST45250NW |
Inptut voltage | AC90V~305V 50/60HZ | ||
Sysem consumption(W) | 250 | 250 | 250 |
Luminous flux(lm) | 40500 | 40000 | 40000 |
Chip Brand | LUXEON5050 CHIP | LUXEON5050 CHIP | LUXEON5050 CHIP |
Beam Angle |
25°,60°,90° | 25°,60°,90° | 25°,60°,90° |
CRI | >70 | ||
Color Temperature | Warm white:3000K / Neutral white:4000K / Pure white:5000K / Cool white: 5700K | ||
LED Driver | MEAN WELL ELG-240 | ||
Luminous efficiency(lm/w) | >160 | ||
Lifespan(hrs) | >50000 | ||
IP Rating | IP65 | ||
Dimmable | YES&NO | YES&NO | YES&NO |
Size(mm) | 470x340x69 | 470x340x69 | 470x340x69 |
Net Weigh(kg) | 6.4 | 6.4 | 6.4 |
Package Size(mm) | 500*370*100 | 500*370*100 | 500*370*100 |
Package Quantity(Pcs) | 1 | 1 | 1 |
Gross Weigh(kg) | 7.6 | 7.6 | 7.6 |
Applications:
- Sprot field
- Warehouse
- Cold storage
- Square
- Tunnel
- Natatorium
- Gymnasium
Package info:
Inner box Size: 650mm×455mm×150mm
Outer box Size: 670mm×470mm×315mm
Actual pictures:
