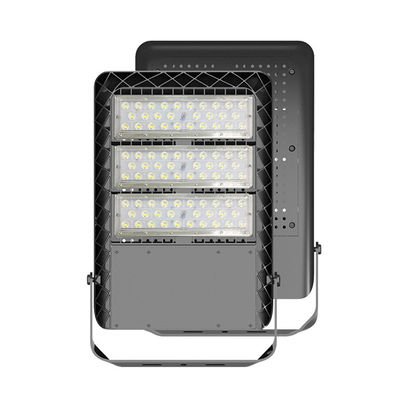

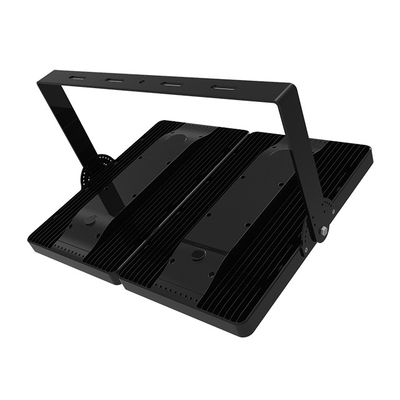

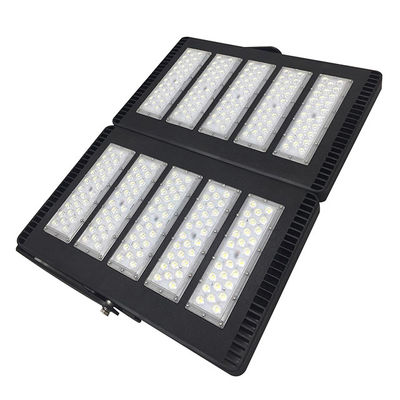

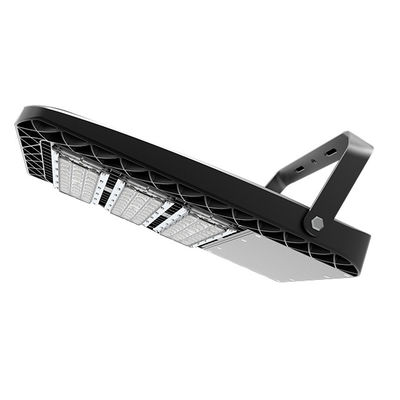

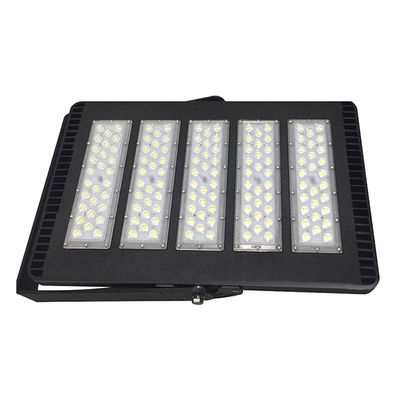

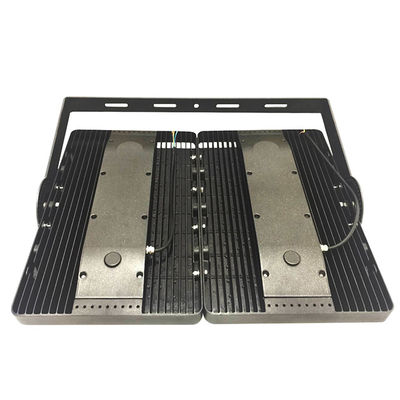

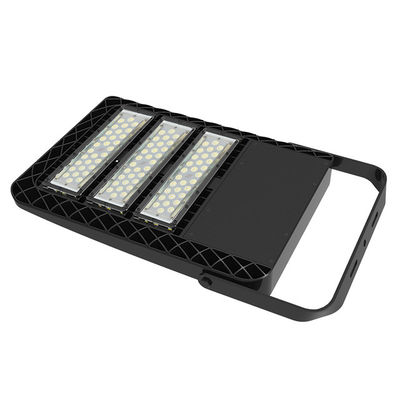

Die Casting Aluminium 100w 150w 250w 500w LED stadium light 165lm/w high efficiency

Die Casting Aluminium 100w 150w 250w 500w LED stadium light 165lm/w high efficiency
Die Casting Aluminium 100w 150w 250w 500w LED stadium light 165lm/w high efficiency Die Casting Aluminium 100w 150w 250w 500w LED stadium light 165lm/w high efficiency Die Casting Aluminium 100w 150w 250w 500w LED stadium light 165lm/w high efficiency Die Casting Aluminium 100w 150w 250w 500w LED stadium light 165lm/w high efficiency Die Casting Aluminium 100w 150w 250w 500w LED stadium light 165lm/w high efficiency Die Casting Aluminium 100w 150w 250w 500w LED stadium light 165lm/w high efficiency Die Casting Aluminium 100w 150w 250w 500w LED stadium light 165lm/w high efficiency

Large Image :  Die Casting Aluminium 100w 150w 250w 500w LED stadium light 165lm/w high efficiency

Product Details:

Place of Origin: Shenzhen China
Brand Name: LEYOND
Certification: TUV CE RoHS CB ENEC GS SAA UL DLC FCC ETL
Model Number: LY-ST45150XX

Payment & Shipping Terms:

Minimum Order Quantity: 10
Price: 80-480 USD/pc
Packaging Details: Standard export carton Carton size:85x71x19cm, 1pc per carton
Delivery Time: 7-10 Working Days
Payment Terms: T/T, Western Union, L/C, MoneyGram
Supply Ability: 300,000 pcs/month
Detailed Product Description
Item: LED Stadium Light LED Source: LUXEON 5050
Power: 100w 150w 250w 500w Luminous: 24000LM
Driver: Meanwell Driver Beam Angle: 25/60/90/160x65 Degree
CCT: 2700-6500K Lifetime: >100000 Hours
Control: Daylight Control, Motion Sensor IP Rated: IP65
Housing Material: Die Casting Aluminum Warranty: 5 Years
Lead Time: 7-10 Working Days Optic: LEDiL
Application: Sport Field / Square / Air Port / Bus Tation / High Pole Light Lamp Color: Black Or Customize
CRI: Ra>70 Package: Inner & Outer
Lighting Solutions: Lighting And Circuitry Design, DIALux Evo Layout Working Temperature: -40-55 Degree Celsius
High Light:

led stadium lighting

,

high power led floodlight

Die Casting Aluminium 100w 150w 250w 500w LED stadium light 165lm/w high efficiency



Features:



- Adoption LEYOND exclusive Lens with light transmittance up to 98%.
- Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
- There are 25°,60°, 90° beam angle options for the Lens.
- Scientifically-designed heat dissipater with much better cooling effect.
- High luminous efficiency, Whole lamp output light efficiency >160LM/W.
- High quality power supply, input voltage 100-240V. The power efficiency is more than
90%, power factor greater than 0.98, UL compulsory certification.
- For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation ±7%, the brightness and lifetime will be reduced very fast, but for LEYOND LED Chip, even the voltage fluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over Current, Over Voltage, Over Heat, Thunder Protection.
- Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp.without harm to the human body.
l The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable.





Product Description:

Die Casting Aluminium 100w 150w 250w 500w LED stadium light 165lm/w high efficiency 0

Die Casting Aluminium 100w 150w 250w 500w LED stadium light 165lm/w high efficiency 1





Dimension:

Die Casting Aluminium 100w 150w 250w 500w LED stadium light 165lm/w high efficiency 2



Application Cases:

Die Casting Aluminium 100w 150w 250w 500w LED stadium light 165lm/w high efficiency 3

Die Casting Aluminium 100w 150w 250w 500w LED stadium light 165lm/w high efficiency 4

Die Casting Aluminium 100w 150w 250w 500w LED stadium light 165lm/w high efficiency 5

Die Casting Aluminium 100w 150w 250w 500w LED stadium light 165lm/w high efficiency 6





Installation instructions:



1. Switch off the power supply

2. Make the stadium light on the Bracket

3. Electrical wiring connection

4. Tight the screws

5. Switch ON





Oprations:



• Operation Ambient Temperature -25 to +50°C, Relative Humidity 20~90%

• Input Voltage 100~240V AC, 50/60Hz

• Storage Ambient Temperature -40 to +55°C, Relative Humidity 5~95%

• Mounting Height : Suitable for 6~18m height



(Kindly reminder: All installation steps must handl by professional electrician)





Specification:



Par NO

Parameter

LY-ST45150PW LY- ST45150WW LY- ST45150NW
Inptut voltage AC90V~305V 50/60HZ
Sysem consumption(W) 150 150 150
Luminous flux(lm) 24050 23050 24000
Chip Brand LUXEON5050 CHIP LUXEON5050 CHIP LUXEON5050 CHIP



Beam Angle

25°,60°,90° 25°,60°,90° 25°,60°,90°
CRI >70
Color Temperature Warm white:3000K / Neutral white:4000K / Pure white:5000K / Cool white: 5700K
LED Driver MEAN WELL ELG-150
Luminous efficiency(lm/w) >160
Lifespan(hrs) >50000
IP Rating IP65
Dimmable YES&NO YES&NO YES&NO
Size(mm) 470x340x69 470x340x69 470x340x69
Net Weigh(kg) 6.4 6.4 6.4
Package Size(mm) 500*370*100 500*370*100 500*370*100
Package Quantity(Pcs) 1 1 1
Gross Weigh(kg) 7.6 7.6 7.6





Applications:



- Sprot field

- Warehouse

- Cold storage

- Square

- Tunnel

- Natatorium

- Gymnasium





Package info:



Inner box Size: 560mm×370mm×100mm

Outer box Size: 580mm×385mm×250mm



Die Casting Aluminium 100w 150w 250w 500w LED stadium light 165lm/w high efficiency 7



Actual pictures:



Die Casting Aluminium 100w 150w 250w 500w LED stadium light 165lm/w high efficiency 8

Die Casting Aluminium 100w 150w 250w 500w LED stadium light 165lm/w high efficiency 9
