100w-500w High Mast LED Stadium Light IP65 IK10 For Sport Field

Certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
Customer Reviews
I am very satisfied with your company in terms of quality.

—— Mr Frank

Hello Ada; I wish you have enoyed your holidays. Yes we tested the sample lamp, and we are very satisfy with the quality.

—— Ms.Valentina

I'm Online Chat Now

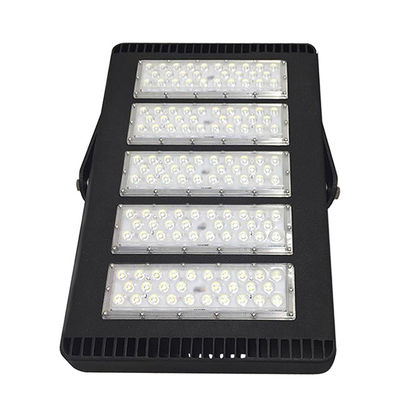

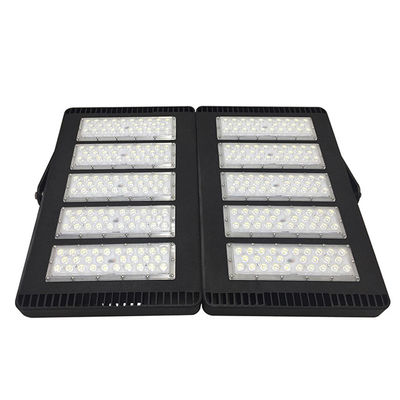

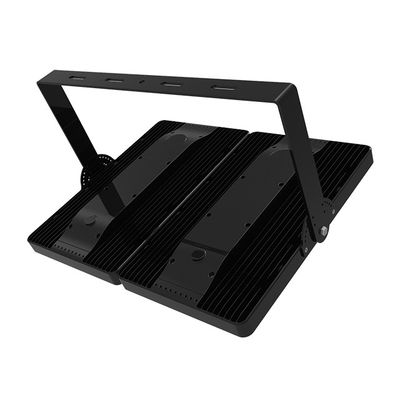

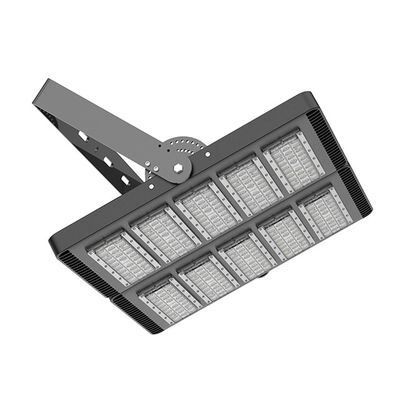

100w-500w High Mast LED Stadium Light IP65 IK10 For Sport Field

100w-500w High Mast LED Stadium Light IP65 IK10 For Sport Field
100w-500w High Mast LED Stadium Light IP65 IK10 For Sport Field 100w-500w High Mast LED Stadium Light IP65 IK10 For Sport Field 100w-500w High Mast LED Stadium Light IP65 IK10 For Sport Field 100w-500w High Mast LED Stadium Light IP65 IK10 For Sport Field 100w-500w High Mast LED Stadium Light IP65 IK10 For Sport Field 100w-500w High Mast LED Stadium Light IP65 IK10 For Sport Field

Large Image :  100w-500w High Mast LED Stadium Light IP65 IK10 For Sport Field

Product Details:

Place of Origin: GuangDong China
Brand Name: Leyond
Certification: TUV, CE, ROHS, CB, ENEC, GS, SAA, UL, DLC
Model Number: LY-ST45480PW

Payment & Shipping Terms:

Minimum Order Quantity: 4pcs
Price: 345$-395$
Packaging Details: Individual carton
Delivery Time: Sample: 3-5working days, Bulk order: 7-10 working days after received the payment
Payment Terms: T/T, Western Union、PayPal, MoneyGram
Supply Ability: 30000pc/month
Detailed Product Description
Power: 500W LED Chip: LUXEON LUMILEDS 5050
Light Efficiency: 160lm/w Beam Angle: 25 / 60 / 90 Degree
LED Driver: Meanwell Warranty: 5 Years
IP Rating: IP65 Material: Diecasting Aluminum
Colour: Black Or Customize Optic: LEDil
IP: 65 IK: 10
CCT: PW CRI: RA>70
AC: 85-265 Lifespan: 10 Years
Certification: TUV CE RoHS CB GS SAA UL DLC Lead Time: 7-10 Days
Lighting Support: Lighting And Circuitry Design, DIALux Evo Layout Package: Inner & Outer
Working Temperature: -40-55 Degree Celsius
High Light:

led stadium lighting

,

led security flood light

100w-500w High Mast LED Stadium Light IP65 IK10 For Sport Field



Features:



- Adoption LEYOND exclusive Lens with light transmittance up to 98%.
- Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
- There are 25°,60°, 90° beam angle options for the Lens.
- Scientifically-designed heat dissipater with much better cooling effect.
- High luminous efficiency, Whole lamp output light efficiency >160LM/W.
- High quality power supply, input voltage 100-240V. The power efficiency is more than
90%, power factor greater than 0.98, UL compulsory certification.
- For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation ±7%, the brightness and lifetime will be reduced very fast, but for LEYOND LED Chip, even the voltage fluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over Current, Over Voltage, Over Heat, Thunder Protection.
- Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp.without harm to the human body.
l The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable.





Product Description:

100w-500w High Mast LED Stadium Light IP65 IK10 For Sport Field 0

100w-500w High Mast LED Stadium Light IP65 IK10 For Sport Field 1

Dimension:

100w-500w High Mast LED Stadium Light IP65 IK10 For Sport Field 2



Application Cases:



100w-500w High Mast LED Stadium Light IP65 IK10 For Sport Field 3

100w-500w High Mast LED Stadium Light IP65 IK10 For Sport Field 4

100w-500w High Mast LED Stadium Light IP65 IK10 For Sport Field 5

100w-500w High Mast LED Stadium Light IP65 IK10 For Sport Field 6





Installation instructions:



1. Switch off the power supply

2. Make the stadium light on the Bracket

3. Electrical wiring connection

4. Tight the screws

5. Switch ON





Oprations:



• Operation Ambient Temperature -25 to +50°C, Relative Humidity 20~90%

• Input Voltage 100~240V AC, 50/60Hz

• Storage Ambient Temperature -40 to +55°C, Relative Humidity 5~95%

• Mounting Height : Suitable for 6~18m height



(Kindly reminder: All installation steps must handl by professional electrician)





Specification:



Par NO

Parameter

LY-ST45500PW LY- ST45500WW LY- ST45500NW
Inptut voltage AC90V~305V 50/60HZ
Sysem consumption(W) 500 500 500
Luminous flux(lm) 32550 32000 32500
Chip Brand LUXEON5050 CHIP LUXEON5050 CHIP LUXEON5050 CHIP



Beam Angle

25°,60°,90° 25°,60°,90° 25°,60°,90°
CRI Ra>70
Color Temperature Warm white:3000K / Neutral white:4000K / Pure white:5000K / Cool white: 5700K
LED Driver MEAN WELL
Luminous efficiency(lm/w) >165
Lifespan(hrs) >50000
IP Rating IP65
Dimmable YES&NO YES&NO YES&NO
Size(mm) 680x540x67 680x540x67 680x540x67
Net Weigh(kg) 19 19 19
Package Size(mm) 845x710x185 845x710x185 845x710x185
Package Quantity(Pcs) 1 1 1
Gross Weigh(kg) 21 21 21





Applications:



- Sprot field

- Warehouse

- Cold storage

- Square

- Tunnel

- Natatorium

- Gymnasium





Package info:



Inner box Size: 845mm×710mm×185mm

100w-500w High Mast LED Stadium Light IP65 IK10 For Sport Field 7

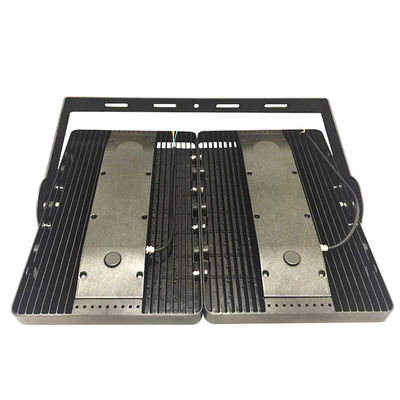

Actual Pictures:



100w-500w High Mast LED Stadium Light IP65 IK10 For Sport Field 8

100w-500w High Mast LED Stadium Light IP65 IK10 For Sport Field 9

100w-500w High Mast LED Stadium Light IP65 IK10 For Sport Field 10

100w-500w High Mast LED Stadium Light IP65 IK10 For Sport Field 11





Related hot selling products:

100w-500w High Mast LED Stadium Light IP65 IK10 For Sport Field 12

1. Sword series LED street light 130w-200w
2. Sword series LED street light 70w-120w
3. Sword series LED street light 20w-60w
4. King series LED street light 80w-200w
5. King series LED street light 20w-60w
6. Integrated All in one Solar LED garden light 40w-100w
7. Integrated All in one Solar LED garden light 10w-30w
8. Fairy LED street light 10w-30w
9. Galaxy series LED street light 30-100w
10. Galaxy series LED street light 110w-200w



100w-500w High Mast LED Stadium Light IP65 IK10 For Sport Field 13



Mr. Pure Zhao (Sales Engineer)
Shenzhen Leyond Lighting Co.,ltd
Web: www.leyond.com.cn

Email: sales15@leyond.com.cn

Mobile/whatsapp: 0086 18675501972
Wechat: 0086 18675501972







FAQ:



- What about the lead time?

A:Sample needs 7 days, mass production time needs 1-2 weeks for order quantity more than

- Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available

- How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

- How to proceed an order for led light?
A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.

- Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

- Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty to our products.

- How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
