Product Details:
Payment & Shipping Terms:
|
| Item: | Street Light 100w | LED Source: | Lumileds 3030 |
|---|---|---|---|
| Watt: | 100w | Lum Efficiency: | >120 Lm/w |
| Driver: | Meanwell Driver | Beam Angle: | 150*70 Degree |
| CCT: | 2700-6500K | Lifetime: | >50000 Hours |
| IP Rated: | IP65 | Housing Material: | Aluminum |
| High Light: | led roadway lighting,led street lamp |
||
01.Feature Of Led Street Light
• High quality power supply,input voltage 100-240V.The power efficiency is more than 88%, power factor>0.98,UL certification.
• Adopting Lepower LED light sources and ZAG lens technology, 8% light efficiency higher than the same type lights in the market, with higher light transmittance up to 98%.
• Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds. Adopting the popular CHEM modular design, effectively reduce the following maintenancecose.
• Low energy consumption, matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current,over-voltage, lightning, high temperature, which fully ensure long life span and high stability of the products.
• Durable lights with long life spn up to 50000hours; No need replace the lights frequently just make the regular maintenance.
• Green environmental protection, no UV light and infrared radiation, no mercury pollution.
• Nice appearance and non-fouling properties, Protection class IP66.
• Work without strobe, fast transient response; A wide range of working voltage.
• 2pcs 1W chips are packaged in one LED, which ensure high stability and also reduce the death rate of the leds.
02.Specification Of Street Lighting Led
|
Par NO Parameter |
LY-ST40100PW | LY- ST40100WW | LY- ST40100NW |
| Inptut voltage | AC90V～305V 50/60HZ | ||
| Sysem consumption(W) | 100 | 100 | 100 |
| Luminous flux(lm) | 16500 | 15500 | 16100 |
|
Chip Brand |
LUXEON 5050 / BRIDGELUX CHIP 5050 |
LUXEON 5050 / BRIDGELUX CHIP 5050 |
LUXEON 5050 / BRIDGELUX CHIP 5050 |
| Beam Angle | 150*65 DEG | 150*65 DEG | 150*65 DEG |
| CRI | ＞70 | ||
| Color Temperature | Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K | ||
| LED Driver | MEAN WELL HLG-100H / ELG-100 | ||
| Luminous efficiency(lm/w) | ＞160 | ||
| Lifespan(hrs) | ＞50000 | ||
| IP Rating | IP65 | ||
| Dimmable | YES＆NO | YES＆NO | YES＆NO |
| Size(mm) | 640x340x69 | 640x340x69 | 640x340x69 |
| Net Weigh(kg) | 6.8 | 6.8 | 6.8 |
| Package Size(mm) | 670*370*100 | 670*370*100 | 670*370*100 |
| Package Quantity(Pcs) | 1 | 1 | 1 |
| Gross Weigh(kg) | 8.0 | 8.0 | 8.0 |
03.Structure Of Led Street Lighting Fixtures
04.Outlook Of Street Light Led

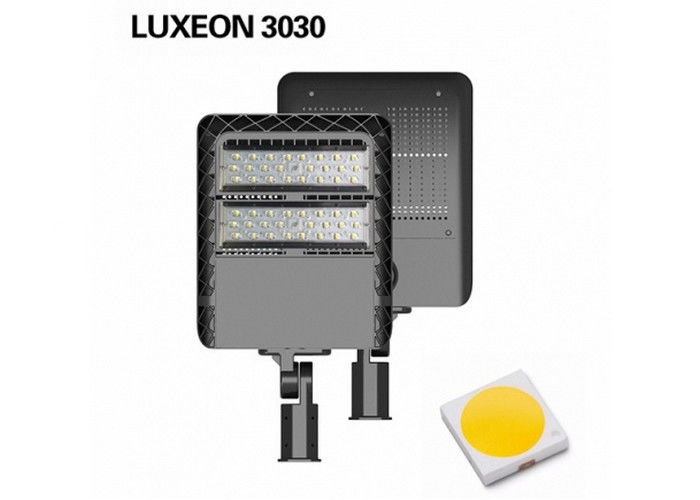

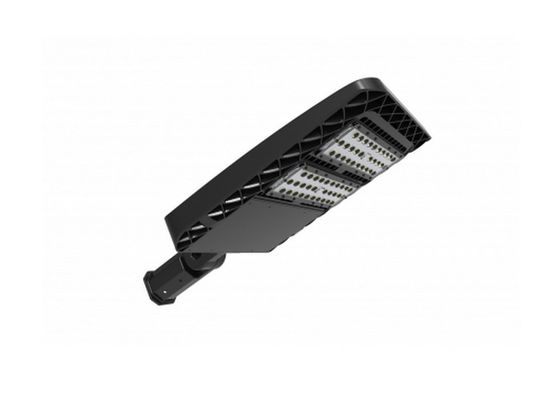

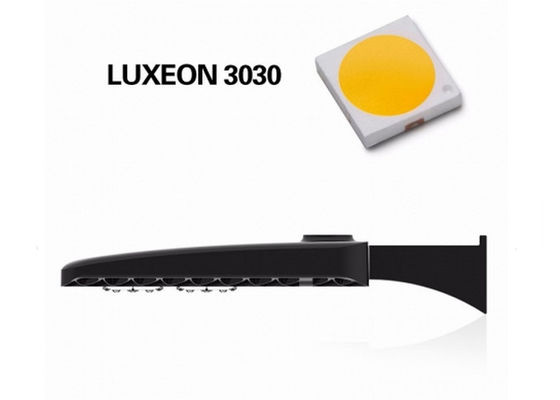

05.Product Picture Of Outdoor Led Street Light
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 3 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. Fordefective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
