IP66 Outdoor Waterproof High Power LED Street Lighting Meanwell Driver Die-casting Housing

Certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
Customer Reviews
I am very satisfied with your company in terms of quality.

—— Mr Frank

Hello Ada; I wish you have enoyed your holidays. Yes we tested the sample lamp, and we are very satisfy with the quality.

—— Ms.Valentina

I'm Online Chat Now

IP66 Outdoor Waterproof High Power LED Street Lighting Meanwell Driver Die-casting Housing

large.img.alt
small.img.alt small.img.alt small.img.alt small.img.alt

Large Image :  IP66 Outdoor Waterproof High Power LED Street Lighting Meanwell Driver Die-casting Housing

Product Details:

Place of Origin: China
Brand Name: LEYOND
Certification: CE RoHS LVD EMC
Model Number: LY-ST60150XX

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable 70-75USD
Packaging Details: H*W*L
Delivery Time: 5-15 Days
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 30000 Pcs /Month
Detailed Product Description
Working Lifetime(hour): 50000,55500 Lamp Luminous Flux(lm): 16500,3000
Application: Outdoor,Highway Product Name: Solar Street Light
Lamp Luminous Efficiency(lm/w): 100,160 Beam Angle(°): 120,140
High Light:

outdoor led street light

,

led roadway lighting

IP66 Outdoor Waterproof High Power LED Street Lighting Meanwell Driver Die-casting Housing



01.Specification of  Led Street Light



Input Voltage

AC100-305V 50/60HZ

System Consumption(w)

150

150

150

Luminous Flux(lm)

25125

22500

24094

Chip Brand

Luxeon5050/Leyond5050

Luxeon5050/Leyond5050

Luxeon5050/Leyond5050

Color Temperature

PW 5000-6500K

WW 2700-3200K

NW 4000-4500K

CRI

>70

Beam Angle

150*60 DEG

LED Driver

MEANWELL XLG-200

Luminous Efficiency(lm/w)

>160

Lifespan(hrs)

>50000

IP Rating

IP66

Dimmable

YES&NO

YES&NO

YES&NO

Size(mm)

394*220*128

394*220*128

394*220*128

Net Weight(kg)

3.6

3.6

3.6

Package Size(mm)

430*250*180

430*250*180

430*250*180



 02. Feature Of  Led Street Lamp



1.Absolutely unique mold, make your lighting special and fantastic.


2.The appearance of body:aluminum alloy die-casting



3.Pefect Light Distribion solution: Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.


4. Anti-glare and uniform light leve to avoid any visual discomfort.


5.Adopting LUXEON 5050 led ligh surces and Leyond Lens technology, higher light transmittance up to 93%.



6.The Power supply is designed to be portable and easy to construct and maintain. Easy to disassemble and assemble You can easily open and cover up the housing with your hands,don't need any additional tools.



7.Dust and snow proof,Adopt smooth die-cast aluminum housing successfully prevent the dust and snow from acumulating on the housing,thus better heat dissipation and longer life span.



8.High quality power supply, input voltage 100-305V, The Power efficiency is more than 90%,Power factor greater than 0.98.



9.Durable lights with long life span up to 50000 hours, No need frequent replacements of lights and regular maintenance.



10.Green environmental protection,no UV light and infrared radiation.no mercury pollution.


11.Nice appearance and non-fouling properties, Protection class IP66.

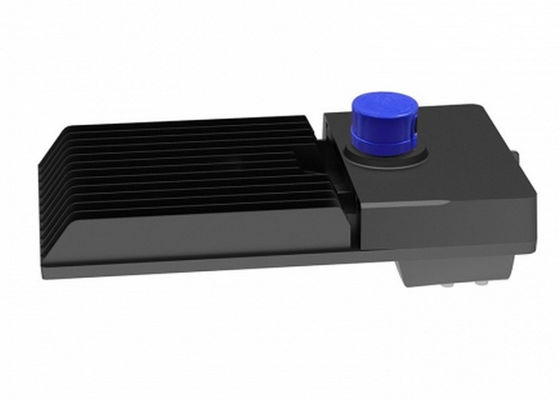

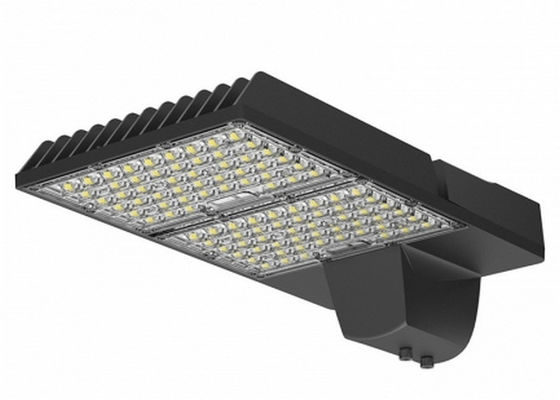

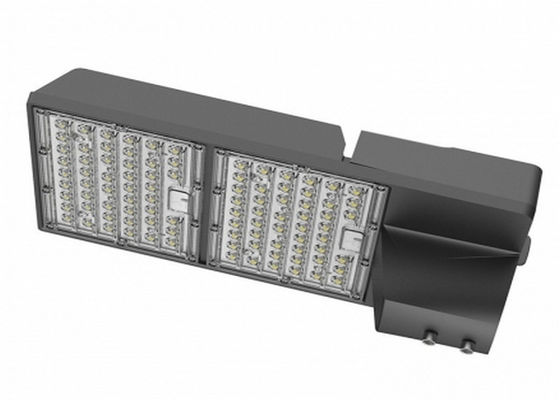

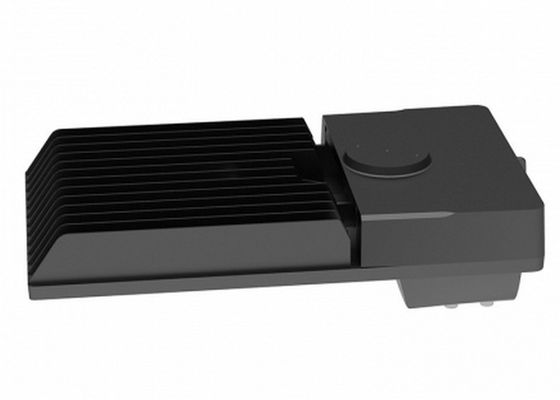

03. Product Pictures of Outdoor Led Street Lights



IP66 Outdoor Waterproof High Power LED Street Lighting Meanwell Driver Die-casting Housing 0



04. Dimesion of High Power Led Street Light



IP66 Outdoor Waterproof High Power LED Street Lighting Meanwell Driver Die-casting Housing 1

FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time?

A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than



Q3. Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available



Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.



Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.



Q6. Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q7: Do you offer guarantee for the products?

A: Yes, we offer 3 years warranty to our products.



Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. Fordefective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
