IP66 Waterproof Tempered Glass Cover Led Street Light 60W 140lm/w AC90-305V

Certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
Customer Reviews
I am very satisfied with your company in terms of quality.

—— Mr Frank

Hello Ada; I wish you have enoyed your holidays. Yes we tested the sample lamp, and we are very satisfy with the quality.

—— Ms.Valentina

I'm Online Chat Now

IP66 Waterproof Tempered Glass Cover Led Street Light 60W 140lm/w AC90-305V

IP66 Waterproof Tempered Glass Cover Led Street Light 60W 140lm/w AC90-305V
IP66 Waterproof Tempered Glass Cover Led Street Light 60W 140lm/w AC90-305V IP66 Waterproof Tempered Glass Cover Led Street Light 60W 140lm/w AC90-305V IP66 Waterproof Tempered Glass Cover Led Street Light 60W 140lm/w AC90-305V IP66 Waterproof Tempered Glass Cover Led Street Light 60W 140lm/w AC90-305V

Large Image :  IP66 Waterproof Tempered Glass Cover Led Street Light 60W 140lm/w AC90-305V

Product Details:

Place of Origin: Shenzhen, China
Brand Name: LEYOND
Certification: CE RoHS CB TUV ENEC
Model Number: LY-ST50060PW

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: 7-10 Working days
Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 5000pcs/week
Detailed Product Description
Power: 60W Housing Material: Aluminum Alloy
Housing Color: Grey Or Black LED Chip: Luxeon 5050 Led
Driver: Meanwell HLG-60H-48A Lifespan(hrs): >50000
High Light:

led roadway lighting

,

led street lamp

Tempered Glass Cover Led Street Light 60W 140lm/w AC90-305V





1. Specification of Led Street Light 60W:





Par NO

Parameter

LY-ST50060PW LY-ST50060NW LY-ST50060WW
Input voltage AC100V~240V 50/60HZ
System consumption(W) 60 60 60
Luminous flux(lm) 8400 8000 7600
Chip Brand

LUXEON 5050

LEYOND 5050

LUXEON 5050

LEYOND 5050

LUXEON 5050

LEYOND 5050

CRI >75
Color Temperature WW:2700-3200K / NW:4000-4500K / PW:5000-6500K
Lifespan(hrs) >50000
Luminous efficiency(lm/w) >140
Dimmable YES&NO YES&NO YES&NO
IP Rating IP65
Net Weigh(kg) 4.9 4.9 4.9
Size(mm) 619*240*139 619*240*139 619*240*139



2. Dimension of Led Street Light 60W:

IP66 Waterproof Tempered Glass Cover Led Street Light 60W 140lm/w AC90-305V 0


3. Application of Led Street Light 60W:



Suitable for the highways,urban roads and secondary roads,stadiums,sidewalks,residential areas,industrial areas,squares,parks,schools,villas,gardens and other places.



4. Features of Led Street Light 60W:



• High quality power supply,input voltage 90-305V.The power efficiency is more than 88%, power factor>0.98,UL certification.

• Adopting Luxeon 5050 led and ZAG lens technology, 8% light efficiency higher than the same type lights in the market, with higher light transmittance up to 98%.

• Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds. Adopting the popular CHEM modular design, effectively reduce the following maintenancecose.

• Low energy consumption, matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current,over-voltage, lightning, high temperature, which fully ensure long life span and high stability of the products.

• Durable lights with long life spn up to 50000hours; No need replace the lights frequently just make the regular maintenance.

• Green environmental protection, no UV light and infrared radiation, no mercury pollution.

• Nice appearance and non-fouling properties, Protection class IP66.
• Work without strobe, fast transient response; A wide range of working voltage.
• Luxeon 5050 led chips are adopted, which ensure high stability and also reduce the death rate of the leds





5. Distribution Curve of Led Street Light 60W:

IP66 Waterproof Tempered Glass Cover Led Street Light 60W 140lm/w AC90-305V 1

IP66 Waterproof Tempered Glass Cover Led Street Light 60W 140lm/w AC90-305V 2





5. Operation and Storage Condition:

Operation Ambient Temperature -30 to +50°C, Relative Humidity 20~90%

Input Voltage 90~305V AC, 50/60Hz

Storage Ambient Temperature -30 to +60°C, Relative Humidity 5~95%

Mounting Height : Suitable for 6~10m height





6. Package:

Inner box Size: 660mm×280mm×190mm

Outer box Size: 680mm×295mm×420mm (2 PCS LED Street Light)

IP66 Waterproof Tempered Glass Cover Led Street Light 60W 140lm/w AC90-305V 3





8. Assembly-Electricity:

IP66 Waterproof Tempered Glass Cover Led Street Light 60W 140lm/w AC90-305V 4



9. Mounting Section:

IP66 Waterproof Tempered Glass Cover Led Street Light 60W 140lm/w AC90-305V 5





10. Warning:

Do Not Use Other Devices for LED Street Light ,Installation Such as Stabilizer, Regulator …etc

Do Not Open the Light Engine

Do Not Soak the LED Street Light into Water

Do Not Light up the System Without Grounding

1-10V dimming need to be customized





11. Detail Pictures:

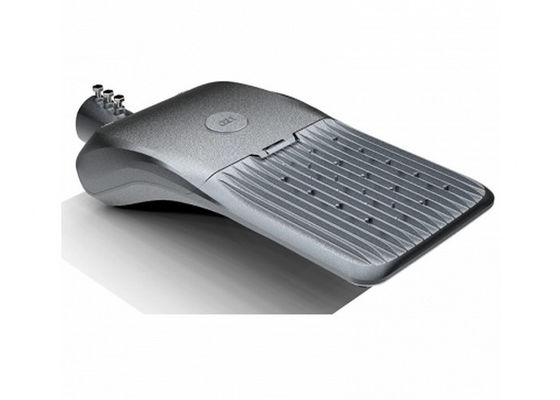

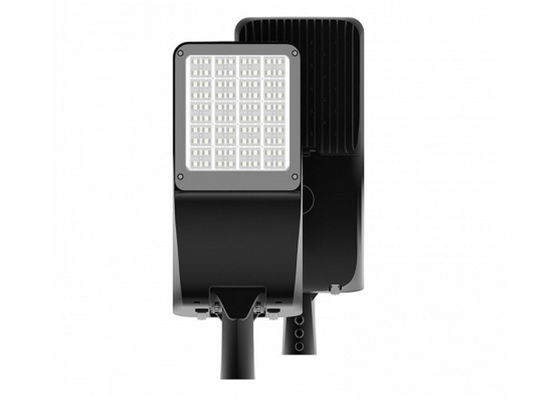

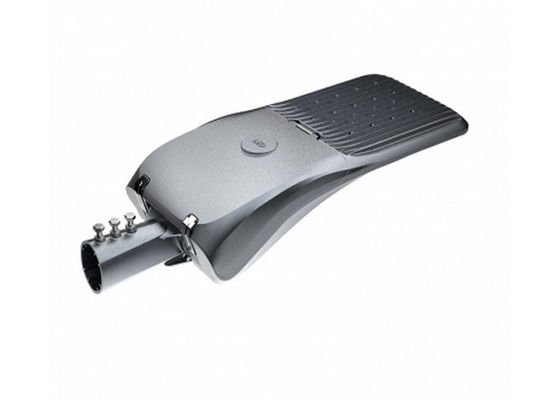

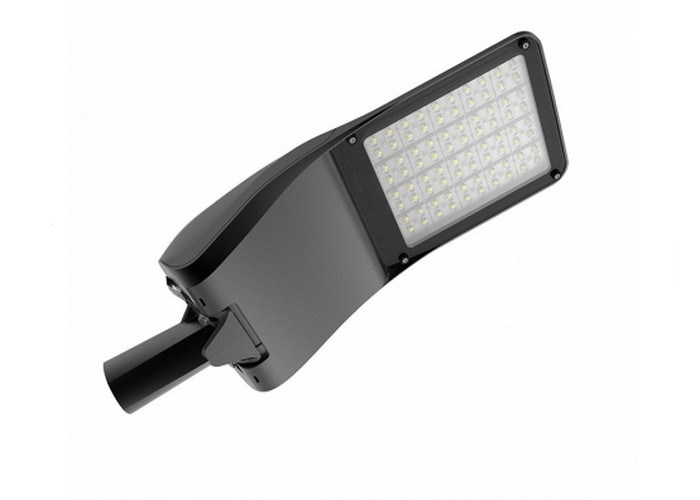

IP66 Waterproof Tempered Glass Cover Led Street Light 60W 140lm/w AC90-305V 6

IP66 Waterproof Tempered Glass Cover Led Street Light 60W 140lm/w AC90-305V 7

IP66 Waterproof Tempered Glass Cover Led Street Light 60W 140lm/w AC90-305V 8





FAQ:

1. May I have a sample for the light please?
--- Sure,mixed power is also support.

2. How many watts does this light provide?
--- 80w, 100w,120w, 150w, 180w

3. Which shipping way do you have?
--- DHL, FEDEX, UPS and TNT are all support. By sea or by air can be available based on your request.

4. What is your warranty?
--- We are provide 3-5 years warranty which based on different materials.

5. What is the delivery time?
--- Normally, 5-7 days for sample, 15-20 days for bulk order. If on special condition, the delivery time can be discussed.

6. Do you make OEM ?
--- Yes, OEM orders are warmly welcomed.

7. Are you the manufacturer?
--- Yes, we are professional manufacturer for led lighting since 2008. And have completed design-delelop-sales-service system.
