Product Details:
Payment & Shipping Terms:
|
| Item: | 180W LED Canopy Light | Input Voltage: | 85-265V AC |
|---|---|---|---|
| Chip: | Lumileds Luxeon 5050 Chip | Driver: | Meanwell ELG-200 Driver |
| IP Rate: | IP66 | Lifespan: | 50000 Hours |
| High Light: | canopy led lights,led canopy lighting |
||
160lm/w LED Canopy Lights 120W/150W/180W IP65 For Gas Station Lighting Projects
1. Specification
| Model No. | LY-YL20180PW | LY-YL20180NW | LY-YL20180WW |
| Inptut Voltage | AC100-305V 50/60HZ | ||
| Power | 180W | 180W | 180W |
| Luminous Flux | 28800lm | 28000lm | 27000lm |
| Chip Brand | LUXEON 5050 | LUXEON 5050 | LUXEON 5050 |
| Color Temperature | 5500-6000K | 4000-4500K | 2700-3200K |
| Luminous Efficiency | >160lm/w | >155lm/w | >150lm/w |
| Power Factor | >0.98 | ||
| Beam Angle | 85 DEG | ||
| LED Driver | MEAN WELL ELG-200 | ||
| Surge Protection | 6KV | ||
| CRI | >80 | ||
| Lifespan | >50000hrs | ||
| IP Rating | IP66 | ||
| Dimmable | YES&NO | ||
| Size(mm) | 383*383*61 | ||
| Net Weight | 5.8kg | ||

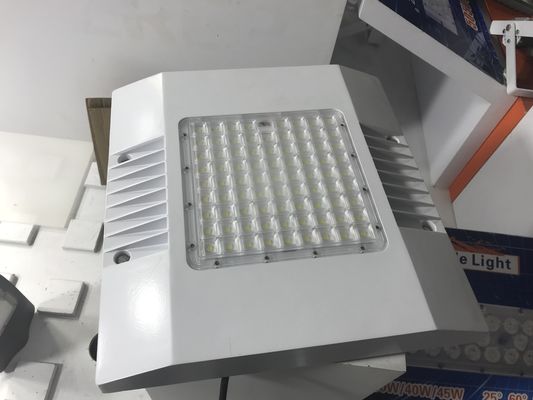

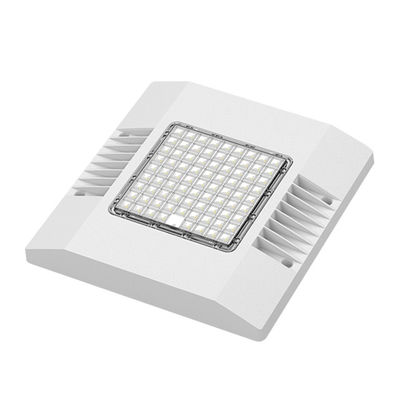

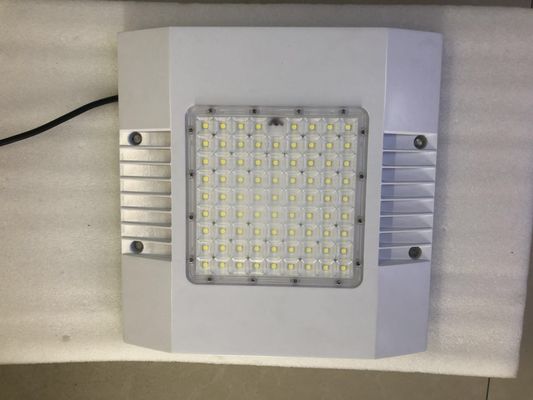

2. Outlook
3. Features
>>Absolutely unique mold,make your lighting special and fantastic.
>>Using LUXEON 5050 led chip to ensure high lumen and long life. Whole lamp output light effiency >160LM/W.
>>LEYOND exclusive Lens with light transmittance up to 98%.
>>Adopting aluminum alloy die-casting ensure good heat dissipation,lower luminous decay, and also extend life span of the leds.
>>Seals using silicone rubber, oil proof, aciduric, alkali fast, fire resistant.The unit construction of lamp adopt waterproof and dustproof design, It can meet the indoor and outdoor needs .
>>Perfect Light Distribution Solution: Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
>>High luminous efficiency , High quality power supply, input voltage 100-305V. The power efficiency is more than 90%, power factor greater than 0.98.
>>The whole lamp with the powder coating is brighter, without fading and corrosion.
>>Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.
>>The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable.
4. Package

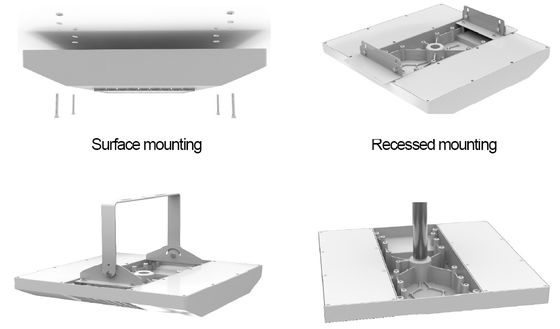

5. Installation Instruction
6. Assembly-Electricity
