Product Details:
Payment & Shipping Terms:
|
| Product Name: | LED Gas Station Light 100W | LED Chip: | Lumileds 5050 |
|---|---|---|---|
| LED Driver: | Meanwell ELG-100 | Warranty: | 5 Years |
| Light Efficiency: | 160lm/w | Housing Material: | Aluminium Alloy |
| Optical Lens: | 85 Degree | Certificate: | Tuv CE Rohs CB GS SAA UL DLC SASO NOM |
| Lamp Colour: | Powder White | CRI: | 70 |
| Input Voltage: | 100-277vac | Lead Time: | 7-10 Days |
| Package: | Inner & Outer | CCT: | 3000K 4000K 5000K 5700K |
| Lighting Solution: | Lighting And Circuitry Design, DIALux Evo Layout | Life Span: | 50000H |
| IP: | 65 | Working Temperature: | -40-55 Degree Celsius |
| Explosion Proof: | Yes | Applications: | Gas Station / Ware House / Cold Storage / Tunel |
| Installtion Method: | Surface Mounted / Recessed / Bracket / Tube | Emergency: | Extendable |
| Motion Sensor: | Extendable | ||
| High Light: | Lumileds 5050 Gas Station Light,IK10 Gas Station Light,IK10 Gas Station LED Lights |
||
Explosion Proof IP66 IK10 Lumileds 5050 Gas Station Light 50w 100w 120w
Gas Station Light High Efficiency 50w 100w 120w 160lm/w Explosion Proof IP66 IK10
Features:
• Using LUXEON 5050 led chip to ensure high lumen and long life. Whole lamp output light effiency >160LM/W.
• Adoption LEYOND exclusive Lens with light transmittance up to 98%.
• Seals using silicone rubber, oil proof, aciduric, alkali fast, fire resistant.The unit construction of lamp adopt waterproof and dustproof design, It can meet the indoor and outdoor needs.
• Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
• There are 85°beam angle for your optional, optimized light distribution design solution.
• High luminous efficiency, High quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.
• The whole lamp with the powder coating is brighter, without fading and corrosion.
• Impact Resistance, Shock-proof, IK10. Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.
• The CCT of Warm white, Neutral white, Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable.
Specification:
|
Par NO Parameter |
LY-YL20100PW | LY- YL20100WW | LY- YL20100NW |
| Inptut voltage | AC100V～240V 50/60HZ | ||
| Sysem consumption(W) | 100 | 100 | 100 |
| Luminous flux(lm) | 16500 | 16000 | 16300 |
| Chip Brand | LUXEON 5050 | LUXEON 5050 | LUXEON 5050 |
| Color Temperature | Pure white:5000-6500K | Warm white:2700-3200K | Neutral white:4000-4500K |
| CRI | ＞70 | ||
| Beam Angle | 85 DEG | ||
| LED Driver | MEAN WELL ELG-100 | ||
|
Luminous efficiency(lm/w) |
＞165 |
||
| Lifespan(hrs) | ＞50000 | ||
| IP Rating | IP65 | ||
| Dimmable | YES＆NO | YES＆NO | YES＆NO |
| Size(mm) | 383x383x61 | 383x383x61 | 383x383x61 |
| Net Weigh(kg) | 5.8 | 5.8 | 5.8 |
| Package Size(mm) | 428*428*125 | 428*428*125 | 428*428*125 |
| Package Quantity(Pcs) | 1 | 1 | 1 |
| Gross Weigh(kg) | 6.6 | 6.6 | 6.6 |
Product descreption:
Dimension:

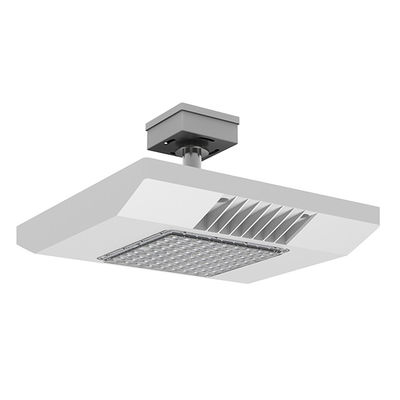

Installation method:
Application cases:

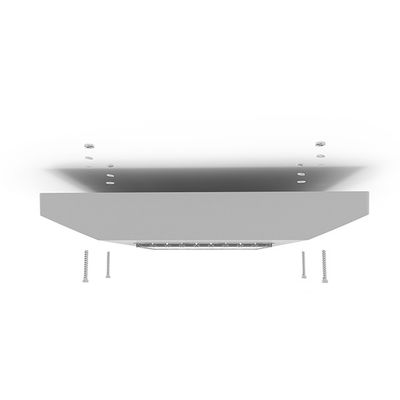

Installation instructions:
1. Switch off the power supply
2. Hole cutting of the ceiling board
3. Make the canopy light in the hole
4. Electrical wiring connection
5. Tight the screws
6. Switch ON
Oprations:
• Operation Ambient Temperature -25 to +50°C, Relative Humidity 20~90%
• Input Voltage 100~240V AC, 50/60Hz
• Storage Ambient Temperature -40 to +55°C, Relative Humidity 5~95%
• Mounting Height : Suitable for 6~18m height
(Kindly reminder: All installation steps must handl by professional electrician)
Distribution Curve:
Applications:
- Gas station
- Warehouse
- Cold storage
- Over pass
- Tunnel
- Natatorium
- Gymnasium
Package info:
Inner box Size: 428mm×428mm×125mm
Outer box Size: 450mm×450mm×290mm
Actual pictures:
FAQ:
