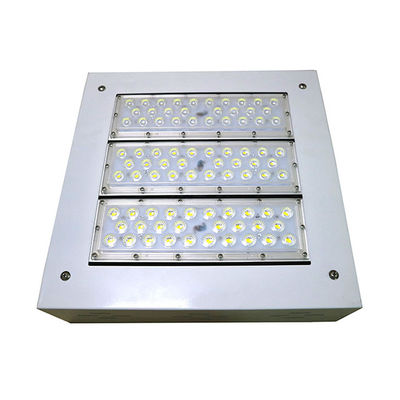

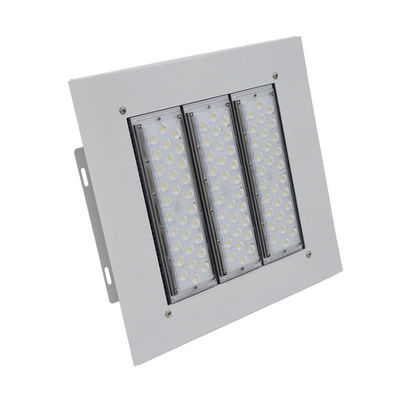

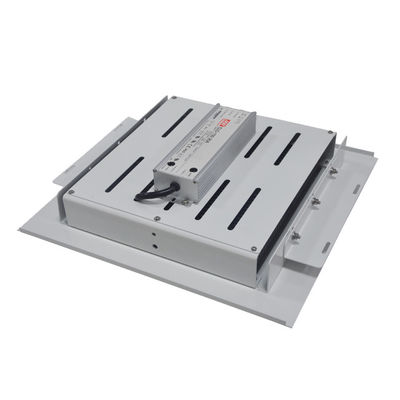

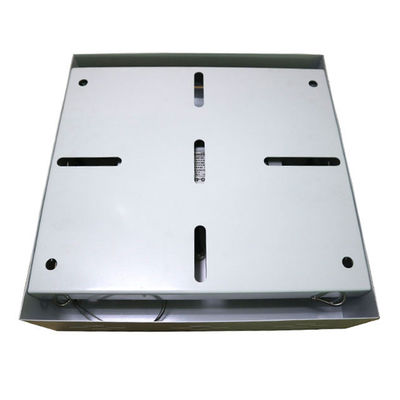

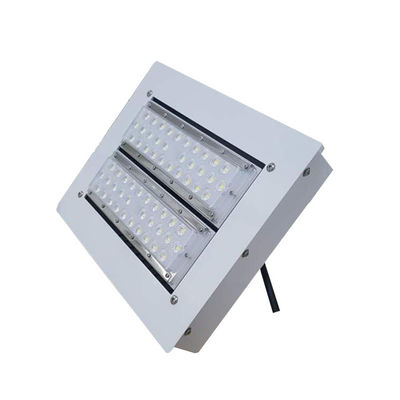

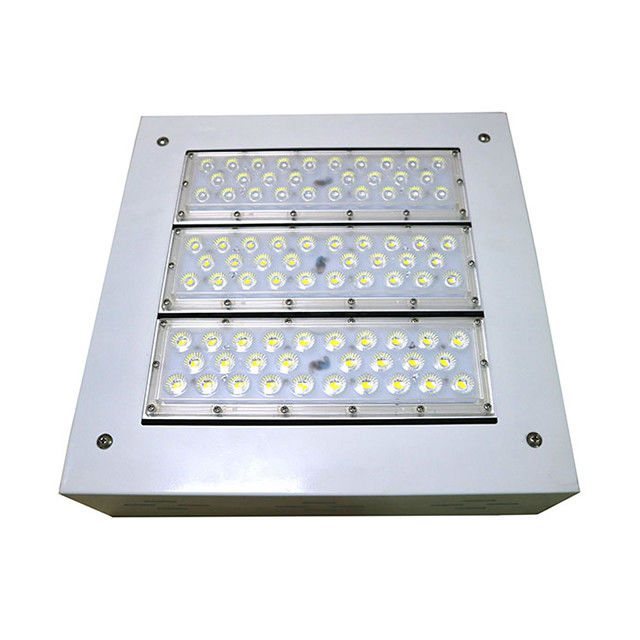

Large Image :  High Bright 150w LED Canopy Lights IP65 Exlposion Proof Ceiling Installation

Product Details:

Place of Origin: Guangdong China
Brand Name: Leyond
Certification: TUV, CE, RoHS CB, GS, SAA, ENEC, UL, DLC, SASO
Model Number: LY-YL15150XX

Payment & Shipping Terms:

Minimum Order Quantity: 20pcs
Price: 80-90 us$/pc
Packaging Details: 43×43×35cm (2 PCS/CTN)
Delivery Time: sample: 3-5working days, Bulk order production:10-15working days
Payment Terms: Western Union, T/T,PayPal,
Supply Ability: 30000pcs/Month
Detailed Product Description
Power: 150W LED Chip: Luxeon Lumileds 5050
LED Driver: Meanwell ELG-150-48A Warranty: 5 Years
Light Efficiency: 165lm/w Housing Material: Aluminium Alloy
Optical Lens: 25/60/90 Degree Certificate: Tuv CE Rohs CB GS SAA UL DLC SASO NOM
Lead Time: 7-10 Days Lamp Colour: White Or Customized
CCT: 3000K/4000K/5000K/6000K CRI: Ra>70
Input Voltage: 100-240vac Package: Inner & Outer
Explosion Proof: Yes Installation Method: Surface Mounted / Recessed
Motion Sensor: Extendable Emergency Kit: Extendable
Lifespan: 50000H Working Temperature: -40-55 Degree Celsius
Application: Gas Station / Ware House / Cold Storage / Tunel
High Light:

150w LED Canopy Lights

,

IP65 150w LED Canopy Light

,

IP65 150w LED Ceiling Light

High Bright 150w LED Canopy Lights IP65 Exlposion Proof Ceiling Installation



150w High Bright IP65 Explosion Proof Ceiling Installation LED Canopy Light For Gas Station



Features:



• Using LUXEON 5050 led chip to ensure high lumen and long life. Whole lamp output light effiency >160LM/W.



• Adoption LEYOND exclusive Lens with light transmittance up to 98%.



• Seals using silicone rubber, oil proof, aciduric, alkali fast, fire resistant.The unit construction of lamp adopt waterproof and dustproof design, It can meet the indoor and outdoor needs.



• Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.



• There are 85°beam angle for your optional, optimized light distribution design solution.



• High luminous efficiency, High quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.



• The whole lamp with the powder coating is brighter, without fading and corrosion.



• Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.



• The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable



Product descreption:



High Bright 150w LED Canopy Lights IP65 Exlposion Proof Ceiling Installation 0



Dimension:

High Bright 150w LED Canopy Lights IP65 Exlposion Proof Ceiling Installation 1



Installation method:



High Bright 150w LED Canopy Lights IP65 Exlposion Proof Ceiling Installation 2



Application cases:



High Bright 150w LED Canopy Lights IP65 Exlposion Proof Ceiling Installation 3

High Bright 150w LED Canopy Lights IP65 Exlposion Proof Ceiling Installation 4

High Bright 150w LED Canopy Lights IP65 Exlposion Proof Ceiling Installation 5



Installation instructions:



1. Switch off the power supply

2. Hole cutting of the ceiling board

3. Make the canopy light in the hole

4. Electrical wiring connection

5. Tight the screws

6. Switch ON



Oprations:



• Operation Ambient Temperature -25 to +50°C, Relative Humidity 20~90%

• Input Voltage 100~240V AC, 50/60Hz

• Storage Ambient Temperature -40 to +55°C, Relative Humidity 5~95%

• Mounting Height : Suitable for 6~18m height



(Kindly reminder: All installation steps must handl by professional electrician)


Specification:



Specification
Power 150w
Material Aluminum
Type Of Chip Lumileds 5050
Brand Meanwell ELG-150
Luminous >24750 LM
ColorTemperature 2700 ~ 6500K
CRI Ra ≥ 70
BeamAngle 25°/ 60°/ 90°
Total Harmonic Distortion(THD) <15%
PF >0.95
Working Life ≥ 50000 hrs
Warranty 5 years
Finishing Color White
Wire connection L(Brown);N(Blue);G(Green/Yellow)
Watts option 150w
NET Weight 7.9 Kgs
Lamp Size 400x400x98mm
Install type Recessed,Hanging rod,Mounted
Package Size box size: 500X500X140MM G.W: 8.3kg inner carton





Distribution Curve:



High Bright 150w LED Canopy Lights IP65 Exlposion Proof Ceiling Installation 6



Applications:



- Gas station

- Warehouse

- Cold storage

- Over pass

- Tunnel

- Natatorium

- Gymnasium





Package info:



Inner box Size: 500mm×500mm×140mm

Outer box Size: 520mm×520mm×350mm



High Bright 150w LED Canopy Lights IP65 Exlposion Proof Ceiling Installation 7

High Bright 150w LED Canopy Lights IP65 Exlposion Proof Ceiling Installation 8



Actual pictures:



High Bright 150w LED Canopy Lights IP65 Exlposion Proof Ceiling Installation 9

High Bright 150w LED Canopy Lights IP65 Exlposion Proof Ceiling Installation 10

High Bright 150w LED Canopy Lights IP65 Exlposion Proof Ceiling Installation 11

High Bright 150w LED Canopy Lights IP65 Exlposion Proof Ceiling Installation 12

High Bright 150w LED Canopy Lights IP65 Exlposion Proof Ceiling Installation 13
