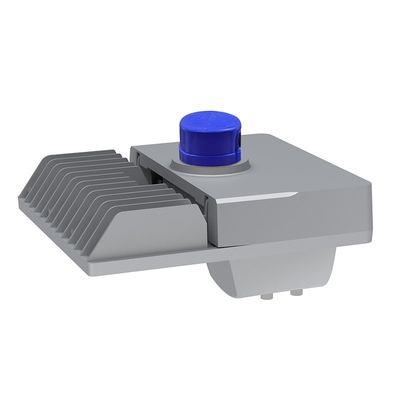

Lumileds 5050 SMD Street Lighting Led IP68 IK10 80 120 180 Watt Edge Simple Design

Certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
Customer Reviews
I am very satisfied with your company in terms of quality.

—— Mr Frank

Hello Ada; I wish you have enoyed your holidays. Yes we tested the sample lamp, and we are very satisfy with the quality.

—— Ms.Valentina

I'm Online Chat Now

Lumileds 5050 SMD Street Lighting Led IP68 IK10 80 120 180 Watt Edge Simple Design

large.img.alt
small.img.alt

Large Image :  Lumileds 5050 SMD Street Lighting Led IP68 IK10 80 120 180 Watt Edge Simple Design

Product Details:

Place of Origin: Guangdong, China
Brand Name: LEYOND
Certification: CE RoHS,CB,ENEC, GS, SAA, NOM, UL, DLC
Model Number: LY-ST600150-XX

Payment & Shipping Terms:

Minimum Order Quantity: 50 pcs
Price: Negotiable
Packaging Details: Standard Export Packing: inner carton+outer carton
Delivery Time: 5-7 days for samples
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 30000 pcs/month
Detailed Product Description
Power: 120w LED Chip: Lumileds 5050 SMD
LED Driver: Inventronic EUM 0-10v IP Rating: IP66
CCT: 2700-6500K Warranty: 5 Years
Beam Angle: 150X65 Package: 75cm×40cm×23cm (2 PCS )
GW: 2.8kg Luminous Flux: 9600lm
Dimmable: LORA NEMA CRI: >80
Pole Diameter: 60mm
High Light:

outdoor led street light

,

led roadway lighting

160lm/W 60-180w Cube series Led Street Light





Product Description:


1. Save 80% more energy compared with traditional lighting fixtures



2. Easy to install and use, secure and reliable



3. No UV or RF interference, No mercury or lead



4. Light body is made of good quality die casting aluminum, exiguity and unique design, excellent heat dissipation



5. long life span>50000hrs



6. High brightness, low consumption, green for environment



7. AC85-305V in different countries and regions.AC12/24V led driver is also available



8. Potection grade is IP65





Dimension:

Lumileds 5050 SMD Street Lighting Led  IP68 IK10 80 120 180 Watt Edge Simple Design 0



Specification:


Model Inptut voltage Sysem consumption Luminous flux Chip Brand Beam Angle
LY-ST60080PW AC100V~240V
50/60HZ
80W 12900lm 5050 150*65°
LY-ST60080WW 12800lm
LY-ST60080NW 12850lm



Model CRI Color Temperature LED Driver Luminous efficiency Lifespan IP Rating
LY-ST60080PW >80 WW:2700-3200K
NW:4000-4500K
PW:5000-6500K
MEAN WELL
ELG-100
>160lm/W >50000h IP66
LY-ST60080WW
LY-ST60080NW





Model Dimmable Size(mm) Net Weight Package Size(mm) Gross Weight
LY-ST60080PW YES&NO 642x290x120 2.8kg 720*370*200 4.0
LY-ST60080WW
LY-ST60080NW





Aging Test:
Lumileds 5050 SMD Street Lighting Led  IP68 IK10 80 120 180 Watt Edge Simple Design 1

Lumileds 5050 SMD Street Lighting Led  IP68 IK10 80 120 180 Watt Edge Simple Design 2

Lumileds 5050 SMD Street Lighting Led  IP68 IK10 80 120 180 Watt Edge Simple Design 3

























































































































installing:

Lumileds 5050 SMD Street Lighting Led  IP68 IK10 80 120 180 Watt Edge Simple Design 4





















































































































effect:



Our Services:



MOQ: 2pcs



Port: Shenzhen, Zhongshan, Guangzhou



Sample availability: Yes



Supply capability: 1000 pcs/day



Payment: T/T, Western Union, Paypal.



Shipment: ocean or air transportation, international express



Normal lead time: 5days for sample order;10 days for production order



Payment condition: 30% before production, 70%before delivery
