Product Details:
Payment & Shipping Terms:
|
| Product Name: | 80W-100W Split Solar LED Street Lights | Light Source: | Luxeon 5050 |
|---|---|---|---|
| Solar Panel: | 120W /18V Monocrystalline Silicon | Battery: | 18650 Lithium Battery 12V 100Ah |
| Beam Angle: | 150X70° | Pole Diameter: | 60MM |
| Working Lifetime(hour): | 50000 | Warranty(year): | 3 |
| Application: | City Roads, Highways, Schools, Industrial Areas, Parks And Other Public Areas | Color Temperature: | 2700K-6500K |
| Lamp Body Material: | Die Cast Aluminum | Lamp Luminous Efficiency(lm/w): | 12800-16000lm |
| Led Quantities(pcs): | 96 | CRI: | >70 |
| Operating Time: | Full Power>12 Hours, Intelligent Mode 3-4 Days | Control Mode: | Light Control+time Control |
| Luminous Efficiency(lm/w): | >160lm/w | IP Rating: | IP66 |
| Installation Height: | 6-10m | ||
| High Light: | 16000lm Solar LED Panel Lights,100Ah Solar LED Panel Lights,120W Mono Siliocon LED Panel |
||

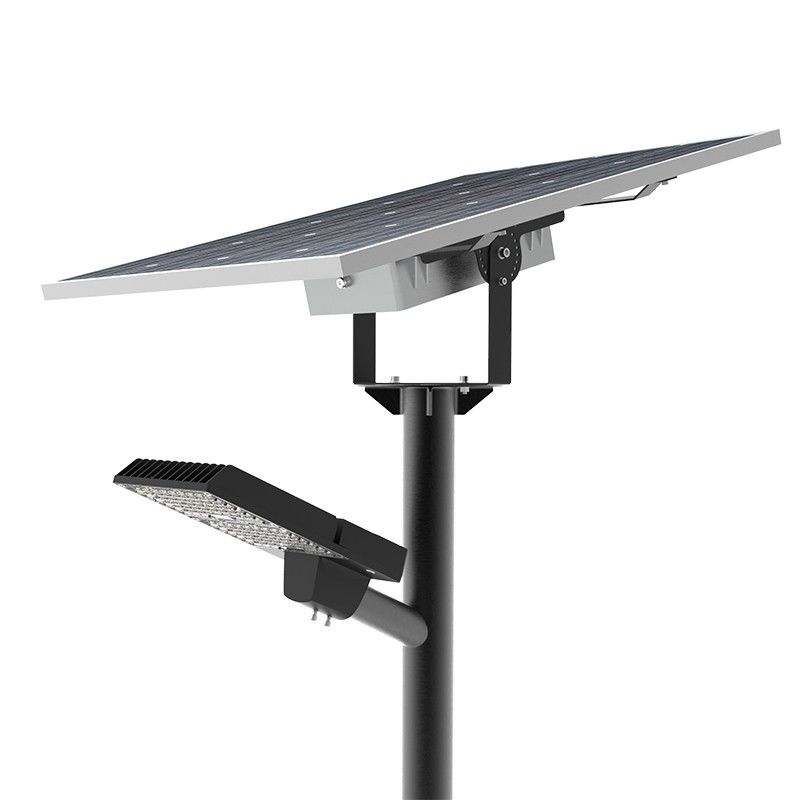

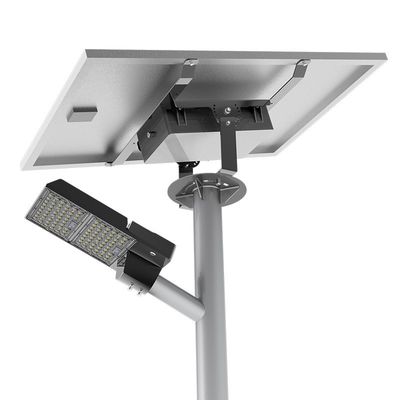

80W 90W 100W Split Solar LED Street Lights 120W Mono Siliocon Panel 100Ah Battery
Product Features:
1. 100Ah 18650 Lithiun battery, 5 years spen life.
2. Working Mode, full power>12 hours, intelligent mode 4-5 days
3. Specific design for high way and government project,install high up to 10M.
4. 120W Mono-crystalline solar panel with a higher conversion efficiency, up to 18%, and a service life of up to 25 years;
5. Customized motion sensor, sensing distance reach to 8M-13M.
6. Die Cast Aluminum alloy ,Waterproof IP65.
7. Turn on at dusk and tun off at dawn automatically.
8. MPPT control + time dimming / motion sensor
9. OEM, ODM is available.
Product Specifications:
|
Part NO. Parameter |
LY-ST70080XX | LY-ST70090XX | LY-ST70100XX |
| Power | 80W | 90W | 100W |
| Luminous flux(lm) | 12800 | 14400 | 16000 |
| Beam angle | 150*70° | ||
| Pole Diameter | 60mm | ||
| Chip Brand | Luxeon 5050 | ||
| Solar Panel | 120W/18V Monocrystalline Silicon | ||
| Battery |
18650 Lithium battery 12V 100Ah |
||
| CRI | >70 | ||
| Color Temperature | Warm White: 2700K-3200K/ Neutral White: 4000-4500K/ Pure White: 5000K-6500K | ||
| Operating Time | Full Power>12 hours, Intelligent mode 4-5 days | ||
| Control mode | Light Control + Time Control | ||
| Material | Die Cast Aluminum | ||
| IP Rating | IP65/ IP66 | ||
| Installtion Height | 6-10m | ||
Product Detail
FAQ
* What LED chip is used? Luxeon 5050 chips
* What type of solar cell is used? 18650 Lithium Battery
* What is the warranty period? In general can work 5 years and We support 3 years warranty
