| Product Name: | 10W 20W 30W Solar Post Top Lights | Power: | 10W 20W 30W |
|---|---|---|---|
| Battery: | 18650 Lithium Battery 12V 10/20/30Ah | Material: | Die Cast Aluminum |
| Warranty: | 3 Years Warranty | Solar Panel: | 30W /18V Monocrystalline Silicon |
| Light Source: | Luxeon 3030 | Ip Rating: | IP66 |
| Lamp Luminous Flux(lm): | 1500-4500 | Color Temperature(cct): | 2700K-6500K |
| Input Voltage(v): | 12V | Cri (ra>): | 70/80/90 |
| Beam Angle: | 100° X 100° | Working Lifetime(hour): | 50000hrs |
| Pole Diameter: | 60/76/83mm | LED Quantity（PCS）: | 64/96 |
| Operating Time: | Full Power >12 Hours ,Intelligent Mode 3-4 Days | Control Mode: | Light Control + Motion Sensor |
| Luminous Efficiency(lm/w): | 150 | Installation Height: | 3~5M |
| Size(mm): | L530xW530xH146mm L20.87*W20.87*H5.75inch | Net Weigh(kg): | 8 |
| Package Size(mm): | L652*W602*H130mm L26.18*W23.62*H5.12inch | Package Quantity(Pcs): | 1 |
| Gross Weigh(kg): | 9.2 | Application: | Sidewalk Lighting、Square Lighting、Lighting In Public Areas Such As Parks, Communities, Industrial Parks, |
| High Light: | 150lm/w Solar LED Post Top Lights,30Ah Solar LED Post Top Lights,Luxeon 3030 Landscape Garden Lighting |
||

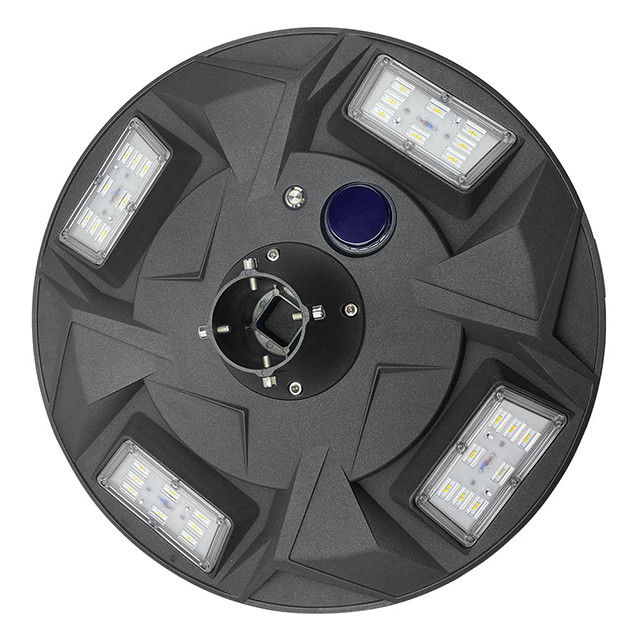

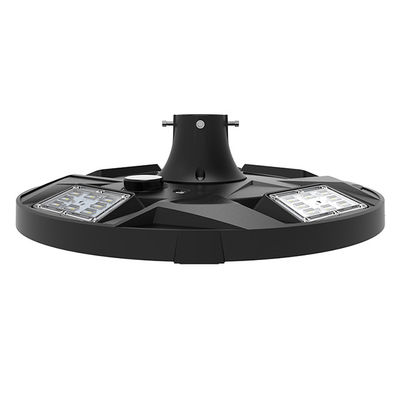

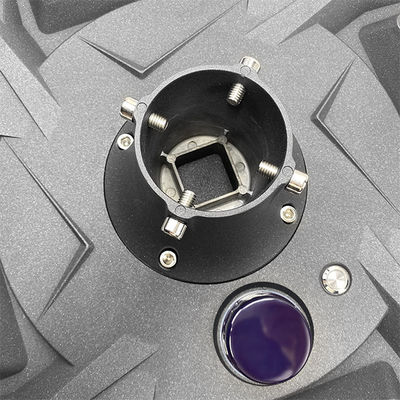

10W 20W 30W Solar LED Post Top Lights Landscape Garden Lighting Luxeon 3030
Product Features:
1. 18650 Lithiun battery, 5 years spen life.
2. Working Mode, full power>12 hours, intelligent mode 4-5 days
3. Specific design for sidewalk and square lighting project,install 3-5M.
4. Mono-crystalline solar panel 25 years spen life
5. Customized motion sensor, sensing distance reach to 8M.
6. All in one design with patent, Die Cast Aluminum alloy ,Waterproof IP66
7. Turn on at dusk and tun off at dawn automatically.
8. Time control + light sensor control+ motion sensor control
9. Motion and light sensor built in:solar street light goes on at dusk at 20% brightness(Brightness adjustable). Can go from 20% power to full brightness when motion is detected. Three Intelligent Modes: Bright / DIM / Recharge.
1)Bright: motion activates for lighting when motion is detected for security light and to save battery;
2)DIM: 20% lighting for saving power when no motion(Brightness adjustable);
3)Off/Recharge: automatically turns off in daylight and goes into recharge mode. (working mode can be adjusted according to client's demands).
10. Remote control the lighting mode, OEM, ODM is available.
Product Specifications:
|
Part NO. Parameter |
LY-GL10010XX | LY-GL10020XX | LY-GL10030XX |
| Power | 10W | 20W | 30W |
| Luminous flux(lm) | 1500 | 3000 | 4500 |
| LED Quantity(PCS) | 64 | 64 | 96 |
| Battery | 18650 Lithium battery 12V 10Ah | 18650 Lithium battery 12V 20Ah | 18650 Lithium battery 12V 30Ah |
| Beam angle | 100°* 100° | ||
| Pole Diameter | 60/76/83mm | ||
| Chip Brand | Luxeon 5050 | ||
| Solar Panel | 30W/18V Monocrystalline Silicon | ||
| CRI | 70/80/90 | ||
| Color Temperature | Warm White: 2700K-3200K/ Neutral White: 4000-4500K/ Pure White: 5000K-6500K | ||
| Operating Time | Full Power>12 hours, Intelligent mode 4-5 days | ||
| Control mode | Light Control + Time Control | ||
| Material | Die Cast Aluminum | ||
| IP Rating | IP65/ IP66 | ||
| Installtion Height | 3-5m | ||
| Size (mm) | L530xW530xH146mm; L20.87*W20.87*H5.75inch | ||
| Net Weigh(kg) | 8 | ||
| Package Size(mm) | L652*W602*H130mm; L26.18*W23.62*H5.12inch | ||
| Package Quantity(Pcs) | 1 | ||
| Gross Weigh(kg) | 9.2 | ||
Product Details:
FAQ
* What LED chip is used? Luxeon 5050 chips
* What type of solar cell is used? 18650 Lithium Battery
* What is the warranty period? In general can work 5 years and We support 3 years warranty
