Product Details:
Payment & Shipping Terms:
|
| Product Name: | 30W 40W 50W 60W LED Street Lights | Power: | 30W 40W 50W 60W |
|---|---|---|---|
| Light Source: | Luxeon 5050 | Ip Rating: | IP66 |
| Input Voltage(v): | AC100V～240V 50/60HZ | Cri (ra>): | >75 |
| Color: | Black /Grey /White | Working Lifetime(hour): | >50000 |
| Working Temperature(℃): | -30°-60° | Warranty(year): | 5 |
| Luminous Efficiency(lm/w): | >160lm/w | Application: | Highways,urban Roads And Secondary Roads,stadiums,sidewalks,residential Areas,industrial Areas,squares,parks,schools,villas,gardens And Other Places. |
| Beam Angle(°): | 150*65°， 153*80° | Lamp Body Material: | Die Cast Aluminum |
| Color Temperature(cct): | 2700K-6500K | Dimmable: | Yes/ No |
| Net Weight(kg): | 2.8 | Size(mm): | 410*200*90 |
| Luminous Flux(lm): | 4800, 6400, 8000, 9600 | ||
| High Light: | 160LM/W Outdoor Led Road Lamp,IK10 Outdoor Led Road Lamp,Luxeon 5050 Led Street Bulb |
||

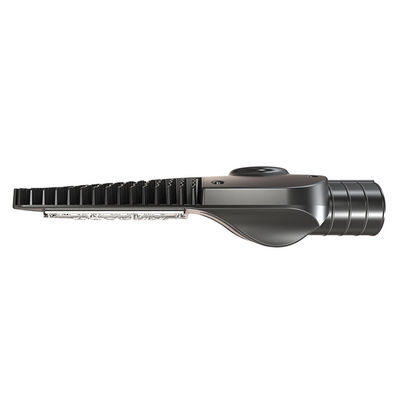

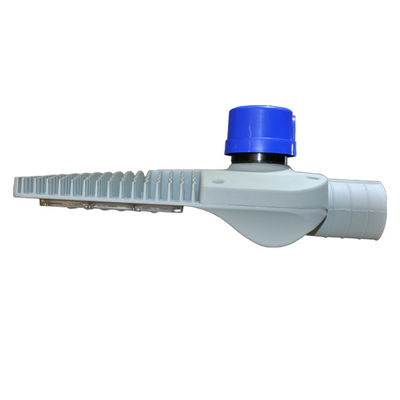

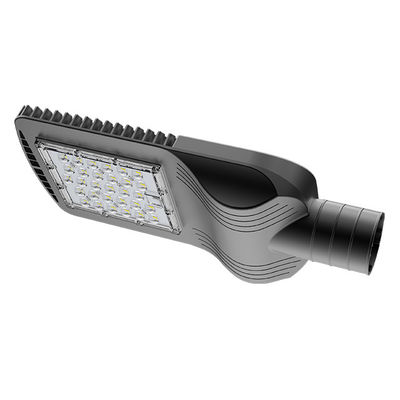

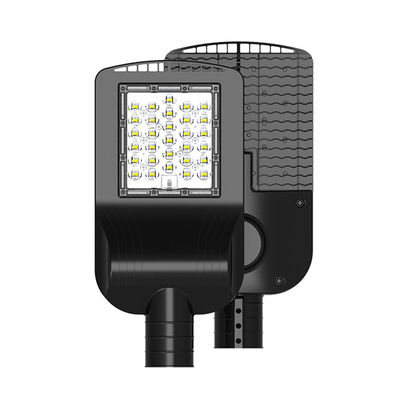

Outdoor Led Street Lights Road Lamp 30W-60W 10KV Luxeon 5050 160LM/W
Product Features
• High quality power supply,input voltage 100-240V.The power efficiency is more than 88%, power factor>0.98,UL certification.
• Adopting Lepower LED light sources and ZAG lens technology, 8% light efficiency higher than the same type lights in the market, with higher light transmittance up to 98%.
• Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds.
• Adopting the popular CHEM modular design, effectively reduce the following maintenancecose.
• Low energy consumption, matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current,over-voltage, lightning,
high temperature, which fully ensure long life span and high stability of the products.
• Durable lights with long life spn up to 50000hours; No need replace the lights frequently just make the regular maintenance.
• Green environmental protection, no UV light and infrared radiation, no mercury pollution.
• Nice appearance and non-fouling properties, Protection class IP66.
• Work without strobe, fast transient response; A wide range of working voltage.
• 2pcs 1W chips are packaged in one LED, which ensure high stability and also reduce the death rate of the leds.
Product Specification
|
Part NO. Parameter |
LY-ST20030XX | LY-ST20040XX | LY-ST20050XX | LY-ST20060XX |
| Power | 30W | 40W | 50W | 60W |
| Luminous flux(lm) | 4800 | 6400 | 8000 | 9600 |
| Input Voltage | AC100~240V 50/60HZ | |||
| Beam angle | 150*60° 153*80° | |||
| Pole Diameter | 60mm | |||
| Chip Brand |
Luxeon 5050 |
|||
| CRI | >75 | |||
| Color Temperature | Warm White: 2700K-3200K/ Neutral White: 4000-4500K/ Pure White: 5000K-6500K | |||
| Lifespan(hrs) | >50000 | |||
| Luminous efficiency(lm/w) | >160 | |||
| Material | Die Cast Aluminum | |||
| IP Rating | IP66 | |||
Product Details
FAQ
* What LED chip is used? Luxeon 5050 chips or negotiate
* What driver you use? Meanwell driver, or negotiate
* What is the warranty period? 5 years warranty
