Product Details:
Payment & Shipping Terms:
|
| Product Name: | King LED Streetlight | Power: | 30w |
|---|---|---|---|
| Lumen: | 150lm/w | Driver: | Meanwell Or Customized |
| LED Brand: | Lumileds Luxeon 5050 | Beam Angle: | 160*85 |
| Material: | Aluminum+Tempered Glass + PMMA | Working Temperature(℃): | -35 - 50 |
| Application: | Square, Garden, Sports Stadiums, Building, Out Wall | Warranty: | 5 Years |
| High Light: | 150lm/W Outdoor Led Garden Light,4850lm Outdoor Led Garden Light,30W Led Street Light Fixtures |
||
Mini King Aluminium housing LED Street Light 30W Outdoor Garden Light
Features
• High luminous flux,reach 150-170LM/W.Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
• No diffuse reflection effect, with high light efficiency, coupled with a unique secondary optical design, can be irradiated to a wider area, once again improve the efficiency of light has reached the purpose of energy conservation.
• Anti-glare and uniform light level to avoid any visual discomfort.
• Adopting LUXEON 5050 led light sources and LEYOND lens technology, 8% light efficiency higher than the same type lights in the market, with higher light transmittance up to 96%.
• Low energy consumption,matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current, over-voltage, lightning, high temperature, which fully ensure long life span and high stability of the products.
• Durable lights with long life span up to 50000 hours; No need frequent replacements of lights and regular maintenance.
• Green environmental protection, no UV light and infrared radiation, no mercury pollution.
• Nice appearance and non-fouling properties, Protection class IP66.
2. Specifications
|
Par NO Parameter |
LY-ST50030PW | LY- ST50030WW | LY- ST50030NW |
| Inptut voltage | AC90V～305V 50/60HZ | ||
| Sysem consumption(W) | 30 | 30 | 30 |
| Luminous flux(lm) | 4850 | 4260 | 4650 |
| Chip Brand | LUXEON 5050/LEYOND 5050 | LUXEON 5050/LEYOND 5050 | LUXEON 5050/LEYOND 5050 |
| Beam Angle | 150*65 DEG | 150*65 DEG | 150*65 DEG |
| CRI | ＞80 | ||
| Color Temperature | Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K | ||
| LED Driver |
LEYOND |
||
| Luminous efficiency(lm/w) | ＞160 | ||
| Lifespan(hrs) | ＞50000 | ||
| IP Rating | IP66 | ||
| Dimmable | YES＆NO | YES＆NO | YES＆NO |
| Size(mm) | 300x150x66 | 300x150x66 | 300x150x66 |
| Net Weigh(kg) | 1.2 | 1.2 | 1.2 |
| Package Size(mm) | 330*180*100 | 330*180*100 |
330*180*100 |
| Package Quantity(Pcs) | 1 | 1 | 1 |
| Gross Weigh(kg) | 1.6 | 1.6 | 1.6 |
3. Applications
Suitable for the highways,urban roads and secondary roads,stadiums,sidewalks,
residential areas,industrial areas,squares,parks,schools,villas,gardens and other places.

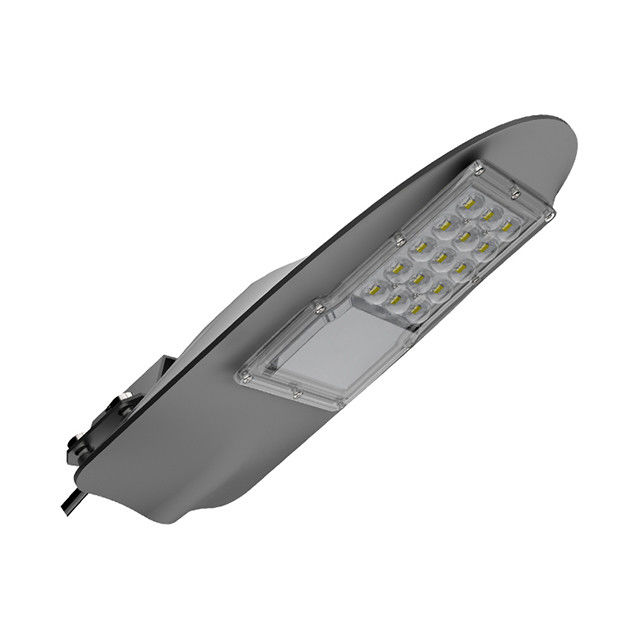

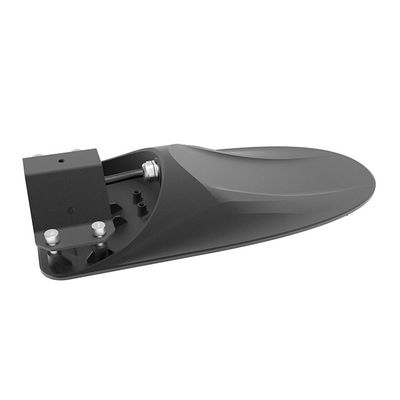

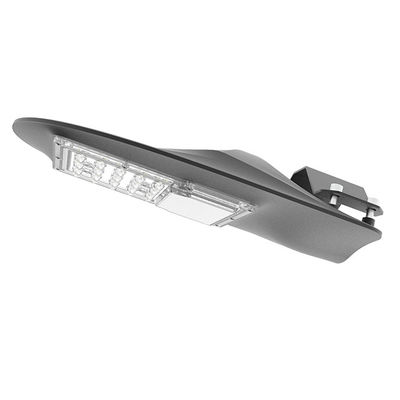

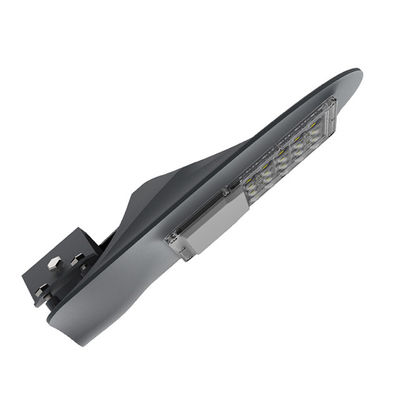

5. Pictures
6. Operation and Storage Condition
7. Package
Inner box Size: 330mm×180mm×100mm
Outer box Size: 350mm×390mm×240mm (4 PCS LED Street Light)
