Product Details:
Payment & Shipping Terms:
|
| Item Type: | Garden Street Post Lights | Application: | ROAD,outdoor,Highway,Garden,courtyard |
|---|---|---|---|
| Power: | 30W | Lamp Body Material: | All In One Die Casting Aluminum |
| Light Source: | LUXEON 3030 | Lamp Luminous Efficiency(lm/w): | 160 |
| Working Lifetime(hour): | 50000 | Warranty(year): | 3 |
| High Light: | MPPT Led Garden Post Lights,IP66 Solar Powered Garden Lights,IP66 Solar Led Garden Lights |
||
Outdoor Integrated 30W MPPT Led Garden Post Lights Solar Powered
Good Looking Outdoor integrated Solar Power Led Garden Post Lights with MPPT Control,Motion Sensor

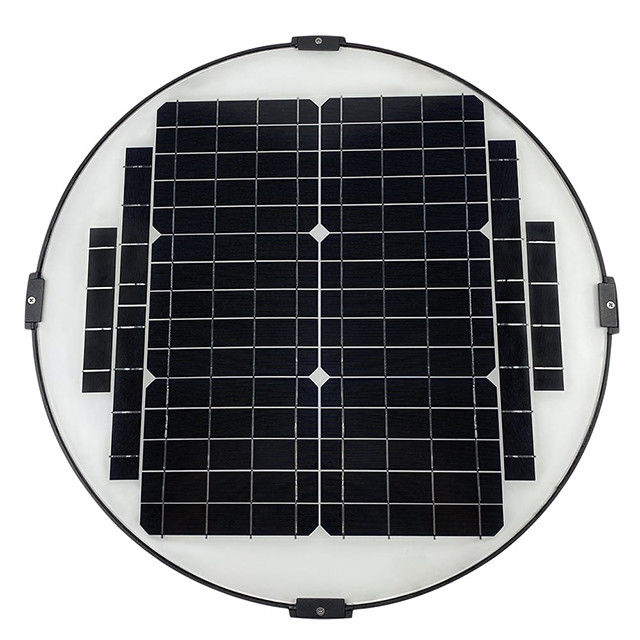

1. The Mono-crystalline solar panel,LED lights,lithium battery,intelligent controller integrated Aluminum Alloy shell.
2. It used of lithium iron phosphate battery,fight the high temperature,keep long life.
3.It used of alloy material as the main structure,with good rust prevention,corrosion protection
4. When the products with optically controlled microwave induction infrared sensor, automatic adjustment of intelligent power on rainy days, extend rainy days.
5. time control + light sensor control+ motion sensor control
6. Motion and light sensor built in:solar street light goes on at dusk at 50% brightness. Can go from 50% power to full brightness when motion is detected. Three Intelligent Modes: Bright / DIM / Recharge.
* Bright: motion activates for lighting when motion is detected for security light and to save battery;
*DIM: 50% lighting for saving power when no motion;
*Off/Recharge: automatically turns off in daylight and goes into recharge mode. (working mode can be adjusted according to client's demands).
7. AC/DC Hybrid system for optional:Features a DC detection function. If DC available, the system will automatically switch to lithium battery supply when the battery voltage rise to the DC switching point; the system will automatically switch to DC power supply when the battery voltage falls to the DC switching point; if DC powers off, the system will shut off output when the battery reaches the over-discharge point after continuous discharging.
8.Warning
Do Not Open the Light Engine;
Do Not Soak the LED Street Light into Water;
When open the package please assure that the light is perfect without any damage. If any damage is found, do not install the product;
There are pc fittings for the light. It should be handled with care.
|
Par NO. Parameter |
LY-GL10020XX |
LY-GL10030XX |
|
Battery |
18650 lithium battery 12V 20Ah/30Ah |
|
|
Beam angle |
140° |
|
|
Pole diameter |
60/76/83mm |
|
|
Light output |
20W |
30W |
|
Luminous efficiency (lm) |
≥160lm/w |
|
|
Solar panel |
30W /18V monocrystalline silicon |
|
|
CRI |
>70 |
|
|
Chip Brand |
LUXEON 3030 |
|
|
Operating time |
Full power >12 hours ,Intelligent mode 3-4 days |
|
|
Control Mode |
MPPT Control+Motion Sensor |
|
|
Installation height |
3~5M |
|
|
Housing |
All In One Die Casting Aluminum,Eesy to open and Installation |
|
|
Optional |
AC/DC Hybrid System |
|
|
Warranty |
3 years |
|
|
Certifications |
CE/ROHS/IP66/IK09 |
|
