Zigbee System 80W IP66 Modular Aluminium LED Street Light 160lm/W

1. Outlook

2. Specifications

3. Applications

Suitable for the highways, urban roads and secondary roads, stadiums, sidewalks,

residential areas, industrial areas, squares, parks,schools, villas,gardens and other places.

4. Features

• Absolutely unique mold,make your lighting special and fantastic.
• Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
• Anti-glare and uniform light level to avoid any visual discomfort.
• High quality power supply, input voltage 100-277V. The power efficiency is more than 90%, power factor greater than 0.98.
• Adopting PHILIPS LUXEON 5050 led light sources and LEYOND lens technology, 8% light efficiency higher than the same type lights in the market, higher light transmittance up to 98%.
• Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds. Adopting the popular CHEM modular design, effectively reduce the following maintenance cost.
• Low energy consumption,matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current, over-voltage, lightning, high temperature, which fully ensure long life span and high stability of the products.
• Durable lights with long life span up to 100000 hours; No need frequent replacements of lights and regular maintenance.
• Green environmental protection, no UV light and infrared radiation, no mercury pollution.
• Nice appearance and non-fouling properties, Protection class IP66.
• Work without strobe, fast transient response；A wide range of working voltage.

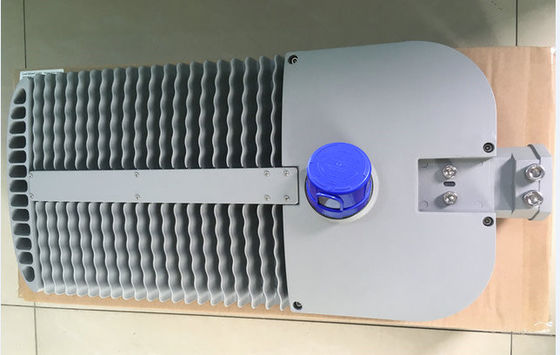

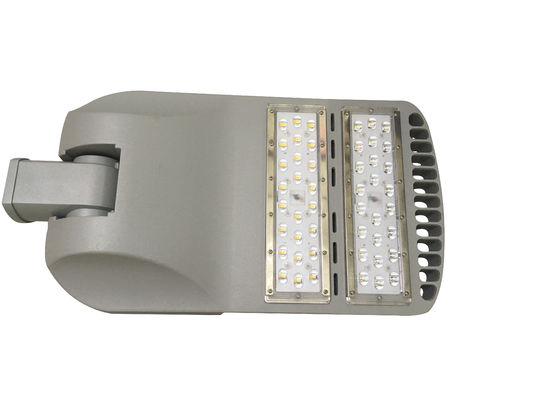

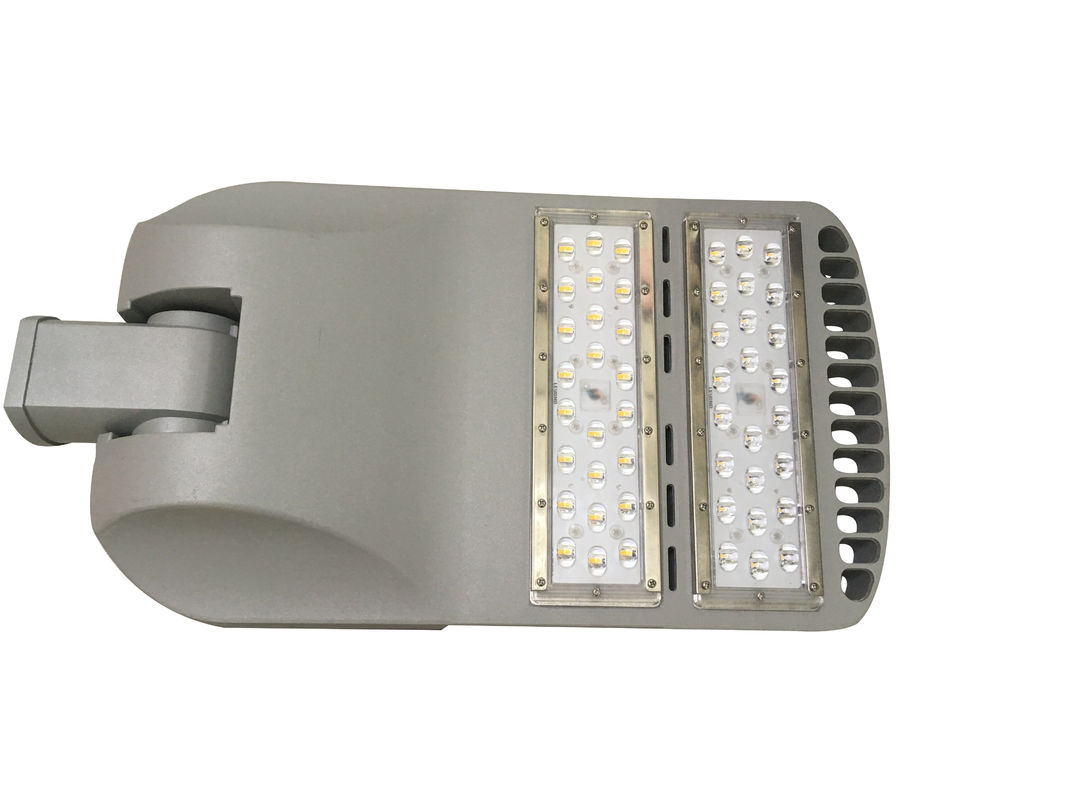

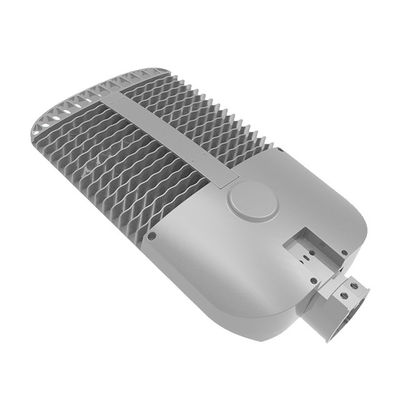

5. Pictures

6. Operation and Storage Condition

• Operation Ambient Temperature -30 to +50°C, Relative Humidity 20~90%
• Input Voltage 90~305V AC, 50/60Hz
• Storage Ambient Temperature -30 to +60°C, Relative Humidity 5~95%
• Mounting Height : Suitable for 6~12m height

7. Optional function

2) Zigbee remote communication controlling

ZIGBEE controller conforms to IEEE802.15.4 protocol of ZIGBEE

communication standard. It has the advantages of remote communication,

strong anti-interference capability and flexible networking, realizing

peer-to-peer and peer-to-multi peer transparent data transmission among

devices, and constructing star network or mesh network topology.

ZIGBEE controller consists of a current and voltage measurement

circuit, which collect real-time load performance and power consumption of

street light.

8. Package

Inner box Size: 670mm×368mm×110mm
Outer box Size: 688mm×383mm×256mm    (2 PCS LED Street Light)
