High Mast Stadium 2700K 1000W Modular Flood Light Luxeon 5050 lED

High Mast Stadium 2700K 1000W Modular Flood Light  Luxeon 5050 lED
High Mast Stadium 2700K 1000W Modular Flood Light  Luxeon 5050 lED High Mast Stadium 2700K 1000W Modular Flood Light  Luxeon 5050 lED High Mast Stadium 2700K 1000W Modular Flood Light  Luxeon 5050 lED

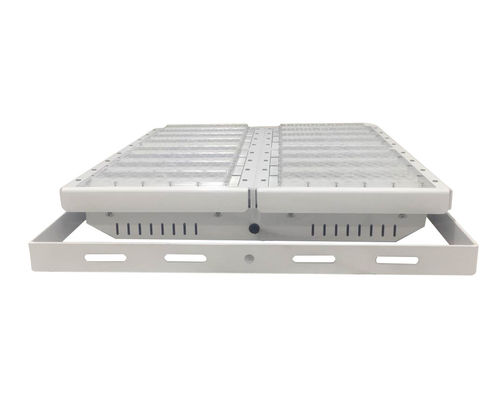

Large Image :  High Mast Stadium 2700K 1000W Modular Flood Light Luxeon 5050 lED

Product Details:

Place of Origin: Shenzhen, China
Brand Name: LEYOND
Certification: CE EMC LVD ROHS CB ENEC TUV
Model Number: LY-ST231000PW

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: 7-10 Working days
Payment Terms: T/T, , L/C, D/A, D/P
Supply Ability: 10000 Pcs/Month
Detailed Product Description
Power: 1000W Input Voltage: 100-305V AC
Chip: Lumileds Luxeon 5050 Led Luminous Efficency: >160LM/W
Beam Angle: 25/60/90° CRI: >80
IP Rating: IP66 Warranty: 5 Years
CCT: 2700-6500K
High Light:

1000W Modular Flood Light

,

2700K Modular Flood Light

,

2700K LED Flood Lights

High Mast Stadium 2700K 1000W Modular Flood Light Luxeon 5050 LED



High Power 1000W LED Flood Light For High Mast Stadium lighting





1. Specificatoin:



Electrical Specifications

Model

modules number

Power

Input Voltage

Input Current

Power factor

Power efficiency

LY-ST231000PW

16

1000W

AC90~305V

50/60Hz

4.78A/220VAC

>0.99/115VAC

>0.98/230VAC

>90

Electrical Specifications:



















Photometric Specifications



Product Model

Luminous Flux

CCT

Light efficiency

Power

CRI

Module

Quantity

Lens

Degree

LY-ST231000PW

155000 LM

5000-6500K

165lm/W



1000W



>70





16

25°

60°

90



Mechanical Specifications

Model

Carton Size

gross weight

Net Weight

IP Rating

Meterial

LY-ST231000PW

830×735×160mm

24.5kg

22.7kg

IP66

Aluminum +PC





2. Dimension:

High Mast Stadium 2700K 1000W Modular Flood Light  Luxeon 5050 lED 0



3. Features:

Adoption LEYOND exclusive Lens with light transmittance up to 98%.

Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.

There are 25°,60°, 90°, beam angle options for the Lens.

Scientifically-designed heat dissipater with much better cooling effect.

High luminous efficiency, Whole lamp output light effiency >150LM/W.

High quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.

For the traditional light source such as the High Pressure Sodium, if the voltage fluctuation ±7%, the brightness and lifetime will be reduced very fast, but for LEYOND LED, even the voltage fluctuation is ±20%, the brightness and lifetime will not be influenced at all;Over Current, Over Voltage, Over Heat, Thunder Protection.

Impact Resistance, Shock-proof, Without Ultraviolet (UV) and Infrared (IR) Radiation: No filament and glass frames, avoid break of the traditional lamp,without harm to the human body.

The CCT of Warm white,Neutral white,Pure white to meet the needs of different occasions, eliminated the low color temperature of the sodium lamp which cause the depressed mood, observers will feel more comfortable.



4. Application:

It is applicable to playground lighting ,warehouse lighting, plaza lighting, tunnel lighting and so on.

New Installation or Replace the traditional High Pressure Sodium Lamp, High Pressure Mercury Lamp, and Metal Halide Street Lamps. Etc.

5. Distribution Curve:

High Mast Stadium 2700K 1000W Modular Flood Light  Luxeon 5050 lED 1

5. Photometry (AAI Figure):

High Mast Stadium 2700K 1000W Modular Flood Light  Luxeon 5050 lED 2

6. Assembly and Installation:

High Mast Stadium 2700K 1000W Modular Flood Light  Luxeon 5050 lED 3

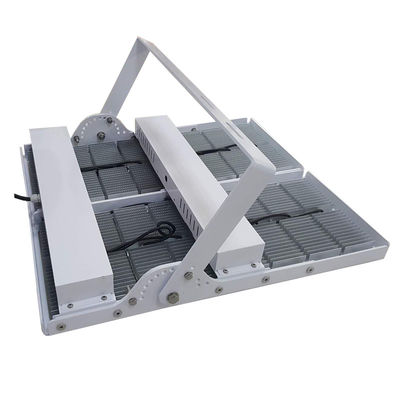

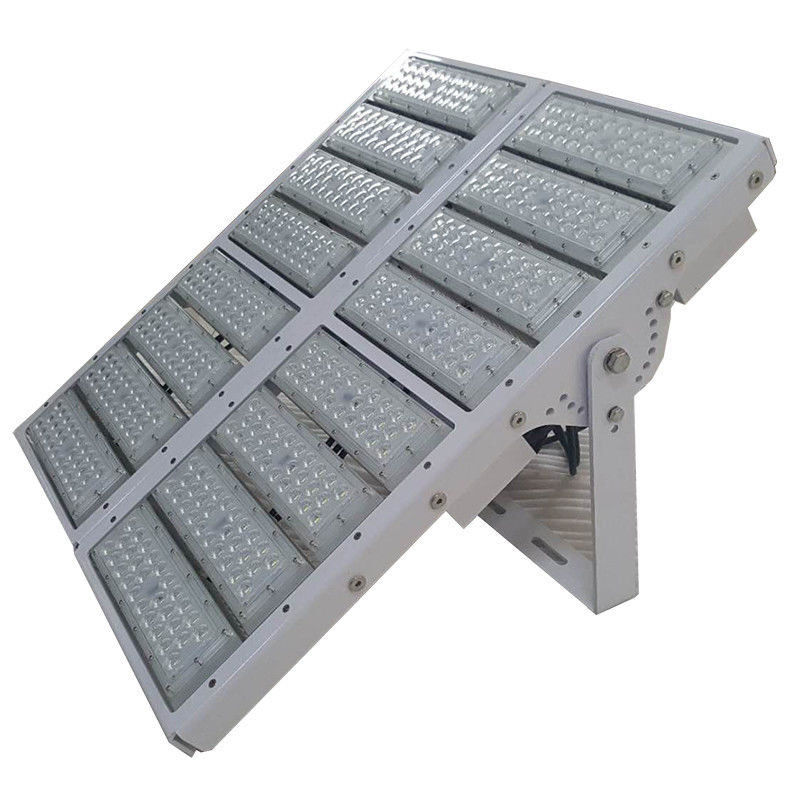

7. Detail Pictures:

High Mast Stadium 2700K 1000W Modular Flood Light  Luxeon 5050 lED 4

High Mast Stadium 2700K 1000W Modular Flood Light  Luxeon 5050 lED 5



High Mast Stadium 2700K 1000W Modular Flood Light  Luxeon 5050 lED 6

High Mast Stadium 2700K 1000W Modular Flood Light  Luxeon 5050 lED 7

8. FAQ:

1. How to choose LED light source?
A: Lumens(LM), light efficiency (LM/W), Life span (hrs) are very important factors when
choosing LED light source. The higher, the better. Besides, brand of LED chip, LED base and
other materials will influence the product reliability.

2. Why choose Leyond Lighting?
A: Client-oriented, technology first, hornest operation is our business philosophy. Leyond
always treat the clients benefit as the most important thing. So, we use the top brand
material to produce high quality product.

3. How to place an order?
A: Contact our sales representatives by email, skype or making a call, we will soon send you confirm with you for your detailed requirements. Then we send you PI for your approval and payment. You can choose wire transfer, PayPal, west union to send us payment.

4. How long will the warranty period last?
A: We usually offer 5 years free warranty. More detailed warranty policy, please contact our sales representatives.
