Product Details:
Payment & Shipping Terms:
|
| Power: | 80w | Lumen: | 160lm/w |
|---|---|---|---|
| Input Voltage: | 90-305V | Material: | Pure Aluminum + PC |
| Size: | 252x220x128mm | SPD: | 10KV |
| Housing Color: | Gray/Black | Driver: | INVENTRONICS EUM |
| LED Chips: | Lumileds Luxeon 5050 | IK Rate: | IK08 |
| High Light: | Luxeon 5050 LED Street Lighting,IP66 Outdoor Led Parking Lot Light,10KV LED Street Lighting |
||
80w Luxeon 5050 LED Street Lighting IP66 Outdoor Led Parking Lot Light
Enec Toolless Led Street Light Luxeon 5050 Street Led Lamp 80w IP66 Outdoor Led Parking Lot Light
1. Specification of Leyond Galaxy LED Street light 80W
|
Par NO Parameter |
LY-ST60080PW | LY- ST60080WW | LY- ST60080NW |
| Inptut voltage | AC100V～305V 50/60HZ | ||
| Sysem consumption(W) | 80 | 80 | 80 |
| Luminous flux(lm) | 13400 | 12000 | 12850 |
| Chip Brand | LUXEON 5050/LEYOND 5050 | LUXEON 5050/LEYOND 5050 | LUXEON 5050/LEYOND 5050 |
| Color Temperature | Pure white:5000-6500K | Warm white:2700-3200K | Neutral white:4000-4500K |
| CRI | ＞70 | ||
| Beam Angle | 150*60 DEG | ||
| LED Driver |
INVENTRONICS EUM-075 |
||
| Luminous efficiency(lm/w) | ＞160 | ||
| Lifespan(hrs) | ＞50000 | ||
| IP Rating | IP66 | ||
| Dimmable | YES＆NO | YES＆NO | YES＆NO |
| Size(mm) | 252x220x128 | 252x220x128 | 252x220x128 |
| Net Weigh(kg) | 2.8 | 2.8 | 2.8 |
| Package Size(mm) | 290*250*180 | 290*250*180 |
290*250*180 |
| Package Quantity(Pcs) | 1 | 1 | 1 |
| Gross Weigh(kg) | 3.7 | 3.7. | 3.7 |
2. Features of Leyond Galaxy LED Street light 80W
• Absolutely unique mold,make your lighting special and fantastic.
• The appearance of body: aluminum alloy die-casting
• Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
• Anti-glare and uniform light level to avoid any visual discomfort.
• Adopting LUXEON 5050 led light sources and LEYOND lens technology, higher light transmittance up to 93%.

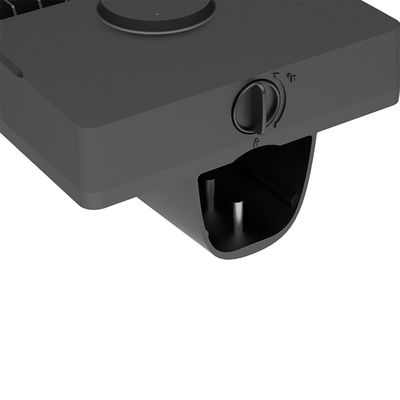

• The power supply is designed to be portable and easy to construct and maintain.Easy to disassemble and assemble: You can easily open and cover up the housing with your hands, don't need any additional tools.
3. Application of Leyond Galaxy LED Street light 80W
Suitable for the highways,urban roads and secondary roads,stadiums,sidewalks,residential areas,industrial areas,squares,parks,schools,villas,gardens and other places.

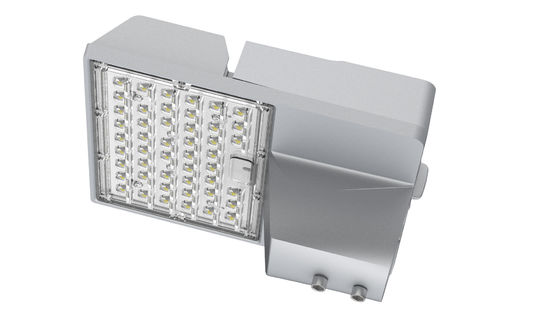

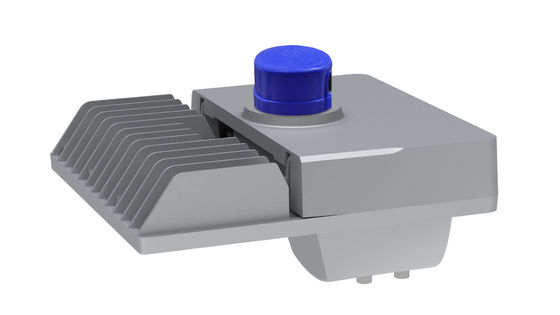

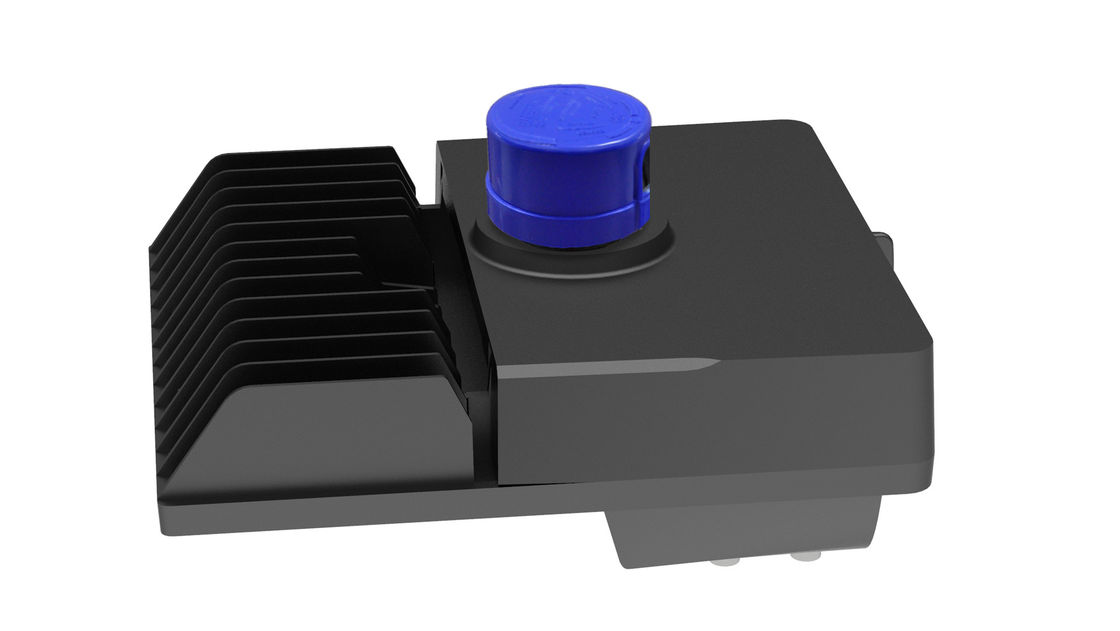

4. Outlook of Leyond Galaxy LED Street light 80W
5. Distribution Curve
6. Operation and Storage Condition
