Product Details:
Payment & Shipping Terms:
|
| Power: | 100w | Lumen: | 160lm/w |
|---|---|---|---|
| Input Voltage: | 90-305V | SPD: | 10KV |
| Housing Color: | Gray/Black | LED Chips: | Lumileds Luxeon 5050 |
| IP Rate: | IP65 | CRI: | 80 |
| Working Temp: | -25 - +50 °C | Application: | Garden, Garden Square Park, Street |
| High Light: | 100w IP65 LED Street Lighting,10KV 100 Watt LED Street Light,Luxeon 5050 LED Road Lamp |
||

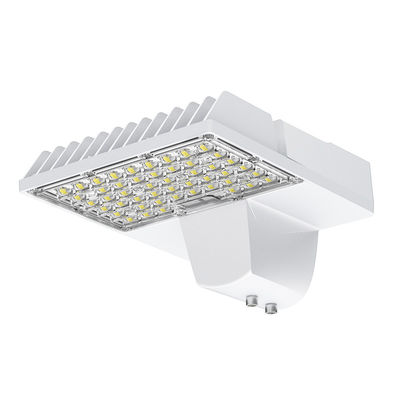

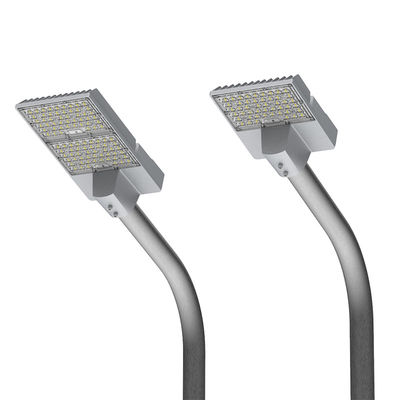

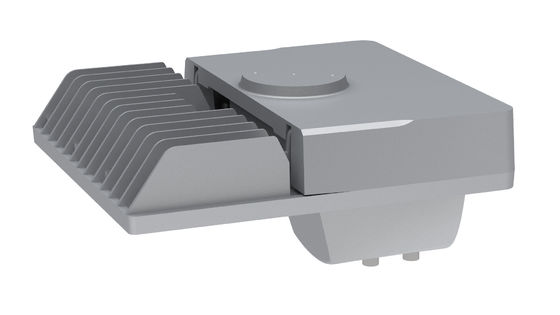

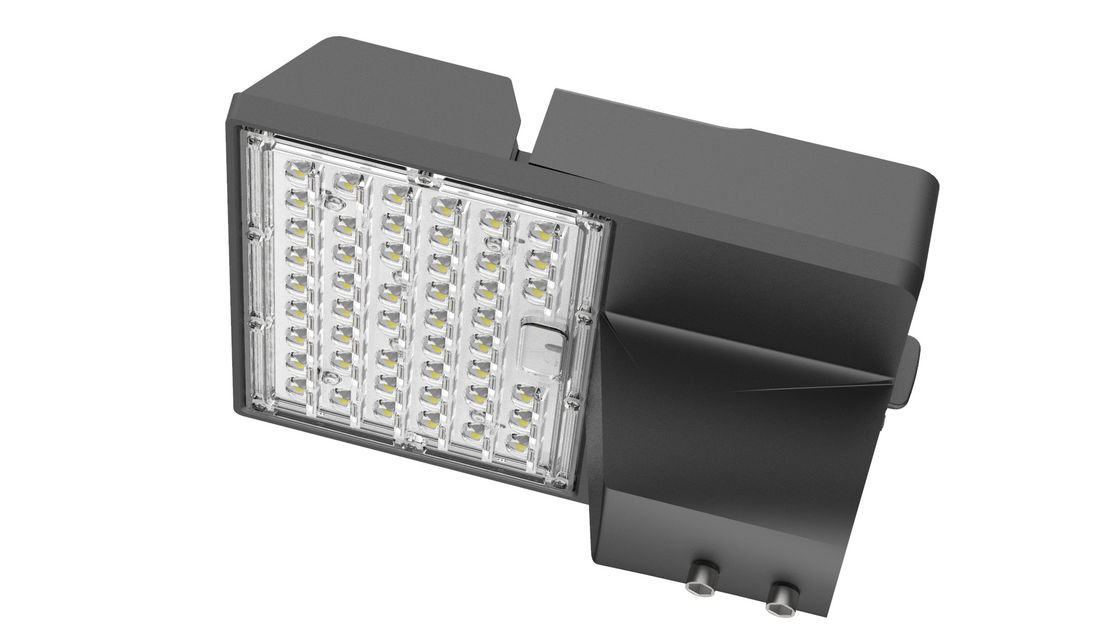

Outdoor 100 Watt IP65 LED Street Lighting Aluminium Modular
160lm W Outdoor LED Street Light 100w IP65 Aluminium Modular LED Road Lamp
1. Specification of Leyond Galaxy LED Street light 100W
|
Par NO Parameter |
LY-ST60100PW | LY- ST60100WW | LY- ST60100NW |
| Inptut voltage | AC100V～305V 50/60HZ | ||
| Sysem consumption(W) | 100 | 100 | 100 |
| Luminous flux(lm) | 16800 | 15000 | 16100 |
| Chip Brand | LUXEON 5050/LEYOND 5050 | LUXEON 5050/LEYOND 5050 | LUXEON 5050/LEYOND 5050 |
| Color Temperature | Pure white:5000-6500K | Warm white:2700-3200K | Neutral white:4000-4500K |
| CRI | ＞70 | ||
| Beam Angle | 150*60 DEG | ||
| LED Driver |
INVENTRONICSEUM-100 |
||
| Luminous efficiency(lm/w) | ＞160 | ||
| Lifespan(hrs) | ＞50000 | ||
| IP Rating | IP65 | ||
| Dimmable | YES＆NO | YES＆NO | YES＆NO |
| Size(mm) | 252x220x128 | 252x220x128 | 252x220x128 |
| Net Weigh(kg) | 2.8 | 2.8 | 2.8 |
| Package Size(mm) | 290*250*180 | 290*250*180 |
290*250*180 |
| Package Quantity(Pcs) | 1 | 1 | 1 |
| Gross Weigh(kg) | 3.7 | 3.7. | 3.7 |
2. Features of Leyond Galaxy LED Street light 100W
• Absolutely unique mold,make your lighting special and fantastic.
• The appearance of body: aluminum alloy die-casting
• High quality power supply, input voltage 100-305V. The power efficiency is more than 90%, power factor greater than 0.98.
• Durable lights with long life span up to 50000 hours; No need frequent replacements of lights and regular maintenance.
• Green environmental protection, no UV light and infrared radiation, no mercury pollution.
• Nice appearance and non-fouling properties, Protection class IP65.
• Work without strobe, fast transient response；A wide range of working voltage.
3. Application of Leyond Galaxy LED Street light 100W
Suitable for the highways,urban roads and secondary roads,stadiums,sidewalks,residential areas,industrial areas,squares,parks,schools,villas,gardens and other places.
4. Distribution Curve
5. Operation and Storage Condition
