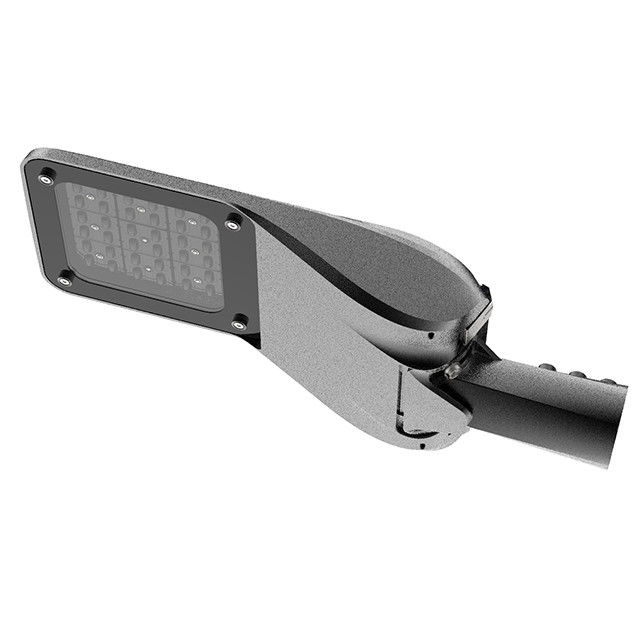

High Temper Glass Tool Less Driver 40w Street Light 130lm/W PC Lens

High Temper Glass Tool Less Driver 40w Street Light 130lm/W PC Lens
High Temper Glass Tool Less Driver 40w Street Light 130lm/W PC Lens High Temper Glass Tool Less Driver 40w Street Light 130lm/W PC Lens High Temper Glass Tool Less Driver 40w Street Light 130lm/W PC Lens High Temper Glass Tool Less Driver 40w Street Light 130lm/W PC Lens High Temper Glass Tool Less Driver 40w Street Light 130lm/W PC Lens

Large Image :  High Temper Glass Tool Less Driver 40w Street Light 130lm/W PC Lens

Product Details:

Place of Origin: CHINA
Brand Name: LEYOND
Certification: CE ROHS EMC CB ENEC
Model Number: LY-ST50040XX

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Price: US $58-65
Packaging Details: neutral packing; >300pcs colar box
Delivery Time: 5-7 working days
Payment Terms: T/T
Supply Ability: 3000PCS per month
Detailed Product Description
Product Name: LED Street Light Input Voltage: AC100V~240V 50/60HZ
Luminous Flux(lm): 5200LM Chip Brand: LUXEON 5050
CRI: >75 Lifespan(hrs): >50000
IP Rating: IP66 Net Weigh(kg): 4.9
Size(mm): 619x240x139
High Light:

Tool Less Driver 40w Street Light

,

PC Lens 40w Led Street Light

,

IP66 40 Watt Led Street Light

High Temper Glass Tool Less Driver 40w Street Light 130lm/W PC Lens



40W Tool-Less Driver Street Light High Temper Glass 130lm/W PC Lens






• Absolutely unique mold,make your lighting special and fantastic.

• Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.

• Anti-glare and uniform light level to avoid any visual discomfort.

• high quality power supply, input voltage 85-305V. The power efficiency is more than 90%, power factor greater than 0.98.

•Adopting LUXEON 5050 led light sources and LEYOND lens technology, 8% light efficiency higher than the same type lights in the market, higher light transmittance up to 96%.

• Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds. Adopting the popular CHEM modular design, effectively reduce the following maintenance cost.

• Low energy consumption,matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current, over-voltage, lightning, high temperature, which fully ensure long life span and high stability of the products.

• Durable lights with long life span up to 50000 hours; No need frequent replacements of lights and regular maintenance.

• Green environmental protection, no UV light and infrared radiation, no mercury pollution.

• Nice appearance and non-fouling properties, Protection class IP66.

• Work without strobe, fast transient response;A wide range of working voltage.






Par NO LY-ST50040XX LY-ST50040XX LY-ST50040XX
Input voltage AC90V~305V 50/60HZ
System consumption(W) 40 40 40
Chip Brand LUXEON 5050 LUXEON 5050 LUXEON 5050
Driver Brand MEAN WELL HLG-60H / ELG-75
Lifespan(hrs) >50000
Beam Angle 160*85 DEG 160*85 DEG 160*85 DEG
Dimmable YES&NO YES&NO YES&NO
Color Temperature WW:2700-3200K / NW:4000-4500K / PW:5000-6500K
Material Die-casting Aluminum+PC Lens+ High Temper Glass
Size(mm) 619x240x139 619x240x139 619x240x139
Net Weigh(kg) 4.9 4.9 4.9
Sample Time Immediately



Product Images

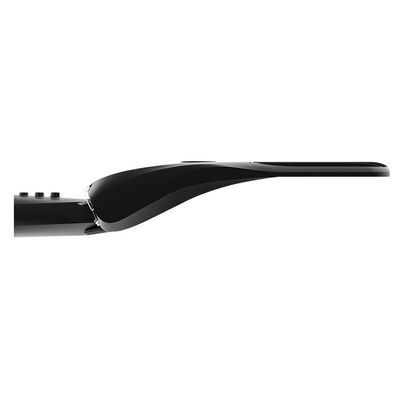

High Temper Glass Tool Less Driver 40w Street Light 130lm/W PC Lens 2

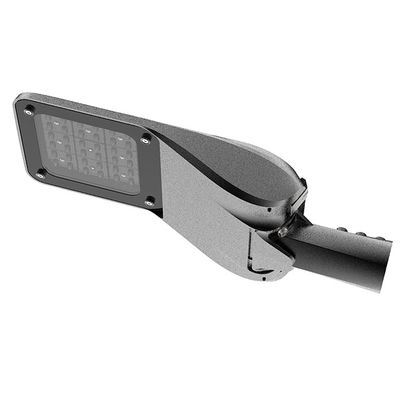

High Temper Glass Tool Less Driver 40w Street Light 130lm/W PC Lens 3

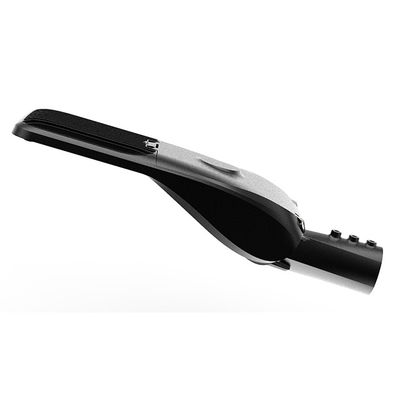

High Temper Glass Tool Less Driver 40w Street Light 130lm/W PC Lens 4

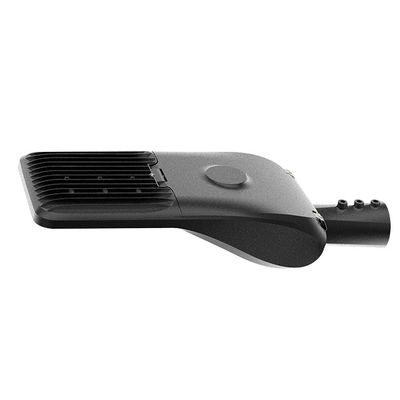

High Temper Glass Tool Less Driver 40w Street Light 130lm/W PC Lens 5





Project Cast Images

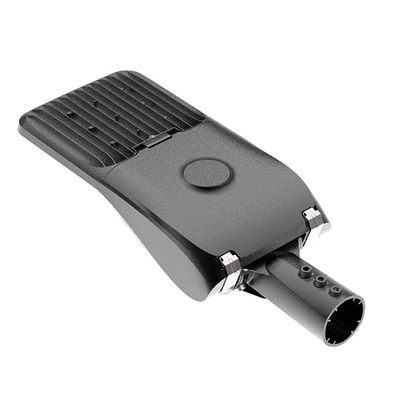

High Temper Glass Tool Less Driver 40w Street Light 130lm/W PC Lens 6

High Temper Glass Tool Less Driver 40w Street Light 130lm/W PC Lens 7

High Temper Glass Tool Less Driver 40w Street Light 130lm/W PC Lens 8



Packing Details



Inner box Size: 660mm×280mm×190mm
Outer box Size: 680mm×295mm×420mm (2 PCS LED Street Light)

High Temper Glass Tool Less Driver 40w Street Light 130lm/W PC Lens 9



FAQ



Q1. What is your MOQ?

MOQ: 1 Pcs. Which is No MOQ.



Q2. Can I get a lower price for large quantity order?

Yes, please check with our sales staff for the details.



Q3. What is the payment terms of your formal order?

We accept payment via TT, Paypal, Western Union, and we offer EXW terms.



Q4.Can you guarantee the product quality?

We offer 3-10 years warranty to our products. We ensure and guarantee the production quality of all products, either sample order or formal order, with LEYOND's quality control process, we achieved less than 0.2% general failure rate, this was based on our sales records in the past 10 years.

Q5. Can you provide OEM and ODM service?

Yes, we can provide OEM and ODM product, with customized label design on the product and carton box. Or customized carton box, and laser print logo on the lamp fixture.



Q6. Can you provide the certificate and test reports?

Yes, please contact our sales staff, we can provide all the certificates, test reports, photometric reports and IES files of each of our luminaire.



Q7.How do you ship the goods and how long does it take to arrive?

We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional. Q8.What is the lead time of your product? Our standard lead time for sample is 3-5 days, and normal order lead time is 7-10 days. For the large order lead time, please also check with our sales team.
