Product Details:
Payment & Shipping Terms:
|
| Power: | 20w 30w 40w 50w 60w 70w 80w 90w 100w 120w 130w 150w | LED Chip: | Lumileds 5050 |
|---|---|---|---|
| LED Driver: | Meanwell ELG-100 | IP Rating: | IP65 |
| CCT: | 2700-6500K | Warranty: | 5 Years |
| Beam Angle: | 150X65 | Package: | 75cm×40cm×23cm (2 PCS ) |
| GW: | 2.6kg | Luminous Flux: | 8000 Lm |
| Dimmable: | Yes | CRI: | >70 |
| Input Voltage: | 100~240V AC, 50/60Hz | Housing Material: | Diecasting Aluminium |
| Housing Color: | Black / Gray / Silver / White / Customize | Lighting Solution: | Lighting And Circuitry Design, DIALux Evo Layout |
| Working Temperature: | -40-55 Degree Celsius | Photocell: | Extendable |
| High Light: | 8000lm LED Street Lamp,Lumileds 5050 LED Street Lamp,8000lm Smart Street Light |
||

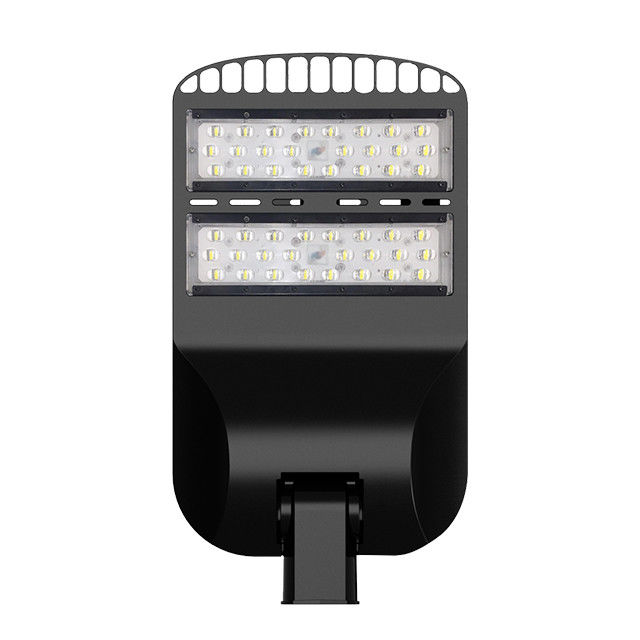

Lumileds 5050 AC240V 8000lm LED Street Lamp Photocell Time Control
Photocell time control LED street light automatically turn on and off
Installation instructions:
1. Switch off the power supply
2. Through the AC electrucal cable in the lamp pole
3. Clear the Brown / Blue / Green Yellow pole
4. Electrical wiring connection
5. Tight the screws
6. Switch ON
Oprations:
• Operation Ambient Temperature -25 to +50°C, Relative Humidity 20~90%
• Input Voltage 100~240V AC, 50/60Hz
• Storage Ambient Temperature -40 to +55°C, Relative Humidity 5~95%
• Mounting Height : Suitable for 6~18m height
(Kindly reminder: All installation steps must handl by professional electrician)
Specification:
|
Par NO Parameter |
LY-ST10050PW |
LY- ST10050WW |
LY- ST10050NW |
|
Inptut voltage |
AC100V～240V 50/60HZ / DC12-24V |
||
|
Sysem consumption(W) |
50 |
50 |
50 |
|
Luminous flux(lm) |
8255 |
8200 |
8250 |
|
Chip Brand |
Lumileds 5050 |
Lumileds 5050 |
Lumileds 5050 |
|
Beam Angle |
150*65 DEG |
150*65 DEG |
150*65 DEG |
|
CRI |
＞70 |
||
|
Color Temperature |
Warm white:3000K / Neutral white:4000K / Pure white:5000K / Cool white: 5700K |
||
|
LED Driver |
MEAN WELL HLG-60H |
||
|
Luminous efficiency(lm/w) |
＞165 |
||
|
Lifespan(hrs) |
＞50000 |
||
|
IP Rating |
IP65 |
||
|
Dimmable |
YES＆NO |
YES＆NO |
YES＆NO |
|
Size(mm) |
410x200x90 |
410x200x90 |
410x200x90 |
|
Net Weigh(kg) |
2.8 |
2.8 |
2.8 |
|
Package Size(mm) |
465*255*145 |
465*255*145 |
465*255*145 |
|
Package Quantity(Pcs) |
1 |
1 |
1 |
|
Gross Weigh(kg) |
3.3 |
3.3 |
3.3 |
Features:
Absolutely unique mold,make your lighting special and fantastic.
Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
Anti-glare and uniform light level to avoid any visual discomfort.
high quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.
Adopting LUXEON 5050 led light sources and LEYOND lens technology, 8% light efficiency higher than the same type lights in the market, with higher light transmittance up to 98%.
Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds. Adopting the popular CHEM modular design, effectively reduce the following maintenance cost.
Low energy consumption,matching high efficiency constant-current driver, 60% energy saving;with good resistance to over-current, over-voltage, lightning, high temperature, which fully ensure long life span and high stability of the products.
Durable lights with long life span up to 50000 hours; No need frequent replacements of lights and regular maintenance.
Green environmental protection, no UV light and infrared radiation, no mercury pollution.
Nice appearance and non-fouling properties, Protection class IP65.
Work without strobe, fast transient response；A wide range of working voltage.
Product Description:
Dimension:
Distribution Curve:
Applications:
- Urban road
- Secondary road
- Rural road
- High way
- Parking lot
- Park
- Sea shore
- Landscape
Package info:
Inner box Size: 465mm×255mm×145mm
Outer box Size: 580mm×485mm×310mm
Actual pictures:
