High Lumen IP66 50w solar roadway light Microwave Motion Sensor

High Lumen IP66 50w solar roadway light  Microwave Motion Sensor
High Lumen IP66 50w solar roadway light  Microwave Motion Sensor High Lumen IP66 50w solar roadway light  Microwave Motion Sensor High Lumen IP66 50w solar roadway light  Microwave Motion Sensor High Lumen IP66 50w solar roadway light  Microwave Motion Sensor

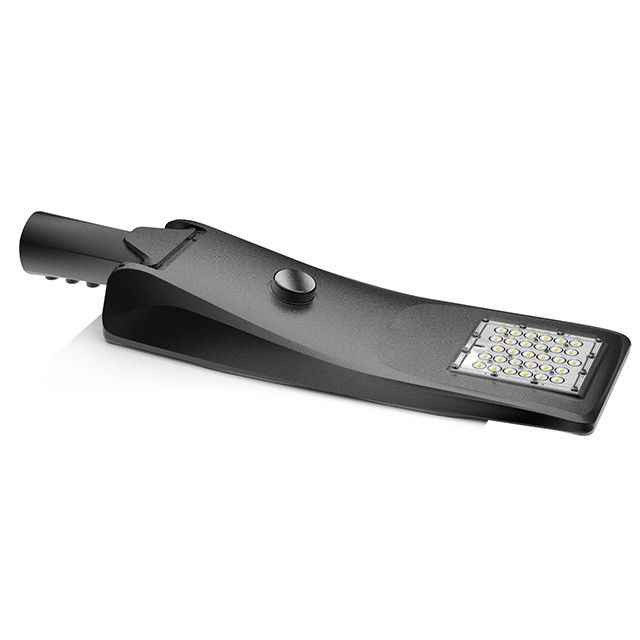

Large Image :  High Lumen IP66 50w solar roadway light Microwave Motion Sensor

Product Details:

Place of Origin: China
Brand Name: Leyond
Certification: UL,CE,ROSH
Model Number: LY-ST30050XX

Payment & Shipping Terms:

Minimum Order Quantity: 4pcs
Price: Negotiable
Packaging Details: 1set per carton with foam, strong cartons for export standard
Delivery Time: 5-7 working days
Payment Terms: T/T, Western Union or Paypal
Supply Ability: 10000 Piece/Pieces per Month
Detailed Product Description
Power: 50W Input Voltage: 12V 40Ah
Power Factor: >=0.95 Power Efficiency: >=85%
LED Luminous: >=160lm/w Warranty: 3 Years
High Light:

50w Solar Roadway Light

,

IP66 Solar Roadway Light

,

50w Roadway LED Lighting

High Lumen IP66 50w Solar Roadway Light Microwave Motion Sensor



high lumen 160lm/w 50w led street light for park and roadway



Power: 50W Product Name: Solar LED Street Light
Sensor: Microwave Motion Sensor Material: Dia-casting Aluminum+PC Lens
IP Grade: IP66 Waterproof Warranty: 3 Years



01.Features of led street lamp



1. Adopting Luxeon 5050 LED High luminous efficiency, Whole lamp output light efficienty > 145lm/w. 8% light efficiency higher than the same type lights in the market.



2. Adopting MPPT Controller, Constant pressure type. Stabilize the output voltage of the storage battery, such as constant 12V or 24V.The voltage is not adjustable, and the current varies according to the load power



3.Adopting lithium iron phosphate battery,fight the high temperature,keep long life.



4. Adopting alloy material as the main structure,with good rust prevention,corrosion protection.



5. time control + light sensor control+ motion sensor control



6. Motion and light sensor built in:solar street light goes on at dusk at 50% brightness. Can go from 50% power to full brightness when motion is detected. Three Intelligent Modes: Bright / DIM / Recharge.

* Bright: motion activates for lighting when motion is detected for security light and to save battery;

*DIM: 50% lighting for saving power when no motion;

*Off/Recharge: automatically turns off in daylight and goes into recharge mode. (working mode can be adjusted according to client's demands).



7. AC/DC Hybrid system for optional:Features a DC detection function. If DC available, the system will automatically switch to lithium battery supply when the battery voltage rise to the DC switching point; the system will automatically switch to DC power supply when the battery voltage falls to the DC switching point; if DC powers off, the system will shut off output when the battery reaches the over-discharge point after continuous discharging.



8.Warning

Do Not Open the Light Engine;

Do Not Soak the LED Street Light into Water;

When open the package please assure that the light is perfect without any damage. If any damage is found, do not install the product;

There are pc fittings for the light. It should be handled with care.



02 Specification of all in one solar led street light



Par NO. Parameter LY-ST30050PW
Battery 18650 lithium battery 12V 40Ah
Beam angle 150x65°
Pole diameter 60mm
Light output  50W
Luminous flux (lm) 8000
Solar panel 25W /18V monocrystalline silicon
CRI >70
Chip Brand LUXEON 5050
Operating time Full power >12 hours ,Intelligent mode 3-4 days
Control Mode MPPT Control+Motion Sensor
Installation height 4~8M
Housing All In One Die Casting Aluminum,Eesy to open and Installation
Optional AC/DC Hybrid System
Certifications CE/ROHS/IP66/IK09



03 Work Model of solar led street lighting



Solar panel charges in sunny daytime.Light works at night with the power stored by battery



When People leaves 8-10M away, after set times, the light will dim to set brightness



When people comes 8-10M near,the light will turn on with full brightness



04 Application of high power led street light



5000k Outdoor Led MPPT Controller Solar LED Street Light With Motion Sensor , Gray & Black Housing 1

5000k Outdoor Led MPPT Controller Solar LED Street Light With Motion Sensor , Gray & Black Housing 2



FAQ:
1. How many watt you have for solar street light ?

---- 20w, 30w,50w.60w


2. How is the warranty?

----We could offer 5 years warranty, and during our warranty:

1). Products returned within the warranty period must be Leyond product number & date code.
2). Products of unknown sources or without valid marking will not be accepted.
3). Replacement items will be sent together with customer's next order shipment.

3. What's your delivery time?

---- For sample order our delivery time is 3-5 working days. For General order, for about 8 working
days.

4. What kind of payment and shippmeng do you use?
----T/T,Westen Union,Paypal
----Fedex,UPS,DHL,TNT,HongKong Post,EMS or other ways of shippment.

5. Would you do OEM or ODM orders?

---- Sure, OEM and ODM orders are welcome

Welcome to contact our sales team for more informations, you will get professional and reliable serive in a short time.
