Product Details:
Payment & Shipping Terms:
|
| Light Source: | LED | Ip Rating: | IP 66 |
|---|---|---|---|
| Input Voltage(v): | AC100-277V | Cri (ra>): | 80,70 |
| Item Type: | LED Street Lights | Working Lifetime(hour): | 50000 |
| Warranty(year): | 5 | Lamp Luminous Flux(lm): | 20800-28800 |
| Working Temperature(℃): | -30 - 60 | Application: | ROAD,outdoor,Highway,Garden,courtyard |
| Product Name: | Sword Led Street Lights | Lamp Luminous Efficiency(lm/w): | 160 |
| Beam Angle(°): | 150*65°，153*80° | Lamp Body Material: | Aluminum |
| Color Temperature(cct): | 2700K-6500K | Power: | 130W, 140W, 150W, 160W, 170W, 180W |
| Warranty: | 5 Years | Led Light Source: | Luxeon 5050 |
| Driver: | Meanwell/Inventronics | Color: | Black/ Gray |
| High Light: | 180W LED Street Light,IP66 120 Watt Street Light,6500K 120W LED Street Light |
||

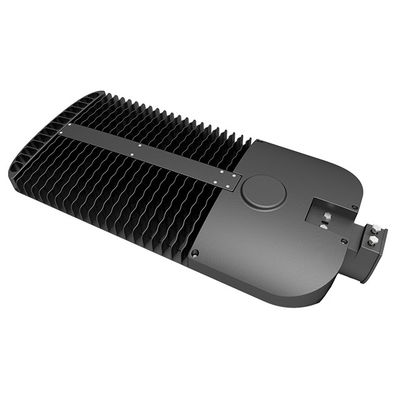

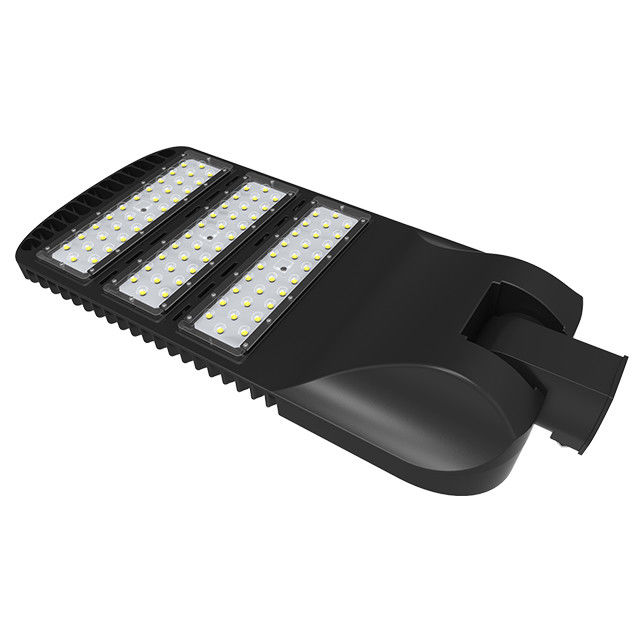

CCT 6500K 120W 130W 150W 180W LED Street Light IP66 Waterproof
Leyond 120W 130W 150W 180W LED Street Lights IP66 Waterproof
Product Specification
|
Part NO. Parameter |
LY-ST10130XX | LY-ST20140XX | LY-ST10150XX | LY-ST10160XX | LY-ST10170XX | LY-ST10180XX |
| Power | 130W | 140W | 150W | 160W | 170W | 180W |
| Luminous flux(lm) | 20800 | 22400 | 24000 | 15600 | 27200 | 28800 |
| Input Voltage | AC100~240V 50/60HZ | |||||
| Beam angle | 150*65° 153*80° | |||||
| Pole Diameter | 60mm | |||||
| Chip Brand | Luxeon 5050/Luxeon 3030 | |||||
| Driver | Meanwell/Inventronics | |||||
| CRI | >75 | |||||
| Color Temperature | Warm White: 2700K-3200K/ Neutral White: 4000-4500K/ Pure White: 5000K-6500K | |||||
| Lifespan(hrs) | >50000 | |||||
| Luminous efficiency(lm/w) | >160 | |||||
| Material | Die Cast Aluminum | |||||
| IP Rating | IP66 |
|||||
Product Features
• High quality power supply,input voltage 100-240V.The power efficiency is more than 88%, power factor>0.98,UL certification.
• Adopting Lepower LED light sources and ZAG lens technology, 8% light efficiency higher than the same type lights in the market, with higher light transmittance up to 98%.
• Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds.
• Adopting the popular CHEM modular design, effectively reduce the following maintenancecose.
• Low energy consumption, matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current,over-voltage, lightning,
high temperature, which fully ensure long life span and high stability of the products.
• Durable lights with long life spn up to 50000hours; No need replace the lights frequently just make the regular maintenance.
• Green environmental protection, no UV light and infrared radiation, no mercury pollution.
• Nice appearance and non-fouling properties, Protection class IP66.
• Work without strobe, fast transient response; A wide range of working voltage.
• 2pcs 1W chips are packaged in one LED, which ensure high stability and also reduce the death rate of the leds.
