LUXEON 5050 Solar LED Street Light 100 Watt Die Casting Aluminum

LUXEON 5050 Solar LED Street Light 100 Watt Die Casting Aluminum
LUXEON 5050 Solar LED Street Light 100 Watt Die Casting Aluminum LUXEON 5050 Solar LED Street Light 100 Watt Die Casting Aluminum LUXEON 5050 Solar LED Street Light 100 Watt Die Casting Aluminum LUXEON 5050 Solar LED Street Light 100 Watt Die Casting Aluminum

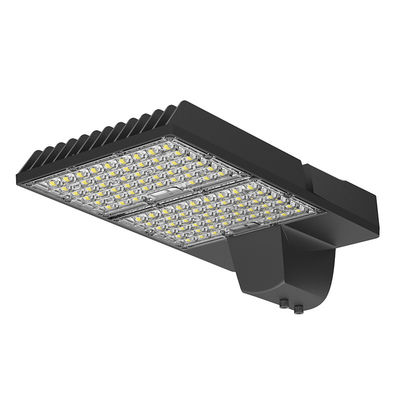

Large Image :  LUXEON 5050 Solar LED Street Light 100 Watt Die Casting Aluminum

Product Details:

Place of Origin: CHINA
Brand Name: LEYOND
Certification: CE ROHS EMC ENEC
Model Number: LY-ST70100XX

Payment & Shipping Terms:

Minimum Order Quantity: 2pcs
Price: US $265-285
Packaging Details: Neutral packing; >300pcs colar box
Delivery Time: 5-7 working days
Payment Terms: T/T
Supply Ability: 3000PCS per month
Detailed Product Description
Product Name: Seperate Solar Street Light Battery: 18650 Lithium Battery 12V 100 Ah
Luminous Flux(lm): 16000LM Chip Brand: LUXEON 5050
CRI: >70 Lifespan(hrs): >50000
IP Rating: IP66 Solar Panel: 120W /18V Monocrystalline Silicon
Control Mode: Light Control +Time Control Installation Height: 6~10M
High Light:

LUXEON 5050 Solar LED Street Light

,

IP66 100 Watt LED Solar Street Light

,

16000LM Solar Street Light 100 Watts

LUXEON 5050 Solar LED Street Light 100 Watt Die Casting Aluminum



LUXEON 5050 16000LM Separate Solar Street Lights All In 2 High Lumen






1. The lamp adopts integrated structure design, with better heat dissipation design and longer life;

2. Using LUXEON 5050 lamp beads, the whole lighting effect is up to 160lm/W;

3. The solar panel is made of monocrystalline silicon, with a higher conversion efficiency, up to 18%, and a service life of up to 25 years;

4. Using the most advanced MPPT tracking control technology to improve system efficiency and reduce costs;

5. It has functions of light control, time control, dimming, intelligent power saving + morning light;

6. Solar controller built-in lightning protection module;

7. Using ternary lithium battery technology, the battery capacity is high;

8.365 days uninterrupted power.






Par NO

LY-ST70100PW

LY-ST70100PW

LY-ST70100PW

Battery

18650 lithium battery 12V 100 Ah

Beam angle

150x70°

System consumption(W)

100W

100W

100W

Chip Brand

LUXEON 5050

LUXEON 5050

LUXEON 5050

Luminous flux(lm)

16000

16000

16000

Solar panel

120W /18V  monocrystalline silicon

Lifespan(hrs)

>50000



Operating time

Full power >12 hours ,Intelligent mode 3-4 days

Control Mode

Light Control +Time Control

Color Temperature

WW:2700-3200K / NW:4000-4500K / PW:5000-6500K

Material

Die-casting Aluminum

Installation height6

6-10M

Light Size(mm)

394x220x128

252x220x128

252x220x128

Solar panel Size (mm)

1000x670x30

1008x270x750.5

1008x270x750.5

Package Quantity(Pcs)

1

1

1

Sample Time

Immediately



Product Images

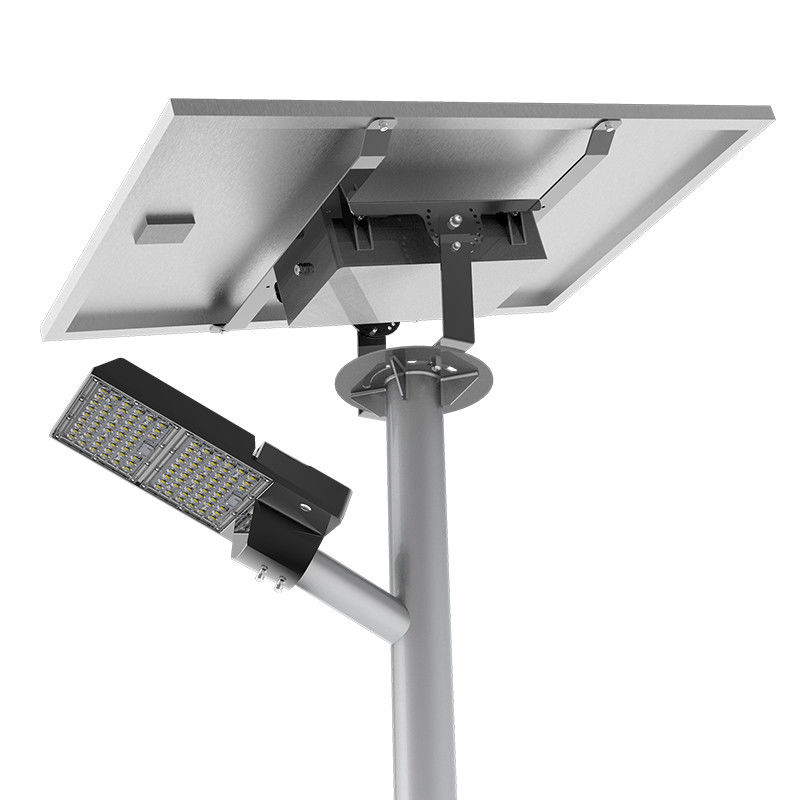

LUXEON 5050 Solar LED Street Light 100 Watt Die Casting Aluminum 2

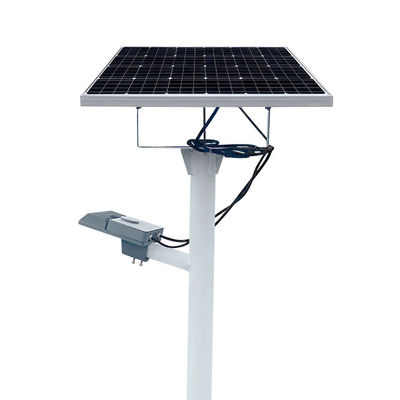

LUXEON 5050 Solar LED Street Light 100 Watt Die Casting Aluminum 3

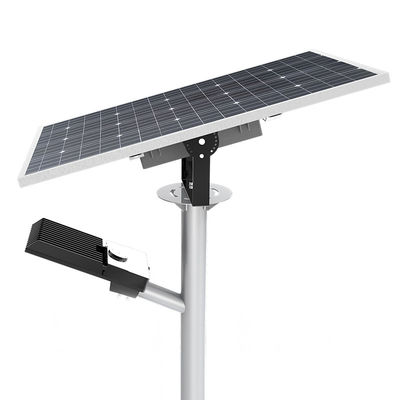

LUXEON 5050 Solar LED Street Light 100 Watt Die Casting Aluminum 4

LUXEON 5050 Solar LED Street Light 100 Watt Die Casting Aluminum 5





Project Cast Images



LUXEON 5050 Solar LED Street Light 100 Watt Die Casting Aluminum 6

LUXEON 5050 Solar LED Street Light 100 Watt Die Casting Aluminum 7



Packing Details



Inner box Size: L453*W270*H200mm
Outer box Size: L470*W285*H425mm (2 PCS LED Street Light)

LUXEON 5050 Solar LED Street Light 100 Watt Die Casting Aluminum 8



Inner box Size: L1055*W180*H725mm
Outer box Size: L1070*W375*H740mm (2 PCS Solar Panel)

LUXEON 5050 Solar LED Street Light 100 Watt Die Casting Aluminum 9



FAQ



Q1. What is your MOQ?

MOQ: 1 Pcs. Which is No MOQ.



Q2. Can I get a lower price for large quantity order?

Yes, please check with our sales staff for the details.



Q3. What is the payment terms of your formal order?

We accept payment via TT, Paypal, Western Union, and we offer EXW terms.



Q4.Can you guarantee the product quality?

We offer 3-10 years warranty to our products. We ensure and guarantee the production quality of all products, either sample order or formal order, with LEYOND's quality control process, we achieved less than 0.2% general failure rate, this was based on our sales records in the past 10 years.

Q5. Can you provide OEM and ODM service?

Yes, we can provide OEM and ODM product, with customized label design on the product and carton box. Or customized carton box, and laser print logo on the lamp fixture.



Q6. Can you provide the certificate and test reports?

Yes, please contact our sales staff, we can provide all the certificates, test reports, photometric reports and IES files of each of our luminaire.



Q7.How do you ship the goods and how long does it take to arrive?

We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional. Q8.What is the lead time of your product? Our standard lead time for sample is 3-5 days, and normal order lead time is 7-10 days. For the large order lead time, please also check with our sales team.
