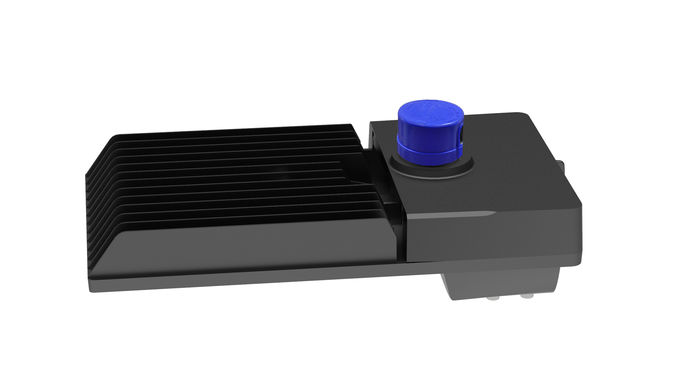

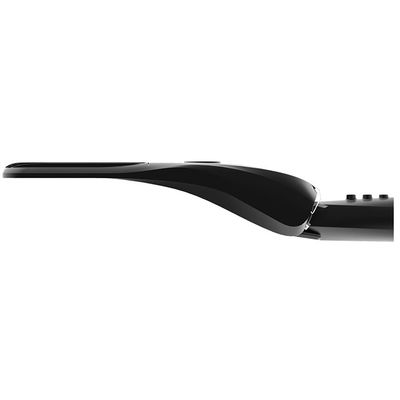

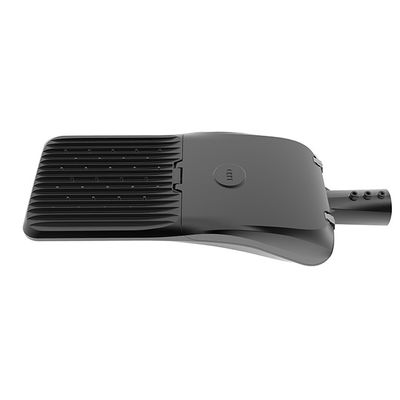

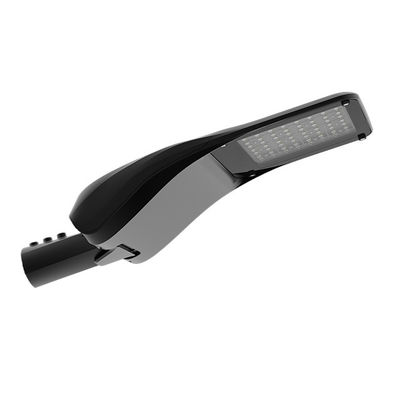

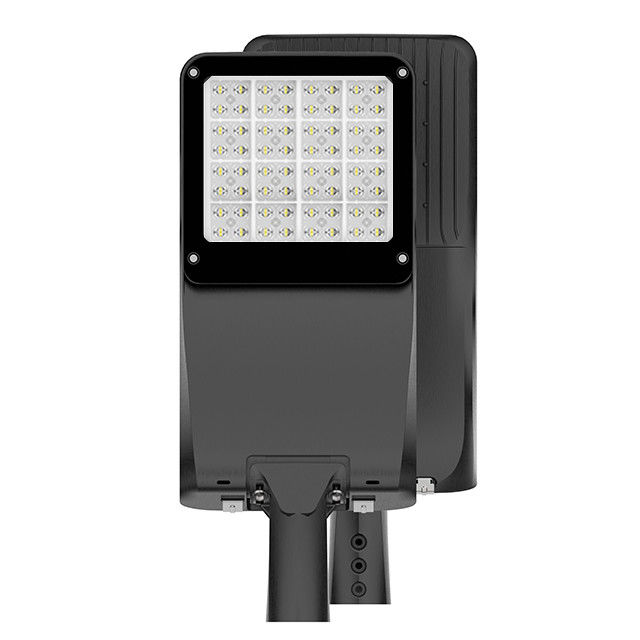

High Efficiency Ip66 Waterproof Toolless Maintenance King Led Street Light

High Efficiency Ip66 Waterproof Toolless Maintenance King Led Street Light

Features:

• Absolutely unique mold,make your lighting special and fantastic.
• Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.
• Anti-glare and uniform light level to avoid any visual discomfort.
• high quality power supply, input voltage 85-305V. The power efficiency is more than 90%, power factor greater than 0.98.
• Adopting PHILIPS LUXEON 5050 led light sources and LEYOND lens technology, 8% light efficiency higher than the same type lights in the market, higher light transmittance up to 98%.
• Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds. Adopting the popular CHEM modular design, effectively reduce the following maintenance cost.
• Low energy consumption,matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current, over-voltage, lightning, high temperature, which fully ensure long life span and high stability of the products.
• Durable lights with long life span up to 50000 hours; No need frequent replacements of lights and regular maintenance.
• Green environmental protection, no UV light and infrared radiation, no mercury pollution.
• Nice appearance and non-fouling properties, Protection class IP66.
• Work without strobe, fast transient response；A wide range of working voltage.

Assembly Electricity:

Specification:

Distribution Curve (80w)

warming:

• Do Not Use Other Devices for LED Street Light ,Installation Such as Stabilizer, Regulator …etc
• Do Not Open the Light Engine
• Do Not Soak the LED Street Light into Water
• Do Not Light up the System Without Grounding
• 1-10V dimming need to be customized

Package:

Application:

1) Daylight automatically controlling ON / OFF

 Turn-On Light Level: 10 Lux or at customer’s request

 Turn-Off Light Level: 50 Lux or at customer’s request

 Turn-On Time Delay: 10-15s

 Turn-Off Time Delay: 10-15s
