| Power: | 150W | Housing Material: | Die-casting Aluminum |
|---|---|---|---|
| Input Voltage: | AC 100-240V 50/60HZ | Power Efficiency: | >=160lm/w |
| Beamangle: | Type I/II/III/V/IV | Chip: | Lumileds Luxeon |
| High Light: | ENEC LED Street Light Fixtures,ROHS Outdoor Security LED Lights,ROHS LED Street Light Fixtures |
||

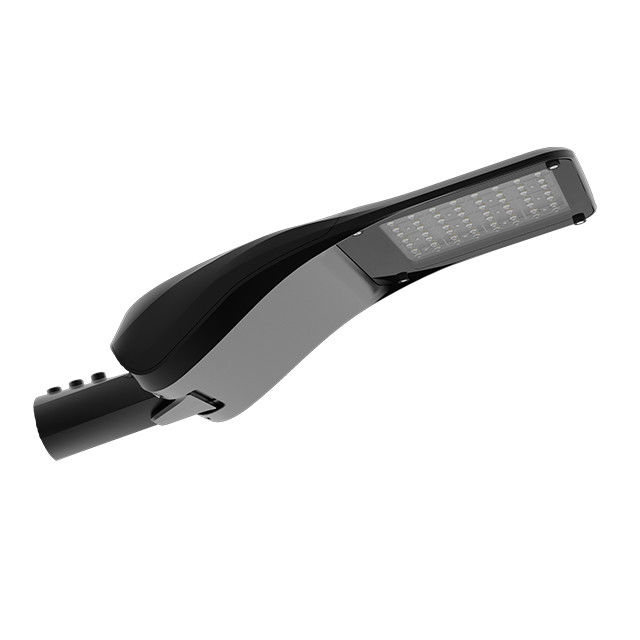

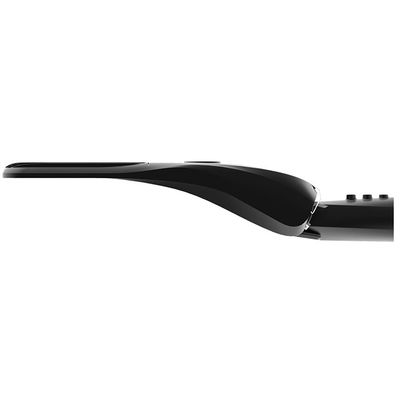

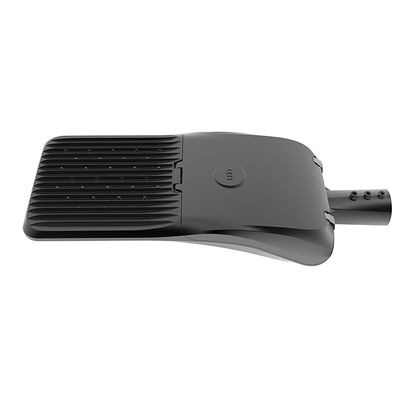

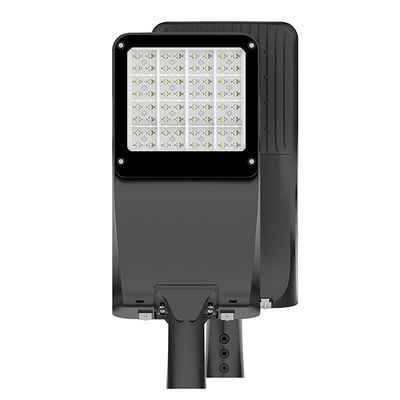

Die-Custing-Housing Aluminum High Power LED Street Light 150W With Ip66 Waterproof
Features:
High quality power supply,input voltage 100-240V.The power efficiency is more than 88%, power factor>0.98,UL certification.
• Adopting Lepower LED light sources and ZAG lens technology, 8% light efficiency higher than the same type lights in the market, with higher light transmittance up to 98%.
• Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds. Adopting the popular CHEM modular design, effectively reduce the following maintenancecose.
• Low energy consumption, matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current,over-voltage, lightning, high temperature, which fully ensure long life span and high stability of the products.
• Durable lights with long life spn up to 50000hours; No need replace the lights frequently just make the regular maintenance.
• Green environmental protection, no UV light and infrared radiation, no mercury pollution.
• Nice appearance and non-fouling properties, Protection class IP66.
• Work without strobe, fast transient response; A wide range of working voltage.
• 2pcs 1W chips are packaged in one LED, which ensure high stability and also reduce the death rate of the leds
Specification:
|
Par NO Parameter |
LY-ST50150PW | LY- ST50150WW | LY- ST50150NW |
| Inptut voltage | AC100V～240V 50/60HZ // DC12-24V | ||
| Sysem consumption(W) | 150 | 150 | 150 |
| Luminous flux(lm) | 18700 | 16500 | 18000 |
| Chip Brand | LUXEON 5050/LEYOND 5050 | LUXEON 5050/LEYOND 5050 | LUXEON 5050/LEYOND 5050 |
| Beam Angle | 150*65 DEG | 150*65 DEG | 150*65 DEG |
| CRI | ＞70 | ||
| Color Temperature | Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K | ||
| LED Driver | LEYOND | ||
| Luminous efficiency(lm/w) | ＞160 | ||
| Lifespan(hrs) | ＞50000 | ||
| IP Rating | IP66 | ||
| Dimmable | YES＆NO | YES＆NO | YES＆NO |
| Size(mm) |
767*300*149
|
767*300*149
|
767*300*149 |
| Net Weigh(kg) | 6.3 | 6.3 | 6.3 |
| Package Size(mm) |
810*335*200
|
810*335*200 | 810*335*200 |
| Package Quantity(Pcs) | 1 | 1 | 1 |
| Gross Weigh(kg) | 7.8 | 7.8 | 7.8 |
Distribution Curve (150w)
warming:
Operation and storage condition:
Package:
Certification:
Application:
