Product Details:
Payment & Shipping Terms:
|
| Light Source: | LED | Ip Rating: | IP 66 |
|---|---|---|---|
| Input Voltage(v): | AC100-277V | Cri (ra>): | 80 |
| Item Type: | Street Lights | Working Lifetime(hour): | 50000 |
| Warranty(year): | 5 | Lamp Luminous Flux(lm): | 9600 |
| Working Temperature(℃): | -30 - 60 | Application: | ROAD,outdoor,Highway,Garden,courtyard |
| Lamp Luminous Efficiency(lm/w): | 160 | Beam Angle(°): | 150*60 |
| Lamp Body Material: | Die Casting Aluminum+PC | Color Temperature(cct): | 2700K-6500K |
| Led Light Source: | Luxeon 5050 | Driver: | Meanwell/Inventronics |
| High Light: | 60W LED Street Light,60W LED Street Lights,ENEC Commercial LED Street Lights |
||

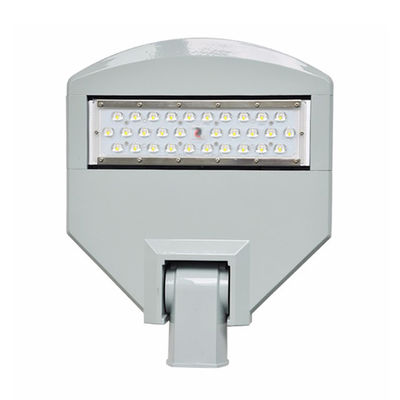

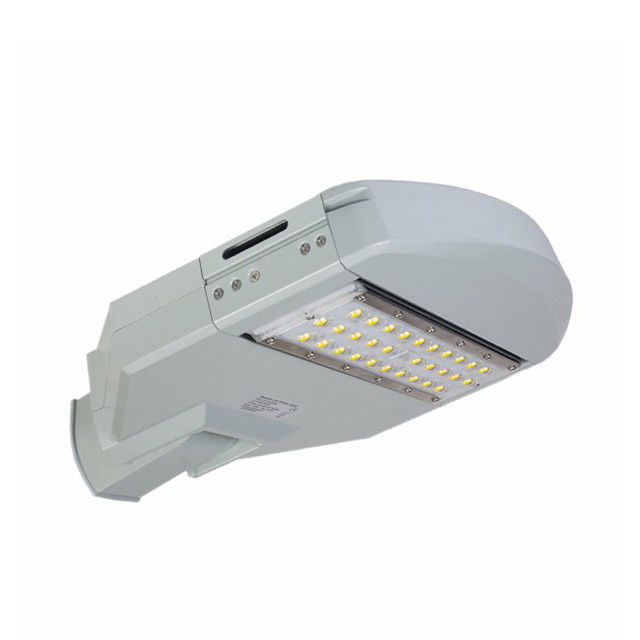

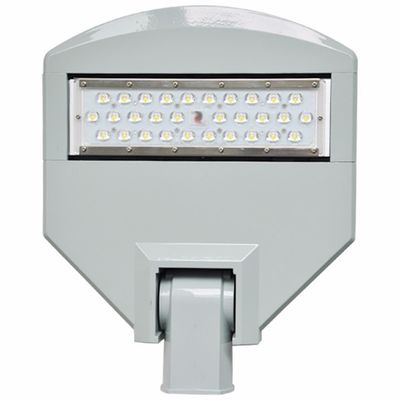

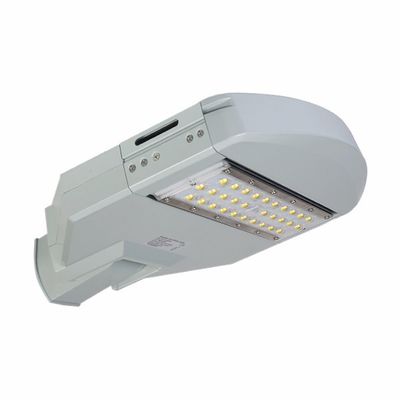

CE Rohs ENEC Certificated Outdoor 60W LED Street Lights For Highway
Product Specification:
|
Part NO. Parameter |
LY-ST21060XX | LY-ST21090XX | LY-ST21100XX | LY-ST22120XX |
| Power | 60W | 90W | 100W | 120W |
| Luminous flux(lm) | 9600 | 14400 | 16000 | 19200 |
| Input Voltage | AC100~240V 50/60HZ | |||
| Beam angle | 150*65° | |||
| Pole Diameter | 60mm | |||
| Chip Brand | Luxeon 5050 | |||
| Driver | Meanwell/Inventronics | |||
| CRI | >75 | |||
| Color Temperature | Warm White: 2700K-3200K/ Neutral White: 4000-4500K/ Pure White: 5000K-6500K | |||
| Lifespan(hrs) | >50000 | |||
| Luminous efficiency(lm/w) | >160 | |||
| Material | Die Cast Aluminum | |||
| IP Rating | IP66 | |||
Product Features
• High quality power supply,input voltage 100-240V.The power efficiency is more than 88%, power factor>0.98,UL certification.
• Adopting Lepower LED light sources and ZAG lens technology, 8% light efficiency higher than the same type lights in the market, with higher light transmittance up to 98%.
• Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds.
• Adopting the popular CHEM modular design, effectively reduce the following maintenancecose.
• Low energy consumption, matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current,over-voltage, lightning,
high temperature, which fully ensure long life span and high stability of the products.
• Durable lights with long life spn up to 50000hours; No need replace the lights frequently just make the regular maintenance.
• Green environmental protection, no UV light and infrared radiation, no mercury pollution.
• Nice appearance and non-fouling properties, Protection class IP66.
• Work without strobe, fast transient response; A wide range of working voltage.
• 2pcs 1W chips are packaged in one LED, which ensure high stability and also reduce the death rate of the leds.
Distribution Curve:(60w)
Dimension:
Optional function:
Daylight automatically controlling ON / OFF
Applications:
Suitable for the street lighting at highways, urban roads and secondary roads, stadiums, sidewalks,
residential areas, industrial areas, squares, parks, schools, villas, gardens and other places.
