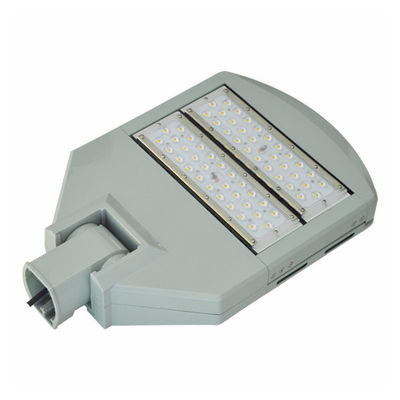

Toolless Maintance 80 CRI Smart Street Light With CE CB EMEC Certification

Toolless Maintance 80 CRI Smart Street Light With CE CB EMEC Certification
Toolless Maintance 80 CRI Smart Street Light With CE CB EMEC Certification Toolless Maintance 80 CRI Smart Street Light With CE CB EMEC Certification Toolless Maintance 80 CRI Smart Street Light With CE CB EMEC Certification Toolless Maintance 80 CRI Smart Street Light With CE CB EMEC Certification

Large Image :  Toolless Maintance 80 CRI Smart Street Light With CE CB EMEC Certification

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Leyond
Certification: CE, ROHS, EMEC
Model Number: LY-ST21090XX

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs/week
Contact Now
Detailed Product Description
Light Source: LED Ip Rating: IP 66
Input Voltage(v): AC100-277V Cri (ra>): 80
Item Type: Street Lights Working Lifetime(hour): 50000
Warranty(year): 5 Lamp Luminous Flux(lm): 14400
Working Temperature(℃): -30 - 60 Application: ROAD,outdoor,Highway,Garden,courtyard
Lamp Luminous Efficiency(lm/w): 160 Beam Angle(°): 150*60
Lamp Body Material: Die Casting Aluminum+PC Color Temperature(cct): 2700K-6500K
Led Light Source: Luxeon 5050 Driver: Meanwell/Inventronics
High Light:

80CRI Smart Street Light

,

80CRI LED Light Street

,

EMEC Smart Street Light

Toolless Maintance 80 CRI Smart Street Light With CE CB EMEC Certification



Toolless Maintance Ip66 Waterproof Classic Led Street Light With CE CB Certification



Product Specification:

Part NO.

Parameter

LY-ST21060XX

LY-ST21090XX

LY-ST21100XX

LY-ST22120XX

Power

60W

90W

100W

120W

Luminous flux(lm)

9600

14400

16000

19200

Input Voltage

AC100~240V 50/60HZ

Beam angle

150*65°

Pole Diameter

60mm

Chip Brand

Luxeon 5050

Driver

Meanwell/Inventronics

CRI

>75

Color Temperature

Warm White: 2700K-3200K/ Neutral White: 4000-4500K/ Pure White: 5000K-6500K

Lifespan(hrs)

>50000

Luminous efficiency(lm/w)

>160

Material

Die Cast Aluminum

IP Rating

IP66




Optional function:



1)Daylight automatically controlling ON / OFF

 Turn-On Light Level: 10 Lux or at customer’s request
 Turn-Off Light Level: 50 Lux or at customer’s request
 Turn-On Time Delay: 10-15s
 Turn-Off Time Delay: 10-15s

2) Zigbee remote communication controlling
ZIGBEE controller conforms to IEEE802.15.4 protocol of ZIGBEE
communication standard. It has the advantages of remote communication,
strong anti-interference capability and flexible networking, realizing
peer-to-peer and peer-to-multi peer transparent data transmission among
devices, and constructing star network or mesh network topology.
ZIGBEE controller consists of a current and voltage measurement
circuit, which collect real-time load performance and power consumption of
street lig

Warning
l Do Not Use Other Devices for LED Street Light ,Installation Such as
Stabilizer, Regulator …etc
l Do Not Open the Light Engine
l Do Not Soak the LED Street Light into Water
l Do Not Light up the System Without Grounding
l 1-10V dimming need to be customized







Distribution Curve:(60w)

High Lumens 160lm/W Waterproof LED Street Lighting 50W IP66 60Hz With Aluminum Material 3

Dimension:

Toolless Maintance 80 CRI Smart Street Light With CE CB EMEC Certification 1

Applications:

Suitable for the street lighting at highways, urban roads and secondary roads, stadiums, sidewalks,

residential areas, industrial areas, squares, parks, schools, villas, gardens and other places.

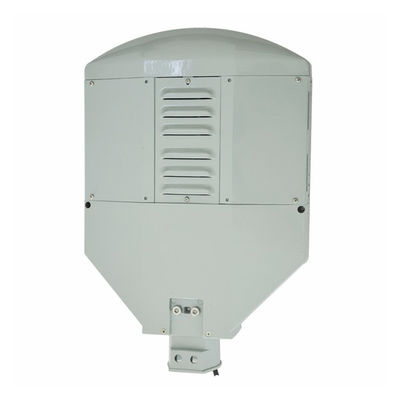

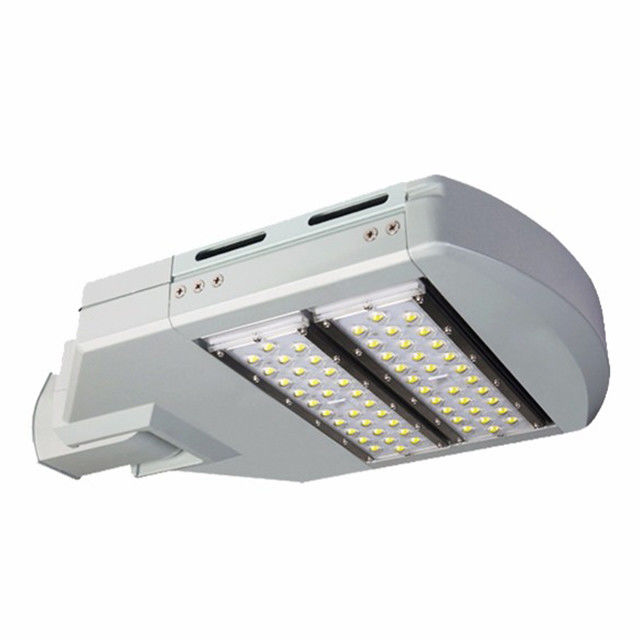

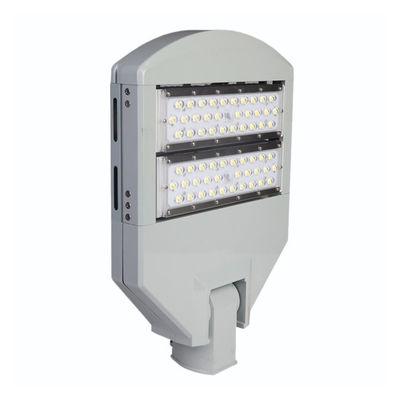

Product Details

Toolless Maintance 80 CRI Smart Street Light With CE CB EMEC Certification 2Toolless Maintance 80 CRI Smart Street Light With CE CB EMEC Certification 3Toolless Maintance 80 CRI Smart Street Light With CE CB EMEC Certification 4





Assembly –Electricity:

80Watt IP66 Waterproof High Brightness LED Street Lights 2700k / 4000k / 5000k For Roadway 2
