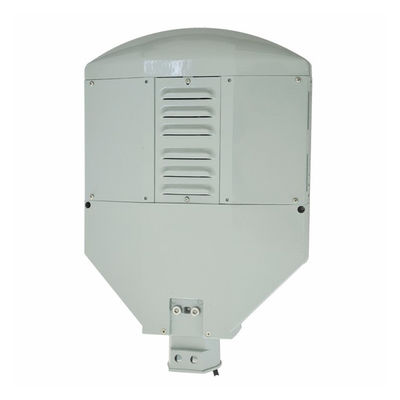

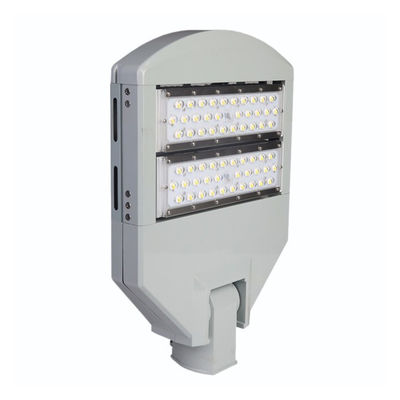

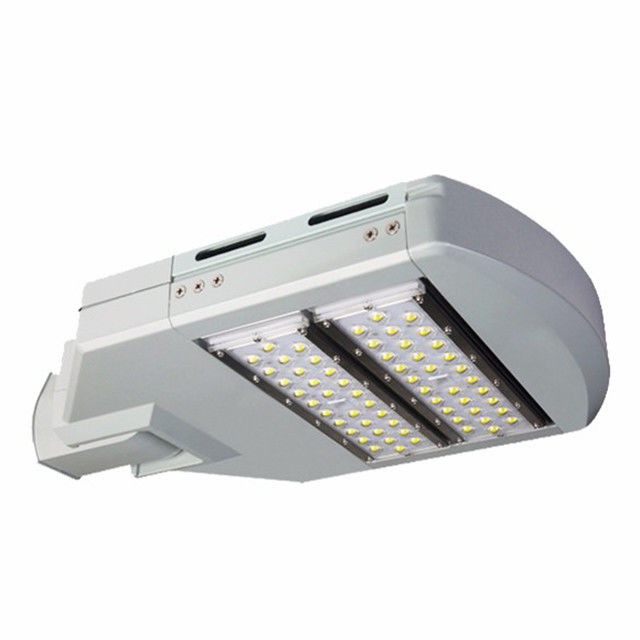

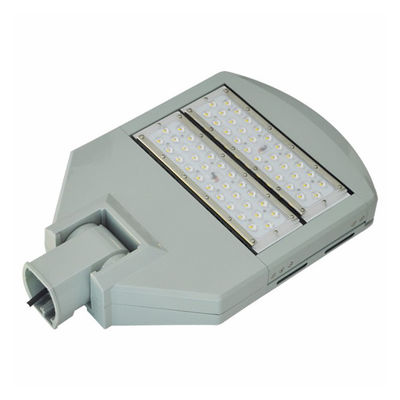

100w Ip66 Waterproof High Efficiency Classic Led Street Light

100w Ip66 Waterproof High Efficiency Classic Led Street Light
100w Ip66 Waterproof High Efficiency Classic Led Street Light 100w Ip66 Waterproof High Efficiency Classic Led Street Light 100w Ip66 Waterproof High Efficiency Classic Led Street Light 100w Ip66 Waterproof High Efficiency Classic Led Street Light

Large Image :  100w Ip66 Waterproof High Efficiency Classic Led Street Light

Product Details:

Place of Origin: Shenzhen, China
Brand Name: Leyond
Certification: CE, ROHS, ENEC
Model Number: LY-ST21100XX

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: carton
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 pcs/week
Detailed Product Description
Light Source: LED Ip Rating: IP 66
Input Voltage(v): AC100-277V Cri (ra>): 80
Item Type: Street Lights Working Lifetime(hour): 50000
Warranty(year): 5 Lamp Luminous Flux(lm): 16000
Working Temperature(℃): -30 - 60 Application: ROAD,outdoor,Highway,Garden,courtyard
Lamp Luminous Efficiency(lm/w): 160 Beam Angle(°): 150*60
Lamp Body Material: Die Casting Aluminum+PC Color Temperature(cct): 2700K-6500K
Led Light Source: Luxeon 5050 Driver: Meanwell/Inventronics
High Light:

LED Solar Street Light

,

LED Road Lighting

,

Luminaire Outdoor Lighting

100w Ip66 Waterproof High Efficiency Classic Led Street Light



Product Specification:

Part NO.

Parameter

LY-ST21060XX LY-ST21090XX LY-ST21100XX LY-ST22120XX
Power 60W 90W 100W 120W
Luminous flux(lm) 9600 14400 16000 19200
Input Voltage AC100~240V 50/60HZ
Beam angle 150*65°
Pole Diameter 60mm
Chip Brand Luxeon 5050
Driver Meanwell/Inventronics
CRI >75
Color Temperature Warm White: 2700K-3200K/ Neutral White: 4000-4500K/ Pure White: 5000K-6500K
Lifespan(hrs) >50000
Luminous efficiency(lm/w) >160
Material Die Cast Aluminum
IP Rating IP66



Operation and Storage Condition:
 Operation Ambient Temperature -20 to +50°C, Relative Humidity 20~90%
 Input Voltage 85~265V AC, 50/60Hz
 Storage Ambient Temperature -20 to +65°C, Relative Humidity 10~90%
 Mounting Height : Suitable for 5~10m height


Product Features

High quality power supply,input voltage 100-240V.The power efficiency is more than 88%, power factor>0.98,UL certification.

Adopting Lepower LED light sources and ZAG lens technology, 8% light efficiency higher than the same type lights in the market, with higher light transmittance up to 98%.

Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds.

Adopting the popular CHEM modular design, effectively reduce the following maintenancecose.

Low energy consumption, matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current,over-voltage, lightning,

high temperature, which fully ensure long life span and high stability of the products.

Durable lights with long life spn up to 50000hours; No need replace the lights frequently just make the regular maintenance.

Green environmental protection, no UV light and infrared radiation, no mercury pollution.

Nice appearance and non-fouling properties, Protection class IP66.
Work without strobe, fast transient response; A wide range of working voltage.
2pcs 1W chips are packaged in one LED, which ensure high stability and also reduce the
death rate of the leds.

Distribution Curve:(60w)

High Lumens 160lm/W Waterproof LED Street Lighting 50W IP66 60Hz With Aluminum Material 3

100w Ip66 Waterproof High Efficiency Classic Led Street Light 1

Dimension:

100w Ip66 Waterproof High Efficiency Classic Led Street Light 2

Applications:

Suitable for the street lighting at highways, urban roads and secondary roads, stadiums, sidewalks,

residential areas, industrial areas, squares, parks, schools, villas, gardens and other places.

100w Ip66 Waterproof High Efficiency Classic Led Street Light 3

Certification:

240 Volt IP66 Waterproof Outdoor LED Street Lights 60W With 150°*65° Beam Angle 4

Product Details

100w Ip66 Waterproof High Efficiency Classic Led Street Light 5100w Ip66 Waterproof High Efficiency Classic Led Street Light 6





Assembly –Electricity:

80Watt  IP66 Waterproof High Brightness  LED Street Lights 2700k / 4000k / 5000k For Roadway 2

Warning
l Do Not Use Other Devices for LED Street Light ,Installation Such as
Stabilizer, Regulator …etc
l Do Not Open the Light Engine
l Do Not Soak the LED Street Light into Water
l Do Not Light up the System Without Grounding
l 1-10V dimming need to be customized
