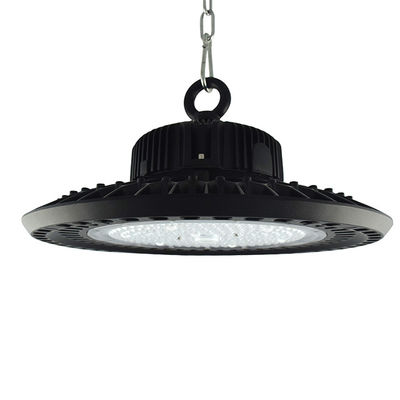

Industrial IP65 80CRI LED High Bay Light 150w Linear Metal Housing

Industrial IP65 80CRI LED High Bay Light 150w Linear Metal Housing
Industrial IP65 80CRI LED High Bay Light 150w Linear Metal Housing Industrial IP65 80CRI LED High Bay Light 150w Linear Metal Housing Industrial IP65 80CRI LED High Bay Light 150w Linear Metal Housing

Large Image :  Industrial IP65 80CRI LED High Bay Light 150w Linear Metal Housing

Product Details:

Place of Origin: China
Brand Name: Leyond
Certification: CE, ROHS, ENEC ,CB
Model Number: LY-HB39150XX

Payment & Shipping Terms:

Minimum Order Quantity: 20 pcs
Price: Negotiable
Packaging Details: Carton box package
Delivery Time: 5-8day
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10000 month
Detailed Product Description
Light Source: Lumileds Luxeon3030 Ip Rating: IP 65
Item Type: High Bay Lights Warranty(year): 5
Application: Outdoor Lamp Body Material: Aluminum
Working Temperature(℃): -30 -+ 60 Lamp Luminous Efficiency(lm/w): >130
Color Temperature(cct): WW :2700K-3000K NW:4000K-4500K CW:5000K-6500K
High Light:

80CRI LED High Bay Light

,

IP65 LED High Bay 150w

,

80CRI UFO High Bay Light

Industrial IP65 80CRI LED High Bay Light 150w Linear Metal Housing



The most seller industria Ip65 metal housing 150w LED linear ufo high bay water proof lighting



Ip66 Waterproof CRI 70 LED UFO High Bay Light With 60 90 120 Degree Beam Angle



Feature

Up to120LM/W high light efficacy , 50000h above lifespan, 5 Years warranty, cost effective



Power supply key components adopt world brand , No flicker , no delay, Instant on / off



Designed for hook type , can be directly replaced is used to quick and easy



Installation to minimize retrofit and maintenance costs



Small size , less weight and durable is the best choice for warehouses , stadiums , exhibition spaces , high ceiling lights.



Using imported chip, LED encapsulation structure optimization , to achieve low light failure , high photosynthetic efficiency , energy conservation and environmental protection advantages.





Technical parameter

Par NO Parameter LY-HB39150WW LY-HB39150NW LY-HB39150PW
Inptut voltage AC100V~240V 50/60HZ
Sysem consumption(W) ≤102 ≤102 ≤102
Light Fixture Luminance(lm) 18200 18800 19500
LED type SMD3030 SMD3030 SMD3030
LED QTY 120 120 120
System Efficiency >90% >90% >90%
Driver MEAN WELL
Beam Angle 120° 120° 120°
CRI >80 >80 >80
Color Temperature(CREE) 2700-3200k 4000-4500k 5000-6500k
Meterial Magnesium Aluminum + PC cover
Lifespan(hrs) >50000
IP Rating IP66
Product Size(mm) Φ325X188 Φ325*188 Φ325X188
NET Weight(KG) 3.2 3.2 3.2






structure



Industrial IP65 80CRI LED High Bay Light 150w Linear Metal Housing 0





  • Distribution Curve

Industrial IP65 80CRI LED High Bay Light 150w Linear Metal Housing 1





Industrial IP65 80CRI LED High Bay Light 150w Linear Metal Housing 2

package

Carton Size: 360mm×360mm×200mm
Net weight:2.6KG Gross weight:3.7KG
Industrial IP65 80CRI LED High Bay Light 150w Linear Metal Housing 3

production



Industrial IP65 80CRI LED High Bay Light 150w Linear Metal Housing 4

Industrial IP65 80CRI LED High Bay Light 150w Linear Metal Housing 5Industrial IP65 80CRI LED High Bay Light 150w Linear Metal Housing 6



FAQ:



1. How to choose LED light source?

A: Lumens(LM), light efficiency (LM/W), Life span (hrs) are very important factors when choosing LED light source. The higher, the better. Besides, brand of LED chip, LED base and other materials will influence the product reliability.



2. Why choose Leyond Lighting?

A: Client-oriented, technology first, hornest operation is our business philosophy. Leyong always treat the clients benefit as the most important thing. So, we use the top brand material to produce high quality product.



3. What can Leyond offer?

A: Our products covers a wide range. We can offer you, LED flood light, LED high bay, LED Canopy Light, LED module, LED Street Light, ect.



4. How to place an order?

A: Contact our sales representatives by email, skype or making a call, we will soon send you confirm with you for your detailed requirements. Then we send you PI for your approval and payment. You can choose wire transfer, PayPal, west union to send us payment.



5. How long will be the lead time?

A. This will be subject to your order quantity. Normally, below 5,000pcs, we will deliver within 15 working days. For large quantity, please confirm with your order.



6. How long will the warranty period last?

A: We usually offer 5 years free warranty. More detailed warranty policy, please contact our sales representatives.
