100w IP68 Waterproof LED Street Lights 4mm Thick Tempered glass Cover

Certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
Customer Reviews
I am very satisfied with your company in terms of quality.

—— Mr Frank

Hello Ada; I wish you have enoyed your holidays. Yes we tested the sample lamp, and we are very satisfy with the quality.

—— Ms.Valentina

I'm Online Chat Now

100w IP68 Waterproof LED Street Lights 4mm Thick Tempered glass Cover

100w IP68 Waterproof LED Street Lights 4mm Thick Tempered glass Cover
100w IP68 Waterproof LED Street Lights 4mm Thick Tempered glass Cover

Large Image :  100w IP68 Waterproof LED Street Lights 4mm Thick Tempered glass Cover

Product Details:

Place of Origin: Guangdong, China
Brand Name: LEYOND
Certification: TUV, CE, RoHS, CB, ENEC, GS, SAA, UL, DLC, FCC, SASO
Model Number: LY-ST-50100XX

Payment & Shipping Terms:

Minimum Order Quantity: 20pcs
Price: 80$-88$ Depend on order quantity
Packaging Details: Neutral Export Packing, each lamp with an individual inner carton, 2 inner cartons load into 1 outer carton
Delivery Time: 7-10 days
Supply Ability: 30000pcs/month
Detailed Product Description
Power: 80w 100w LED Chip: Lumileds 5050
Glass Cover: Tempered Glass Cover 4mm IP: 68
CCT: 3000K / 4000K / 5000K / 6000K Material: Die-casting Aluminum + PC
Warranty: 5 Years Beam Angle: 150X65 Degree
Light Efficiency: 165lm/w CRI: Ra>70
Lead Time: 7-10 Days Working Temperature: -40-55 Degree Celsius
Applications: Road / Highway / Park / Path / Parking Lot
High Light:

IP68 Waterproof LED Street Lights

,

100w Waterproof LED Street Lights

,

IP68 Street Light Waterproof

100w IP68 Waterproof LED Street Lights 4mm Thick Tempered Glass Cover



Time control Smart Photocell 100w IP68 Waterproof LED Street Lights 4mm Thick Temperedglass Cover



80w 100w 4mm Thickness Temperedglass Cover IP68 High Efficiency LED Street Light



Features:



1. Absolutely unique mold,make your lighting special and fantastic.



2.Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.



3. Anti-glare and uniform light level to avoid any visual discomfort.



4. High quality power supply, input voltage 85-305V. The power efficiency is more than 90%, power factor greater than 0.98.



5. Adopting LUXEON 5050 led light sources and LEYOND lens technology, 8% light efficiency higher than the same type lights in the market, higher light transmittance up to 96%.



6. Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds. Adopting the popular CHEM modular design, effectively reduce the following maintenance cost.



7. Low energy consumption,matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current, over-voltage, lightning, high temperature, which fully ensure long life span and high stability of the products. l Durable lights with long life span up to 50000 hours; No need frequent replacements of lights and regular maintenance.



8. Green environmental protection, no UV light and infrared radiation, no mercury pollution.



9. Nice appearance and non-fouling properties, Protection class IP66.



10. Work without strobe, fast transient response;A wide range of working voltage.



Specification:

  Par NO
Parameter LY-ST50100PW LY-ST50100WW LY-ST50100NW
LED driver Inventronics EUM-100
Beam angle 150x65° 150x65° 150x65°
Pole diameter 60MM 60MM 60MM
Light output 100W 100W 100W
Luminous flux(lm) 16800 16500 16750
Chip Brand LUXEON 5050 LUXEON 5050 LUXEON 5050
LED Chip LUMILEDS 5050
CRI >70
Color Temperature Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K
Operating time Full power programable, Smart mode programable
Control Mode Light Control + Photocell
Material Die Casting Aluminum
Luminous efficiency(lm/w) >160
Lifespan(hrs) >50000
IP Rating IP66
Installation height 6~10M
Size(mm) 722x300x149 722x300x149 722x300x149
Net Weigh(kg) 5.9 5.9 5.9
Package Size(mm) 765x335x200 765x335x200 765x335x200
Package Quantity(Pcs) 1 1 1
Gross Weigh(kg) 7.1 7.1



7.1



Product descreption:

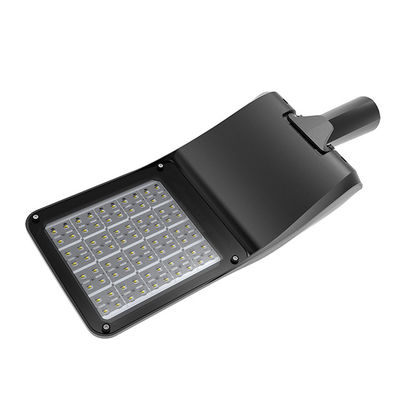

100w IP68 Waterproof LED Street Lights 4mm Thick Tempered glass Cover 0

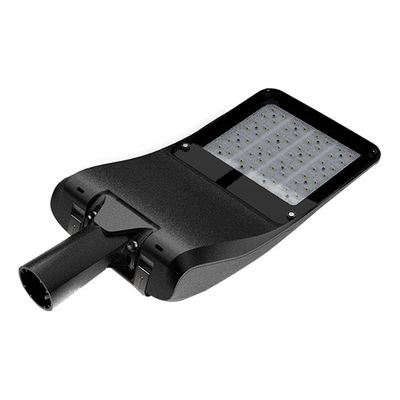

100w IP68 Waterproof LED Street Lights 4mm Thick Tempered glass Cover 1

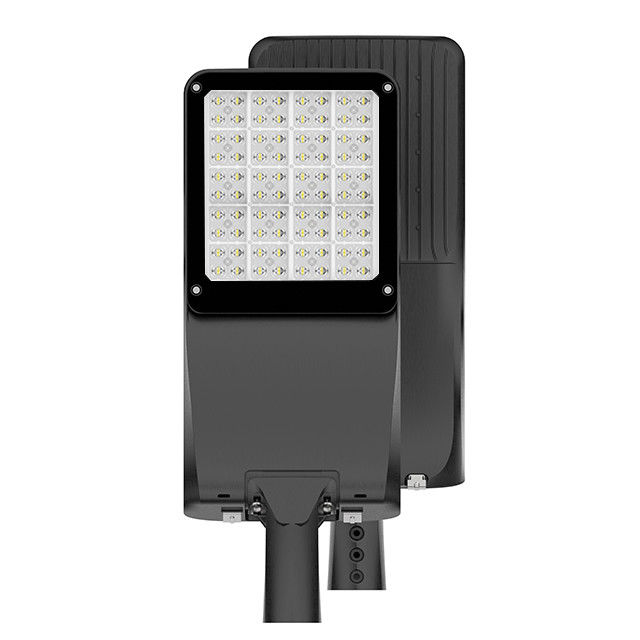

100w IP68 Waterproof LED Street Lights 4mm Thick Tempered glass Cover 2

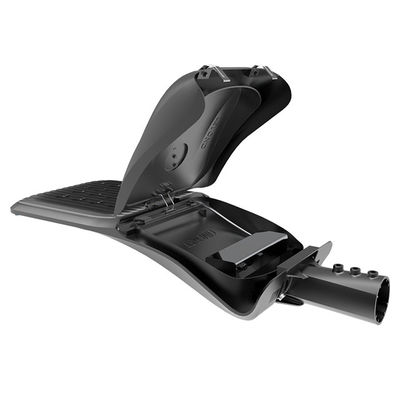

100w IP68 Waterproof LED Street Lights 4mm Thick Tempered glass Cover 3

Installation method:

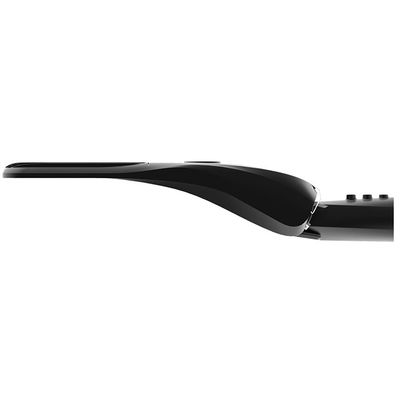

100w IP68 Waterproof LED Street Lights 4mm Thick Tempered glass Cover 4









Distribution Curve:



100w IP68 Waterproof LED Street Lights 4mm Thick Tempered glass Cover 5



Applications:



- Road

- Highway

- Parking lot

- Rural road

- Landscape

- Walkway

- Path





Package info:

Inner box Size: 765mm×335mm×200mm

Outer box Size: 780mm×350mm×435mm

100w IP68 Waterproof LED Street Lights 4mm Thick Tempered glass Cover 6

Actual pictures:

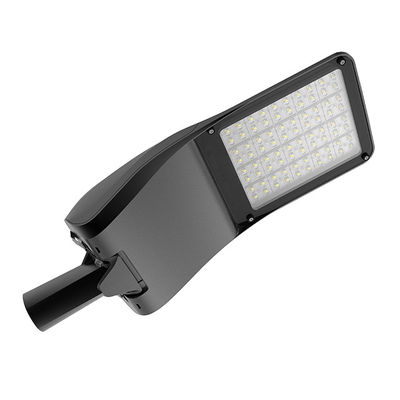

100w IP68 Waterproof LED Street Lights 4mm Thick Tempered glass Cover 7

100w IP68 Waterproof LED Street Lights 4mm Thick Tempered glass Cover 8





FAQ:



- What about the lead time?

A:Sample needs 7 days, mass production time needs 1-2 weeks for order quantity more than



- Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available



- How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.



- How to proceed an order for led light?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.



- Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



- Do you offer guarantee for the products?

A: Yes, we offer 5 years warranty to our products.



- How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
