Led Parking Lot Lighting IP66 High Power 80w Lamp Led Street Light Housing

Led Parking Lot Lighting IP66 High Power 80w Lamp Led Street Light Housing
Led Parking Lot Lighting IP66 High Power 80w Lamp Led Street Light Housing Led Parking Lot Lighting IP66 High Power 80w Lamp Led Street Light Housing Led Parking Lot Lighting IP66 High Power 80w Lamp Led Street Light Housing Led Parking Lot Lighting IP66 High Power 80w Lamp Led Street Light Housing

Large Image :  Led Parking Lot Lighting IP66 High Power 80w Lamp Led Street Light Housing

Product Details:

Place of Origin: China
Brand Name: Leyond
Certification: CE,ROHS,ISO
Model Number: LY-ST81080XX

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton package
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 5000pcs/mon
Contact Now
Detailed Product Description
Beam Angle: 150*80 Degree Product Name: LED Street Light
Warranty: 5 Years High Efficiency: 160lm/w
Power: 80W Chip Brand: 5050
Driver: Meanwell
High Light:

ENEC LED Street Light Fixtures

,

ROHS Outdoor Security LED Lights

,

ROHS LED Street Light Fixtures

Led Parking Lot Lighting IP66 High Power 80w Lamp Led Street Light Housing



Features

  • The shell adopts die-casting integral molding, which has higher safety and longer life.
  • The product has a beautiful appearance and curved lines, which effectively reduces wind resistance;
  • The product has a smooth surface and self-cleaning function, which effectively reduces dust accumulation;
  • Using Philips 5050 lamp beads, the luminous efficiency is as high as 160lm/w
  • The optical lens adopts Japanese PC material, with a light transmittance of over 93%, anti-ultraviolet rays, and good product stability;
  • The lamp is equipped with a level gauge for positioning, which is more time-saving and beautiful in installation
  • Waterproof and dustproof grade: IP66, protection grade IK10;
  • The product is equipped with other more optional functions: light controller, circuit breaker, single lamp controller, anti-falling sling, etc.

Led Parking Lot Lighting IP66 High Power 80w Lamp Led Street Light Housing 0



Specification:



Par NO

Parameter

 LY-ST81020XX LY-ST81030XX LY-ST81040XX LY-ST81050XX LY-ST81060XX
Input voltage AC100V～277V 50/60HZ / DC12-24V
POWER(W) 20W 30W 40W 50W 60W
Luminous flux(lm) 3200 4740 6200 7650 9000
Chip Brand LUXEON5050
LED Quantity (pcs) 18
Beam Angle TYPE III 150*80
CRI 70/80
Color Temperature Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K
Luminous efficiency(lm/w) ＞160 ＞158 ＞155 ＞153 ＞150
LED Driver MEAN WELL / INVENTRONICS
Lifespan(h) ＞50000
IP Rating / IK IP66 / IK10
Material ADC 12
Dimmable 1-10V/DALI
Light body color Black/Grey
working environment Temperature -20 to +45°C, Relative Humidity 20~90%
Storage environment Temperature -20 to +60°C, Relative Humidity 5~95%
Size(mm) L580*W180*H106mm (L22.83*W7.09*H4.17Inch)
Net Weigh(kg) 2.5kg
Package Size(mm) L614*W222*H162mm (L24.17*W8.74*H6.38inch)
Package Quantity(Pcs) 1
Gross Weigh(kg) 3.3
Installation height(m) 4-8



Distribution Curve (20W)

Led Parking Lot Lighting IP66 High Power 80w Lamp Led Street Light Housing 1

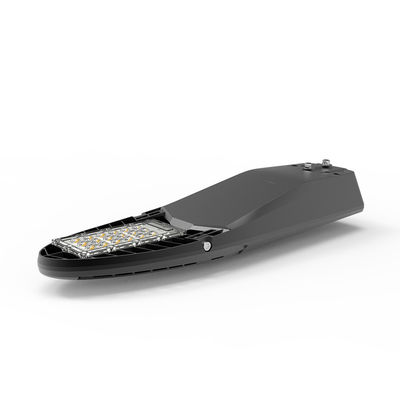

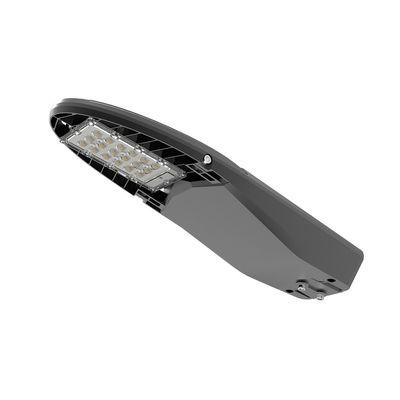

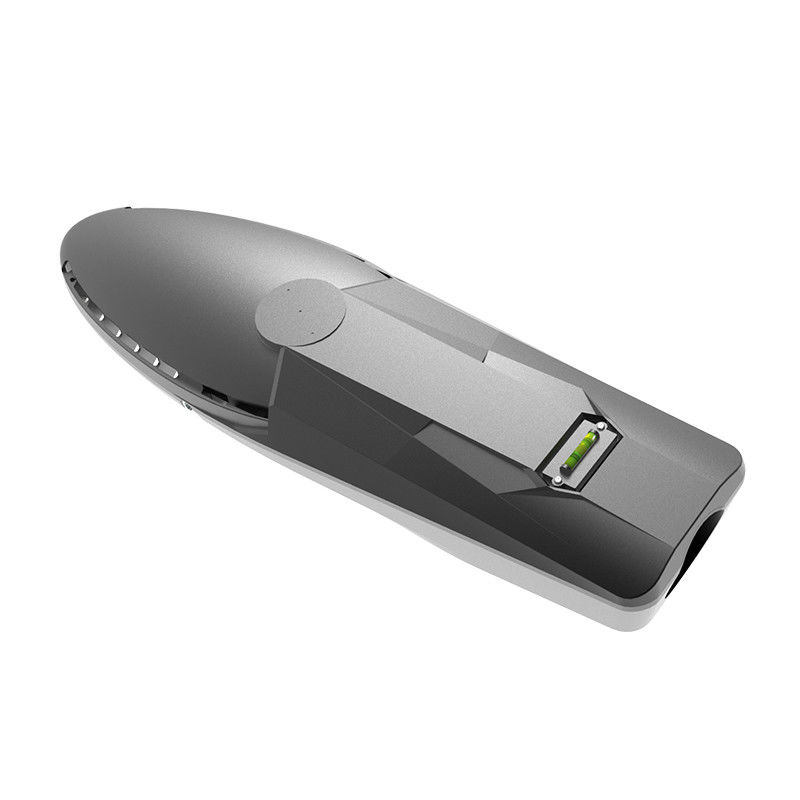

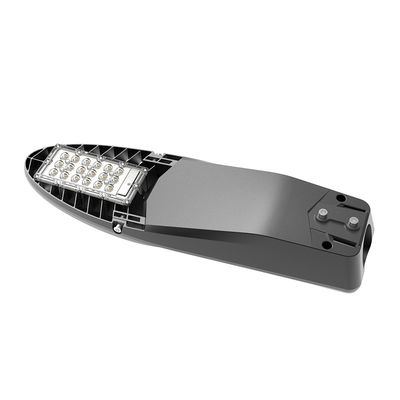

Outlook:

Led Parking Lot Lighting IP66 High Power 80w Lamp Led Street Light Housing 2

Package:



Name Size Quantity N.G G.W
Inner box

L614.0*W222.0*H162.0mm

L24.17*W8.74*H6.38inch

 1pcs 2.5kg 3.3kg
Outer box

L632.0*W456.0*H348.0mm

L24.88*W17.95*H13.70inch

 4pcs 10.0kg 14.2kg



Products:

Led Parking Lot Lighting IP66 High Power 80w Lamp Led Street Light Housing 3Led Parking Lot Lighting IP66 High Power 80w Lamp Led Street Light Housing 4Led Parking Lot Lighting IP66 High Power 80w Lamp Led Street Light Housing 5Led Parking Lot Lighting IP66 High Power 80w Lamp Led Street Light Housing 6

Certification:

Led Parking Lot Lighting IP66 High Power 80w Lamp Led Street Light Housing 7



Energy Efficient Street lighting Advantages as below:


1. Use famous Lumileds chip inside, high efficiency.
2. Use integrated shell optic lens, high transmittance and perfect lighting distribution.
3. Easy to installation and maintance.
4. No UV or RF interference, No mercury or lead.
5.Light body is made of good quality aluminum alloy with painting or anodic treatment on surface, exiguity and unique design, excellent heat dissipation.
6. High quality, high efficiency, high CRI & luminous flux.
7. long life span>50000hrs.
8. High brightness, low consumption, green for environment.
9. Save 80% more energy compared with traditional lighting fixtures.


Outdoor Led Street Lights Application:



Suitable for the street lighting at highways, urban roads and secondary roads, stadiums,
sidewalks, residential areas, industrial areas, squares, parks, schools, villas, gardens and other places.





Quality Control:

Quality guarantee is based on storing,installing,operating and maintaining correctly in the normal operation condition.

It is not included in our maintaining range when installing inappropriately,breaking the operating rules,and leading to the products damaging.

Our company will maintain the right to either repair,parts replacing,or products exchange during the quality warranty period.



Operating Guide:

1. Operation Ambient Temperature -20 to +50°C, Relative Humidity 20~90%
2. Input Voltage 85~265V AC, 50/60Hz
3. Storage Ambient Temperature -20 to +65°C, Relative Humidity 10~90%
4. Mounting Height : Suitable for 5~10m height
