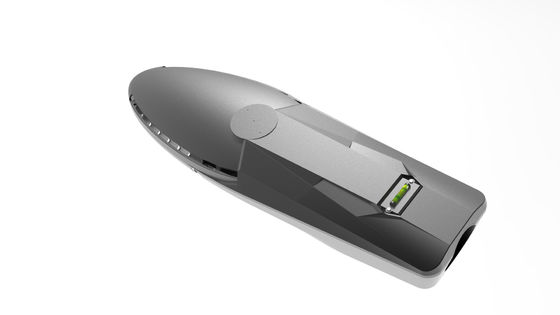

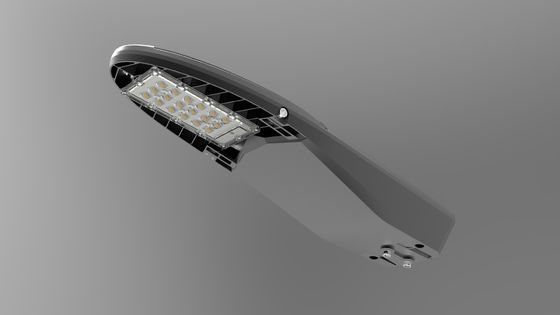

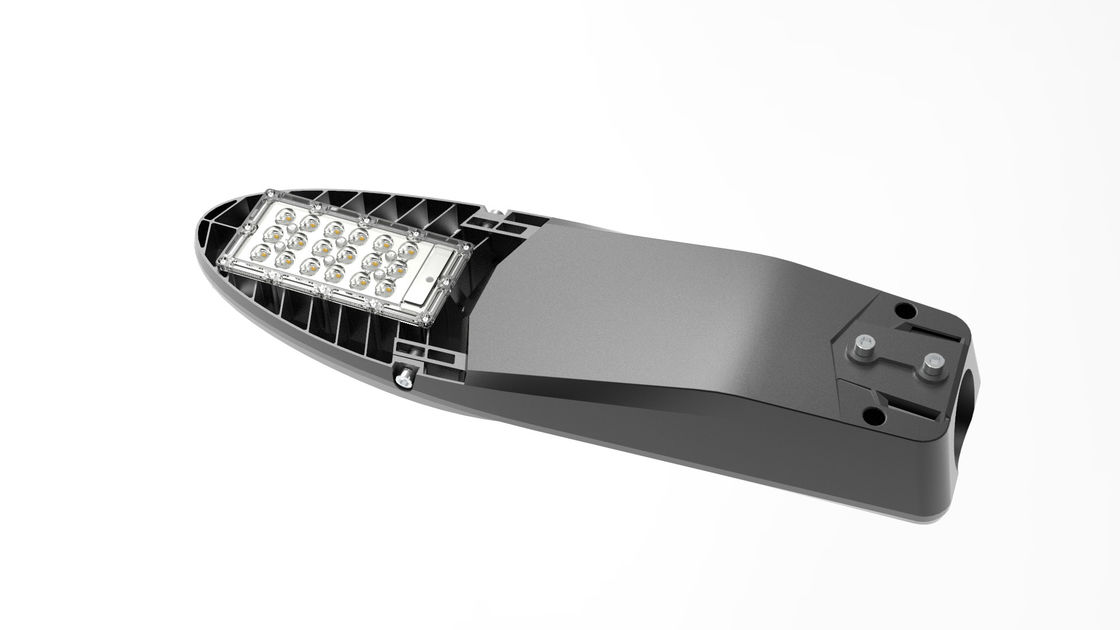

Outdoor IP66 50W LED Street Lighting Aluminium Housing PMMA Lens
IP66 Outdoor Street Lighting Petrel LED Street Lights 50W Aluminium housing PMMA lens
||AC100V～277V 50/60HZ / DC12-24V
|LED Quantity (pcs)
||TYPE III 150*80
||Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K
||MEAN WELL / INVENTRONICS
|IP Rating / IK
||IP66 / IK10
|Light body color
||Temperature -20 to +45°C, Relative Humidity 20~90%
||Temperature -20 to +60°C, Relative Humidity 5~95%
Suitable for the street lighting at highways, urban roads and secondary roads, stadiums,sidewalk,
residential areas, industrial areas, squares, parks, schools, villas, gardens and other places.
1. The shell adopts die-casting integral molding, which has higher safety and longer life.
2. The product has a beautiful appearance and curved lines, which effectively reduces wind resistance;
3. The product has a smooth surface and self-cleaning function, which effectively reduces dust accumulation;
4. Using Philips 5050 lamp beads, the luminous efficiency is as high as 160lm/w
5. The optical lens adopts Japanese PC material, with a light transmittance of over 93%, anti-ultraviolet rays, and good product stability;
6. The lamp is equipped with a level gauge for positioning, which is more time-saving and beautiful in installation
7. Waterproof and dustproof grade: IP66, protection grade IK10;
8. The product is equipped with other more optional functions: light controller, circuit breaker,single lamp controller, anti-falling sling, etc.
6. Distribution Curve
Inner box L614.0*W222.0*H162.0mm 1pcs 2.5kg 3.3kg
Outer box L632.0*W456.0*H348.0mm 4pcs 10.0kg 14.2kg
This product provides a 5-year warranty period from the date of purchase.
During the warranty period, if the product fails under normal use, the company will
provide free maintenance services. During the warranty period, please strictly abide
by the product usage specifications:
1. Before use, please read the installation manual in detail for correct installation;
2. Please check carefully before use. If any abnormal phenomenon is found
during use, please keep the evidence and contact our company;
3. Please do not disassemble the lamp privately, otherwise it will be deemed to
automatically give up warranty.
