| Product Name: | Petrel LED Street Lights | Power: | 80W-120W |
|---|---|---|---|
| Ip Rating: | IP65 | Light Source: | LED |
| Input Voltage(v): | AC100-277V | Cri (ra>): | 80 |
| Item Type: | Street Lights | Working Lifetime(hour): | 50000 |
| Warranty(year): | 5 | Lamp Luminous Flux(lm): | 12000;15000;18000 |
| Working Temperature(℃): | -30 - +60 | Application: | ROAD,outdoor,Highway,Garden,courtyard |
| Lamp Luminous Efficiency(lm/w): | 150 | Beam Angle(°): | TYPE III 150*80 |
| Lamp Body Material: | Aluminum+PC | Color Temperature(cct): | 2700K-6500K |
| Chip Brand: | Luxeon 3030 | LED Driver: | MEAN WELL / INVENTRONICS |
| High Light: | ENEC LED Street Light Fixtures,ROHS Outdoor Security LED Lights,ROHS LED Street Light Fixtures |
||

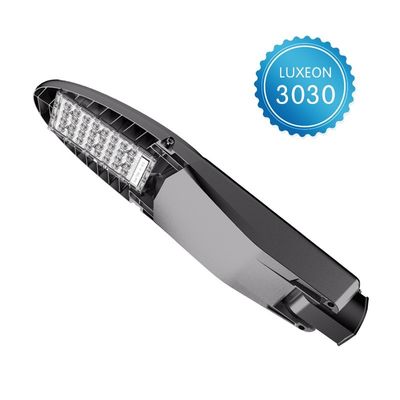

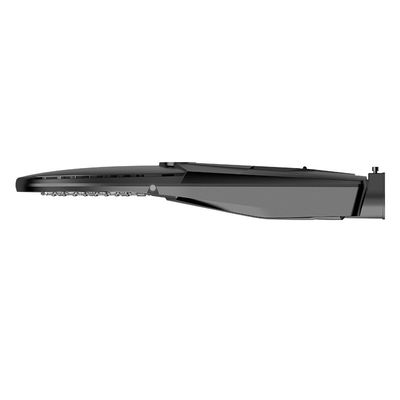

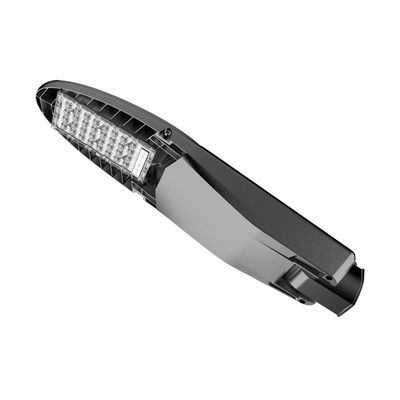

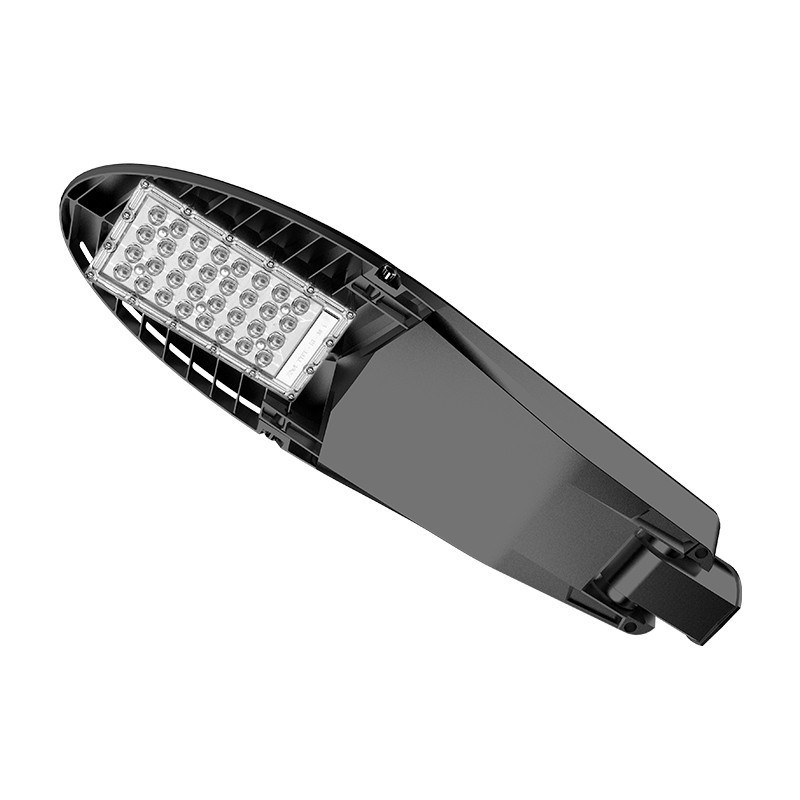

80W 100W 120W Outdoor Pole Road Light LED Street Lights
Product Specification
|
Part NO. Parameter |
LY-ST80080XX | LY-ST80090XX | LY-ST80100XX | LY-ST80110XX | LY-ST80120XX |
| Power | 80W | 90W | 100W | 110W | 120W |
| Luminous flux(lm) | 12000 | 13500 | 15000 | 16500 | 18000 |
| Input Voltage | AC100~240V 50/60HZ | ||||
| Beam angle | 153*80° | ||||
| Pole Diameter | 60mm | ||||
| Chip Brand | Luxeon 3030 | ||||
| Driver | Meanwell/Inventronics | ||||
| CRI | >75 | ||||
| Color Temperature | Warm White: 2700K-3200K/ Neutral White: 4000-4500K/ Pure White: 5000K-6500K | ||||
| Lifespan(hrs) | >50000 | ||||
| Luminous efficiency(lm/w) | >150 | ||||
| Material | Die Cast Aluminum | ||||
| IP Rating/IK | IP66/IK10 | ||||
Product Features
• High quality power supply,input voltage 100-240V.The power efficiency is more than 88%, power factor>0.98,UL certification.
• Adopting Lepower LED light sources and ZAG lens technology, 8% light efficiency higher than the same type lights in the market, with higher light transmittance up to 98%.
• Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds.
• Adopting the popular CHEM modular design, effectively reduce the following maintenancecose.
• Low energy consumption, matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current,over-voltage, lightning,
high temperature, which fully ensure long life span and high stability of the products.
• Durable lights with long life spn up to 50000hours; No need replace the lights frequently just make the regular maintenance.
• Green environmental protection, no UV light and infrared radiation, no mercury pollution.
• Nice appearance and non-fouling properties, Protection class IP66.
• Work without strobe, fast transient response; A wide range of working voltage.
• 2pcs 1W chips are packaged in one LED, which ensure high stability and also reduce the death rate of the leds.

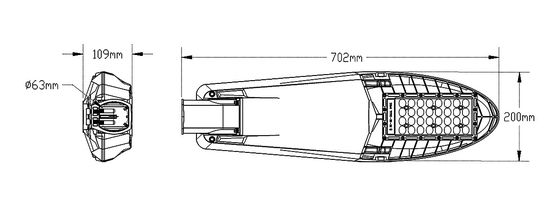

Product Details
