Petrel Lumileds 5050 LED Street Lighting Smart Photocell Time Control

Petrel Lumileds 5050 LED Street Lighting Smart Photocell Time Control
Petrel Lumileds 5050 LED Street Lighting Smart Photocell Time Control

Large Image :  Petrel Lumileds 5050 LED Street Lighting Smart Photocell Time Control

Product Details:

Place of Origin: Guangdong, China
Brand Name: LEYOND
Certification: TUV, CE, RoHS, CB, ENEC, GS, SAA, ETL, FCC, UL
Model Number: LY-ST80050XX

Payment & Shipping Terms:

Minimum Order Quantity: 10 pcs
Price: 48$-55$
Packaging Details: Standard Export Packing, 4 inner cartons load into 1 outer carton
Delivery Time: 5-7 days for samples, 7-10 days for bulk orer
Payment Terms: T/T, Western Union, Paypal, L/C, MoneyGram
Supply Ability: 30000 pcs/month
Detailed Product Description
Power: 30w 40w 50w 60w LED Chip: Lumileds 5050
LED Driver: Inventronics EUM-050 IP Rating: IP65
CCT: 2700-6500K Warranty: 5 Years
Beam Angle: 150*80 Degree Package: L632.0*W456.0*H348.0mm (4 PCS )
GW: 5kg Luminous Flux: 8000 Lm
Dimmable: Available CRI: >70
Pole Diameter: 60mm Housing Material: Diecasting Aluminium
Housing Color: Black / Gray / Customize Lighting Solution: Lighting And Circuitry Design, DIALux Evo Layout
Working Temperature: -40-55 Degree Celsius Photocell: Extendable
High Light:

Lumileds 5050 LED Street Lighting

,

6500K LED Street Lighting

,

IP65 Commercial LED Street Lights

Petrel Lumileds 5050 LED Street Lighting Smart Photocell Time Control



Petrel Series Lumileds 5050 LED Street Light Smart Photocell Time Control Dimmable



Features:



  • Absolutely unique mold,make your lighting special and fantastic.

  • Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.

  • Anti-glare and uniform light level to avoid any visual discomfort.

  • high quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.

  • Adopting LUXEON 5050 / 3030 led light sources and LEYOND lens technology, 8% light efficiency higher than the same type lights in the market, with higher light transmittance up to 98%.

  • Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds. Adopting the popular CHEM modular design, effectively reduce the following maintenance cost.

  • Low energy consumption,matching high efficiency constant-current driver, 60% energy saving;with good resistance to over-current, over-voltage, lightning, high temperature, which fully ensure long life span and high stability of the products.

  • Durable lights with long life span up to 50000 hours; No need frequent replacements of lights and regular maintenance.

  • Green environmental protection, no UV light and infrared radiation, no mercury pollution.

  • Nice appearance and non-fouling properties, Protection class IP65.

  • Work without strobe, fast transient response;A wide range of working voltage.

Petrel Lumileds 5050 LED Street Lighting Smart Photocell Time Control 0

Product Description:



Petrel Lumileds 5050 LED Street Lighting Smart Photocell Time Control 1

Petrel Lumileds 5050 LED Street Lighting Smart Photocell Time Control 2

Dimension:



Petrel Lumileds 5050 LED Street Lighting Smart Photocell Time Control 3



Application cases:



Petrel Lumileds 5050 LED Street Lighting Smart Photocell Time Control 4

Petrel Lumileds 5050 LED Street Lighting Smart Photocell Time Control 5

Petrel Lumileds 5050 LED Street Lighting Smart Photocell Time Control 6



Installation instructions:



1. Switch off the power supply

2. Through the AC electrucal cable in the lamp pole

3. Clear the Brown / Blue / Green Yellow pole

4. Electrical wiring connection

5. Tight the screws

6. Switch ON



Oprations:



• Operation Ambient Temperature -25 to +50°C, Relative Humidity 20~90%

• Input Voltage 100~240V AC, 50/60Hz

• Storage Ambient Temperature -40 to +55°C, Relative Humidity 5~95%

• Mounting Height : Suitable for 6~18m height



(Kindly reminder: All installation steps must handl by professional electrician)





Specification:

Part NO LY-ST80020XX LY-ST80030XX LY-ST80040XX LY-ST80050XX LY-ST80060XX
Input voltage AC100V277V 50/60HZ / DC12-24V
POWER(W) 20W 30W 40W 50W 60W
Luminous flux(lm) 3000 4440 5800 7150 8400
Chip Brand LUXEON 5050
LED Quantity (pcs) 72
Beam Angle TYPE III 150*80
CRI 70/80
Color Temperature Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K
Luminous efficiency(lm/w) 155 160 162 165 165
LED Driver MEAN WELL / INVENTRONICS
Lifespan(h) 50000
IP Rating / IK IP66 / IK10
Material ADC 12
Dimmable 1-10V/DALI
Light body color Black/Grey
working environment Temperature -20 to +45°C, Relative Humidity 20~90%
Storage environment Temperature -20 to +60°C, Relative Humidity 5~95%
Size(mm) L580*W180*H106mm (L22.83*W7.09*H4.17Inch)
Net Weigh(kg) 2.5kg
Package Size(mm) L614*W222*H162mm (L24.17*W8.74*H6.38inch)
Package Quantity(Pcs) 1
Gross Weigh(kg) 3.3
Installation height(m) 4-8



Distribution Curve:

Petrel Lumileds 5050 LED Street Lighting Smart Photocell Time Control 7





Applications:



- Urban road

- Secondary road

- Rural road

- High way

- Parking lot

- Park

- Sea shore

- Landscape



Package info:



Inner carton Size: 614mm×222mm×162mm

Outer carton Size: 632mm×456mm×348mm

4 pcs inner carton load into 1 outer carton

Petrel Lumileds 5050 LED Street Lighting Smart Photocell Time Control 8



Actual pictures:

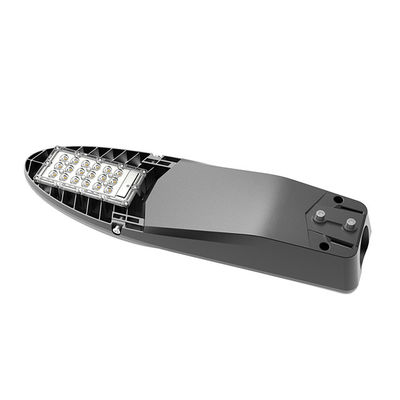

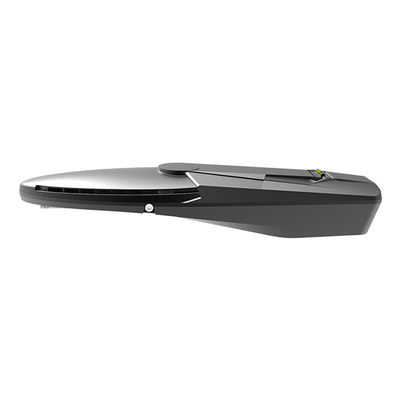

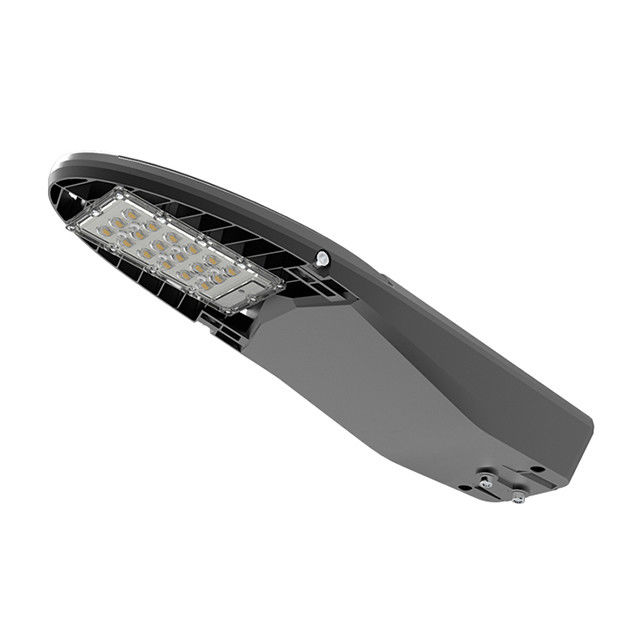

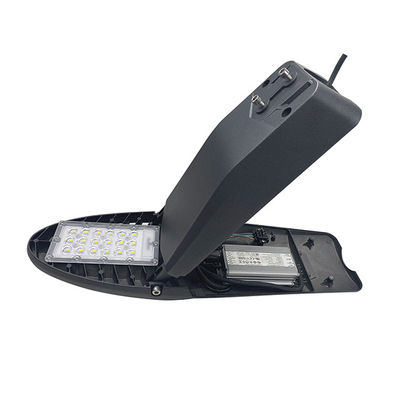

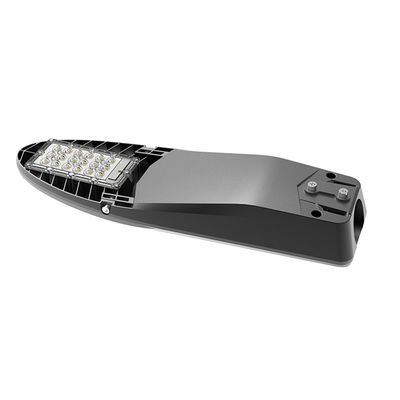

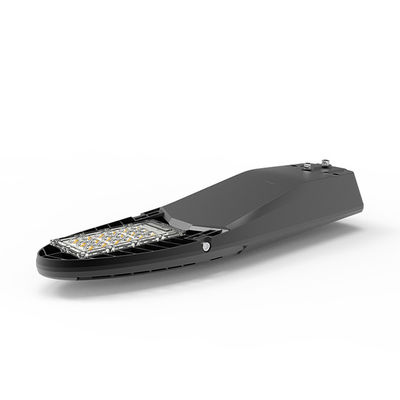

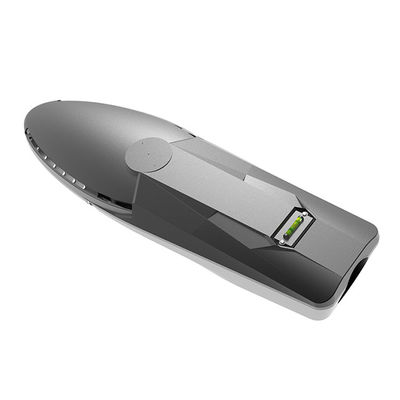

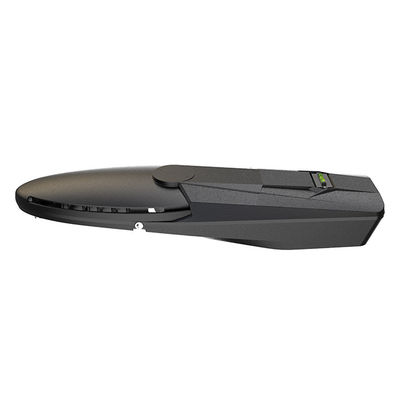

Petrel Lumileds 5050 LED Street Lighting Smart Photocell Time Control 9

Petrel Lumileds 5050 LED Street Lighting Smart Photocell Time Control 10

Petrel Lumileds 5050 LED Street Lighting Smart Photocell Time Control 11

Petrel Lumileds 5050 LED Street Lighting Smart Photocell Time Control 12

Petrel Lumileds 5050 LED Street Lighting Smart Photocell Time Control 13
