Lumen 24000lm 150W LED Street Lights Switch 10KV SPD Available

Certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
China Shenzhen Leyond Lighting Co.,Ltd. certification
Customer Reviews
I am very satisfied with your company in terms of quality.

—— Mr Frank

Hello Ada; I wish you have enoyed your holidays. Yes we tested the sample lamp, and we are very satisfy with the quality.

—— Ms.Valentina

I'm Online Chat Now

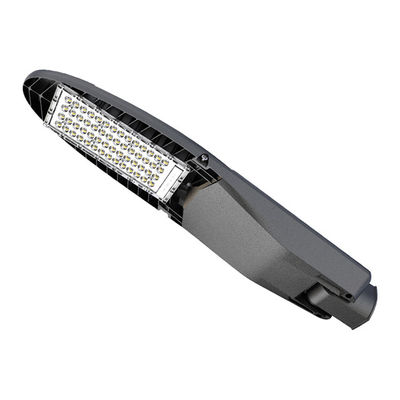

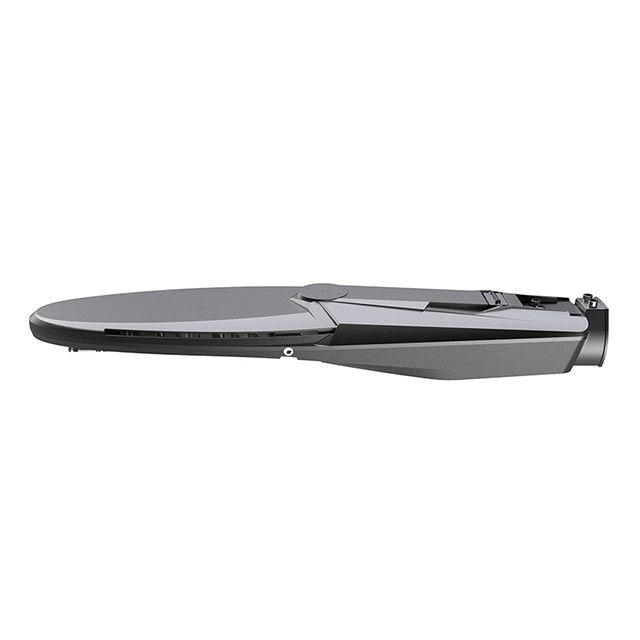

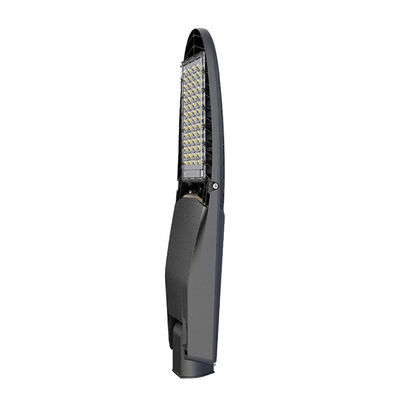

Lumen 24000lm 150W LED Street Lights Switch 10KV SPD Available

Lumen 24000lm 150W LED Street Lights Switch 10KV SPD Available
Lumen 24000lm 150W LED Street Lights Switch 10KV SPD Available Lumen 24000lm 150W LED Street Lights Switch 10KV SPD Available Lumen 24000lm 150W LED Street Lights Switch 10KV SPD Available

Large Image :  Lumen 24000lm 150W LED Street Lights Switch 10KV SPD Available

Product Details:

Place of Origin: Shenzhen
Brand Name: LEYOND
Certification: CE/ROHS/LVD/EMC ISO9001:2015
Model Number: LY-ST810150XX

Payment & Shipping Terms:

Minimum Order Quantity: 1PCS
Price: USD50-USD100/PC
Packaging Details: KK cartoon + PE foam
Delivery Time: 7-15 working days
Supply Ability: 5000/Month
Detailed Product Description
Item Type: Street Lights Power: 150W
Beam Angle(°): 150*85 Application: ROAD, Outdoor, Highway, Garden, Courtyard
Certificate: CE ROHS ENEC Driver: Meanwelll/INVENTRONICS
Holder Diameter: 60mm Body Color: Black/Grey
Lumen: 24000lm Light Source: Luxeon SMD5050
High Light:

10KV 150W LED Street Lights

,

24000lm 150W LED Street Lights

,

24000lm Energy Efficient Street Lighting

Lumen 24000lm 150W LED Street Lights Switch 10KV SPD Available



Smoothback design aluminoum LED Street Lights 150W 160lm/w Switch 10KV SPD available



Specification

Par NO

Parameter

LY-ST80120XX LY-ST80150XX LY-ST80180XX
Input voltage AC100V~277V 50/60HZ / DC12-24V
POWER(W) 120W 150W 180W
Luminous flux(lm) 18000 21750 25200
Chip Brand LUXEON 3030
LED Quantity (pcs) 224
Beam Angle TYPE III 150*80
CRI 70/80
Color Temperature Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K
Luminous efficiency(lm/w) 150 >145 >140
LED Driver MEAN WELL / INVENTRONICS
Lifespan(h) 50000
IP Rating / IK IP66 / IK10
Material ADC 12
Dimmable 1-10V/DALI
Light body color Black/Grey
working environment Temperature -20 to +45°C, Relative Humidity 20~90%
Storage environment Temperature -20 to +60°C, Relative Humidity 5~95%
Size(mm) L806*W200*H109mm (L31.73*W7.88*H4.29Inch)
Net Weigh(kg) 5.1
Package Size(mm) L847*W242*H154mm (L33.35*W9.53*H6.06inch)
Package Quantity(Pcs) 1
Gross Weigh(kg) 6.1
Installation height(m) 8-12

Application



Suitable for the street lighting at highways, urban roads and secondary roads, stadiums,sidewalk,

residential areas, industrial areas, squares, parks, schools, villas, gardens and other places.



Lumen 24000lm 150W LED Street Lights Switch 10KV SPD Available 0

Lumen 24000lm 150W LED Street Lights Switch 10KV SPD Available 1



5. Features



1. The shell adopts die-casting integral molding, which has higher safety and longer life.

2. The product has a beautiful appearance and curved lines, which effectively reduces wind resistance;

3. The product has a smooth surface and self-cleaning function, which effectively reduces dust accumulation;

4. Using Philips 5050 lamp beads, the luminous efficiency is as high as 160lm/w

5. The optical lens adopts Japanese PC material, with a light transmittance of over 93%, anti-ultraviolet rays, and good product stability;

6. The lamp is equipped with a level gauge for positioning, which is more time-saving and beautiful in installation

7. Waterproof and dustproof grade: IP66, protection grade IK10;

8. The product is equipped with other more optional functions: light controller, circuit breaker,single lamp controller, anti-falling sling, etc.

6. Distribution Curve

Lumen 24000lm 150W LED Street Lights Switch 10KV SPD Available 2

7. Package

Inner box    L743.0*W242.0*H154.0mm    1pcs     4.8kg     5.6kg

Outer box    L760.0*W254.0*H332.0mm    2pcs     9.6kg     11.9kg

8. Notes

This product provides a 5-year warranty period from the date of purchase.
During the warranty period, if the product fails under normal use, the company will
provide free maintenance services. During the warranty period, please strictly abide
by the product usage specifications:
1. Before use, please read the installation manual in detail for correct installation;
2. Please check carefully before use. If any abnormal phenomenon is found
during use, please keep the evidence and contact our company;
3. Please do not disassemble the lamp privately, otherwise it will be deemed to
automatically give up warranty.
