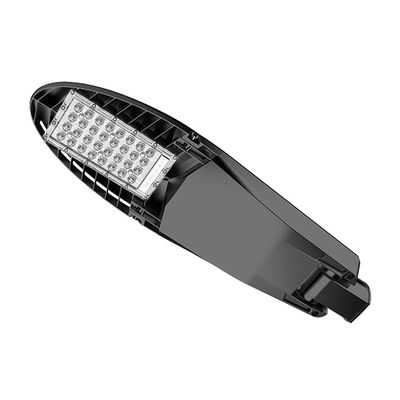

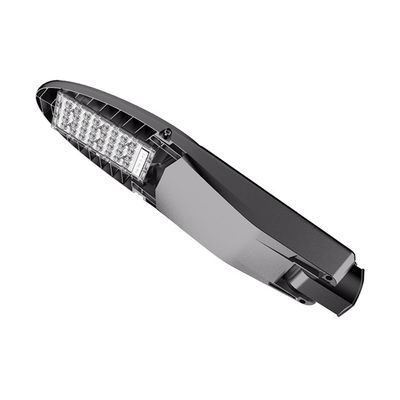

High efficiency 160lm/w LED Street Lighting Post Decoration Photocell

High efficiency 160lm/w LED Street Lighting Post Decoration Photocell
High efficiency 160lm/w LED Street Lighting Post Decoration Photocell High efficiency 160lm/w LED Street Lighting Post Decoration Photocell High efficiency 160lm/w LED Street Lighting Post Decoration Photocell High efficiency 160lm/w LED Street Lighting Post Decoration Photocell

Large Image :  High efficiency 160lm/w LED Street Lighting Post Decoration Photocell

Product Details:

Place of Origin: China
Brand Name: Leyond
Certification: CE,ROHS,ISO
Model Number: LY-ST80150XX

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton package
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 5000pcs/mon
Detailed Product Description
Beam Angle: 150*80 Degree Product Name: LED Street Light
Warranty: 5 Years High Efficiency: 160lm/w
Power: 150W Chip Brand: 5050
Driver: Meanwell
High Light:

160lm/W LED Street Lighting

,

150W LED Street Lighting

,

160lm/W LED Shoebox Lamp

High Efficiency 160lm/W LED Street Lighting Post Decoration Photocell



Outdoor Led Street Light For Road LED Shoebox Lamp Post Decoration Photocell Street Light Shoebox Light



Application:

Suitable for the street lighting at highways, urban roads and secondary roads, stadiums,
sidewalk, residential areas, industrial areas, squares, parks, schools, villas, gardens and other places.



Smoothback design aluminoum LED Street Lights 150W 160lm/w Switch 10KV SPD available 4

Smoothback design aluminoum LED Street Lights 150W 160lm/w Switch 10KV SPD available 5

Features

  • The shell adopts die-casting integral molding, which has higher safety and longer life.
  • The product has a beautiful appearance and curved lines, which effectively reduces wind resistance;
  • The product has a smooth surface and self-cleaning function, which effectively reduces dust accumulation;
  • Using Philips 5050 lamp beads, the luminous efficiency is as high as 160lm/w
  • The optical lens adopts Japanese PC material, with a light transmittance of over 93%, anti-ultraviolet rays, and good product stability;
  • The lamp is equipped with a level gauge for positioning, which is more time-saving and beautiful in installation
  • Waterproof and dustproof grade: IP66, protection grade IK10;
  • The product is equipped with other more optional functions: light controller, circuit breaker, single lamp controller, anti-falling sling, etc.

Specification:

Par NO

Parameter

LY-ST80120XX LY-ST80150XX LY-ST80180XX
Input voltage AC100V~277V 50/60HZ / DC12-24V
POWER(W) 120W 150W 180W
Luminous flux(lm) 18000 21750 25200
Chip Brand LUXEON 3030
LED Quantity (pcs) 224
Beam Angle TYPE III 150*80
CRI 70/80
Color Temperature Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K
Luminous efficiency(lm/w) >150 >145 >140
LED Driver MEAN WELL / INVENTRONICS
Lifespan(h) >50000
IP Rating / IK IP66 / IK10
Material ADC 12
Dimmable 1-10V/DALI
Light body color Black/Grey
working environment Temperature -20 to +45°C, Relative Humidity 20~90%
Storage environment Temperature -20 to +60°C, Relative Humidity 5~95%
Size(mm) L806*W200*H109mm (L31.73*W7.88*H4.29Inch)
Net Weigh(kg) 4.8
Package Size(mm) L847*W242*H154mm (L33.35*W9.53*H6.06inch)
Package Quantity(Pcs) 1
Gross Weigh(kg) 5.6
Installation height(m) 8-12

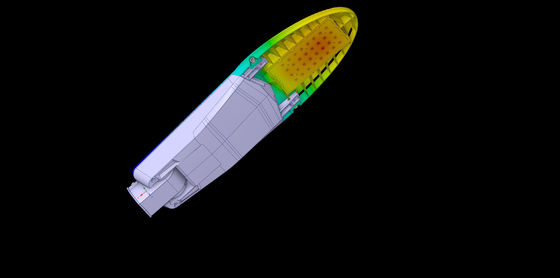

Distribution Curve (100W)

High efficiency 160lm/w LED Street Lighting Post Decoration Photocell 2

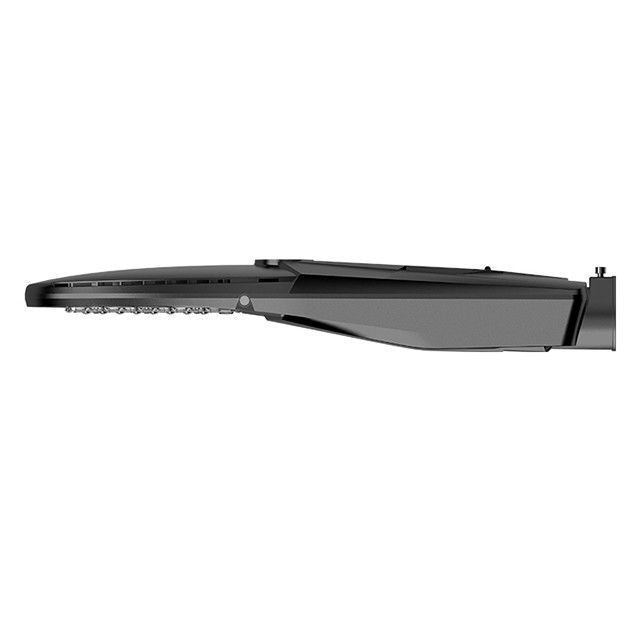

Outlook:

High efficiency 160lm/w LED Street Lighting Post Decoration Photocell 3

Package:



Name Size Quantity N.G G.W
Inner box

L847*W242*H154mm

(L33.35*W9.53*H6.06inch)

1pcs 4.8kg 5.6kg
Outer box

L865*W254*H332mm

L34.06*W10.0*H13.07inch

2pcs 9.6kg 11.9kg



Projects:



ENEC CB EMC LVD Certified Toolless LED Street Light 100W 16000lm 5 Years Warranty 4
ENEC CB EMC LVD Certified Toolless LED Street Light 100W 16000lm 5 Years Warranty 5
ENEC CB EMC LVD Certified Toolless LED Street Light 100W 16000lm 5 Years Warranty 6



FAQ:

1. May I have a sample for the light please?
---Sure,mixed power is also support.

2. How many watts does this light provide?
---80w, 100w, 120w, 150w, 180w

3. Which shipping way do you have?
---DHL, FEDEX, UPS and TNT are all support. By sea or by air can be available based on your request.

4. What is your warranty?
---We are provide 3-5 years warranty which based on different materials.

5. What is the delivery time?
---Normally, 5-7 days for sample, 15-20 days for bulk order. If on special condition, the delivery time can be discussed.

6. Do you make OEM ?
---Yes, OEM orders are warmly welcomed.

7. Are you the manufacturer?
---Yes, we are professional manufacturer for led lighting since 2008. And have completed design-delelop-sales-service system.
