Product Details:
Payment & Shipping Terms:
|
| Product Name: | Petrel LED Street Light | Lamp Power: | 120W,150W,180W |
|---|---|---|---|
| Whole Lamp Efficiency: | >160Lm/W | IP Rating: | IP66 |
| CRI: | >70 | Application: | Roadway |
| High Light: | 150W LED Street Light Fixtures,ENEC LED Street Light Fixtures,ENEC LED Street Light 150w |
||

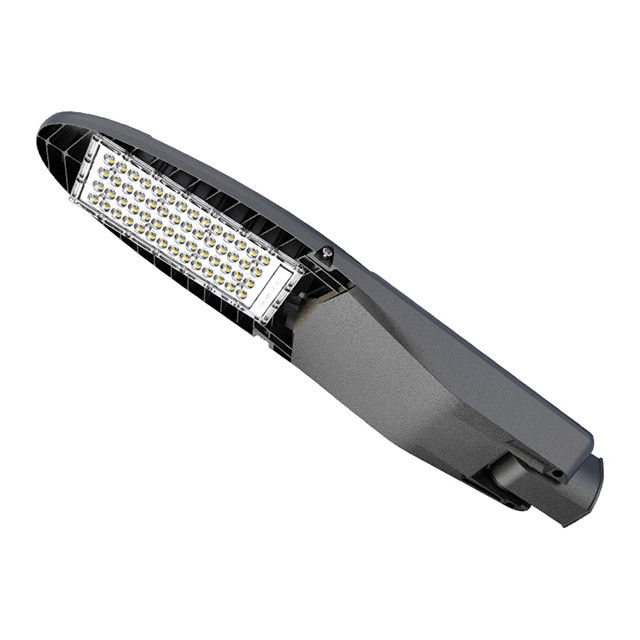

ENEC Certified LED Street Light 150W Fixtures IP66 Waterproof Rating
ENEC Certified LED Street light 150W with IP66 waterproof rating.
1. Ouitlook:
2. Application:
Suitable for the street lighting at highways, urban roads and secondary roads, stadiums,
sidewalk, residential areas, industrial areas, squares, parks, schools, villas, gardens and other places.
3. Specification:
|
Par NO Parameter |
LY-ST81120XX | LY-ST81150XX | LY-ST81180XX |
| Input voltage | AC100V～277V 50/60HZ / DC12-24V | ||
| POWER(W) | 120W | 150W | 180W |
| Luminous flux(lm) | 19200 | 23250 | 27000 |
| Chip Brand | LUXEON 5050 | ||
| LED Quantity (pcs) | 54 | ||
| Beam Angle | TYPE III 150*80 | ||
| CRI | 70/80 | ||
| Color Temperature | Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K | ||
| Luminous efficiency(lm/w) | ＞160 | >155 | >150 |
| LED Driver | MEAN WELL / INVENTRONICS | ||
| Lifespan(h) | ＞50000 | ||
| IP Rating / IK | IP66 / IK10 | ||
| Material | ADC 12 | ||
| Dimmable | 1-10V/DALI | ||
| Light body color | Black/Grey | ||
| working environment | Temperature -20 to +45°C, Relative Humidity 20~90% | ||

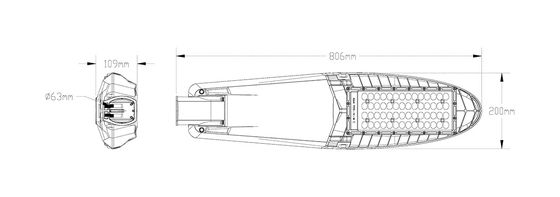

| Size(mm) | L806*W200*H109mm (L31.73*W7.88*H4.29Inch) | ||
| Net Weigh(kg) | 4.8 | ||
| Package Size(mm) | L847*W242*H154mm (L33.35*W9.53*H6.06inch) | ||
| Package Quantity(Pcs) | 1 | ||
| Gross Weigh(kg) | 5.6 | ||
| Installation height(m) | 8-12 | ||
4. Distribution Curve (60W)
5. Package:
| Name | Size | Quantity | N.G | G.W |
| Inner box |
L847*W242*H154mm (L33.35*W9.53*H6.06inch) |
1pcs | 4.8kg | 5.6kg |
| Outer box |
L865*W254*H332mm L34.06*W10.0*H13.07inch |
2pcs | 9.6kg | 11.9kg |
6. Notes:
This product provides 5-year warranty period from the date of purchase. During the warranty period, if the product fails under normal use, the company will provide free maintenance services. During the warranty period, please strictly abide by the product usage specifications:
1. Before use, please read the installation manual in detail for correct installation;
2. Please check carefully before use. If any abnormal phenomenon is found during use, please keep the evidence and contact our company;
3. Please do not disassemble the lamp privately, otherwise it will be deemed to automatically give up warranty

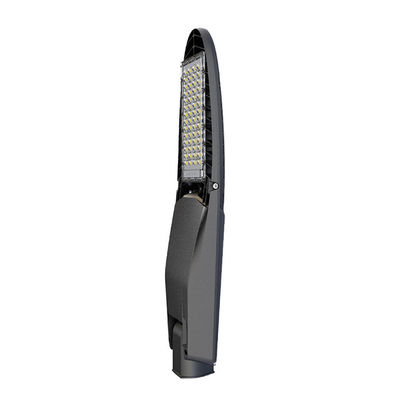

7. Detailed Pictures:
