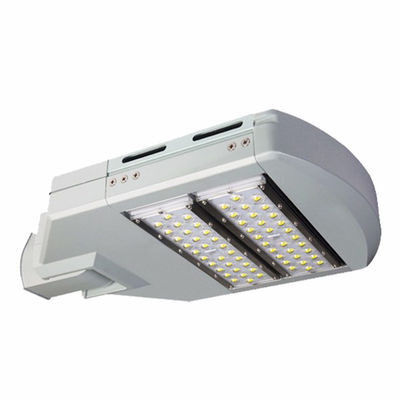

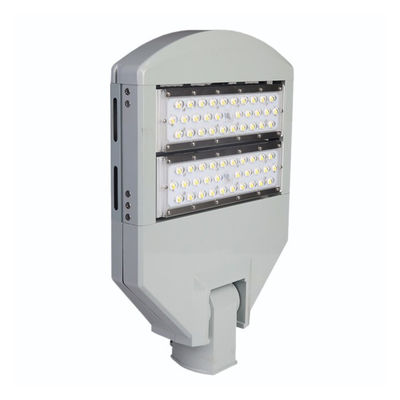

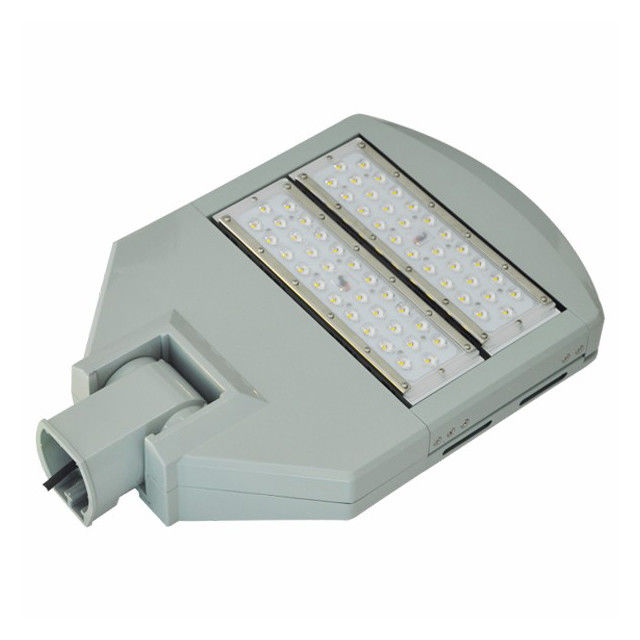

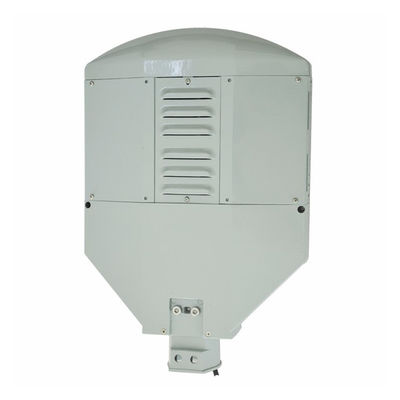

Remote Control 100w LED Street Lamp 3000K 4000K 6000K Adjustable

Remote Control 100w LED Street Lamp 3000K 4000K 6000K Adjustable
Remote Control 100w LED Street Lamp 3000K 4000K 6000K Adjustable

Large Image :  Remote Control 100w LED Street Lamp 3000K 4000K 6000K Adjustable

Product Details:

Place of Origin: China
Brand Name: Leyond
Certification: CE ROHS ENEC CB
Model Number: LY-ST21100PW

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: H*W*L
Delivery Time: 5-8day
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10000-30000/month
Contact Now
Detailed Product Description
Light Source: LED Ip Rating: IP 65
Item Type: Street Lights Warranty(year): 5
Application: Outdoor Lamp Body Material: Aluminum
Working Temperature(℃): -30 - 60 Lamp Luminous Efficiency(lm/w): 120-130
Color Temperature(cct): WW :2700K-3200K NW:4000K-4500K PW:5000K-6500K
High Light:

3000K 100w LED Street Lamp

,

6000K LED Street Light 100w

,

4000K LED Street Lamp

Remote Control 100w LED Street Lamp 3000K 4000K 6000K Adjustable



Remote Control Outdoor Lighting 3000-4000-6000K Adjustable Integrated 100W Led Street Lamp



01. structure



Remote Control 100w LED Street Lamp 3000K 4000K 6000K Adjustable 0



02. features

  • high quality power supply, input voltage 100-277V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.
  • Adopting Lepower led light sources and ZAG lens technology, 8% light efficiency higherthan the same type lights in the market, with higher light transmittance up to 98%.
  • Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds. Adopting the popular CHEM modular design, effectively reduce the following maintenance cost.
  • Low energy consumption,matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current, over-voltage, lightning, high temperature, which fully ensure long life span and high stability of the products.
  • Durable lights with long life span up to 50000 hours; No need frequent replacements of lights and regular maintenance.
  • Green environmental protection, no UV light and infrared radiation, no mercury pollution.
  • Nice appearance and non-fouling properties, Protection class IP66.
  • Work without strobe, fast transient response；A wide range of working voltage.
  • LUXEON 3030 light source.

03. specification



Part NO.

Parameter

 LY-ST21060XX LY-ST21090XX LY-ST21100XX LY-ST22120XX
Power 60W 90W 100W 120W
Luminous flux(lm) 9600 14400 16000 19200
Input Voltage AC100~240V 50/60HZ
Beam angle 150*65°
Pole Diameter 60mm
Chip Brand Luxeon 5050
Driver Meanwell/Inventronics
CRI >75
Color Temperature Warm White: 2700K-3200K/ Neutral White: 4000-4500K/ Pure White: 5000K-6500K
Lifespan(hrs) >50000
Luminous efficiency(lm/w) >160
Material Die Cast Aluminum
IP Rating IP66



05. Distribution Curve:(60w)

High Lumens 160lm/W Waterproof LED Street Lighting 50W IP66 60Hz With Aluminum Material 3

100w Ip66 Waterproof High Efficiency Classic Led Street Light 1

06. production



Remote Control 100w LED Street Lamp 3000K 4000K 6000K Adjustable 3

07. testing



Remote Control 100w LED Street Lamp 3000K 4000K 6000K Adjustable 4

08. exhibition



Remote Control 100w LED Street Lamp 3000K 4000K 6000K Adjustable 5

09. pictures



Remote Control 100w LED Street Lamp 3000K 4000K 6000K Adjustable 6



10. Application:



Suitable for the street lighting at highways, urban roads and secondary roads, stadiums, sidewalks, residential areas, industrial areas, squares, parks, schools, villas, gardens and other places.


Remote Control 100w LED Street Lamp 3000K 4000K 6000K Adjustable 7

Remote Control 100w LED Street Lamp 3000K 4000K 6000K Adjustable 8

Remote Control 100w LED Street Lamp 3000K 4000K 6000K Adjustable 9

Product details
IP66 200w Modular LED Street Light highway street light led replacing existing 70-400 watt HPS / MH luminaires
IP66 200w Modular LED Street Light highway street light led replacing existing 70-400 watt HPS / MH luminaires
IP66 200w Modular LED Street Light highway street light led replacing existing 70-400 watt HPS / MH luminaires
Adopt original Lumileds Luxeon 5050 LED Chip, highest brightness level chip, to ensure high light efficiency. Green environmental protection, no UV light and infrared radiation, no mercury pollution.
Use world top brand Meanwell driver, wide voltage 100-305V AC, power factor >0.98, efficiency > 88%, with good resistance to over-current,over-voltage, which fully ensure long life span and high stability of the products.
With world best quality PC lens, 100% original Japan imported materials, with very good quality. High/Low temperature resistant(-100~+150℃).
Modular Design
Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend
life span of the leds. Adopting the popular CHEM modular design, effectively reduce the following maintenancecose. Nice appearance and non-fouling properties, Protection class IP66.

NEMA 7 pin Socket available
The most popular extend function of the smart dimming street light in this day and age. Connect the 0-10v driver, Meanwell brand or Inventronics or Sosen optionable By control the LORA gataway to control each LORA master on the NEMA socket. The way of Smart lighting system
LORA Gateway dimming system diameter
In order to make it compatible with your market LORA gataway, we suggest you take the LORA knobs and LORA master from your local supplier. Of course if you wanna take the system from us here is warmly welcomed. contact Pure for more details.

IP66 200w Modular LED Street Light highway street light led replacing existing 70-400 watt HPS / MH luminaires
IP66 200w Modular LED Street Light highway street light led replacing existing 70-400 watt HPS / MH luminaires
Optical daylight sensor 3 pin introduction
When the sunshine getting weak in dusk, when the ambient surround lux lower than 10 lux (or by customer special indirection), the
light turn on automatically; After a night's light up work, then the dawn comes, when the surround lux higher than 30 lux (or by customer special indirection),
the light turn off automatically.

IP66 200w Modular LED Street Light highway street light led replacing existing 70-400 watt HPS / MH luminaires
