Petrel 60W LED Street Lighting Lumileds 5050 LED Smart Time Control

Petrel 60W LED Street Lighting Lumileds 5050 LED Smart Time Control
Petrel 60W LED Street Lighting Lumileds 5050 LED Smart Time Control

Large Image :  Petrel 60W LED Street Lighting Lumileds 5050 LED Smart Time Control

Product Details:

Place of Origin: Guangdong, China
Brand Name: LEYOND
Certification: TUV, CE, RoHS, CB, ENEC, GS, SAA, ETL, FCC, UL
Model Number: LY-ST81060XX

Payment & Shipping Terms:

Minimum Order Quantity: 10 pcs
Price: 48$-55$
Packaging Details: Standard Export Packing, 4 inner cartons load into 1 outer carton
Delivery Time: 5-7 days for samples, 7-10 days for bulk orer
Payment Terms: T/T, Western Union, Paypal, L/C, MoneyGram
Supply Ability: 30000 pcs/month
Detailed Product Description
Power: 60w LED Chip: Lumileds 5050
LED Driver: Inventronics EUM-075 IP Rating: IP65
CCT: 2700-6500K Warranty: 5 Years
Beam Angle: 150*80 Degree Package: L632.0*W456.0*H348.0mm (4 PCS )
GW: 4kg Luminous Flux: 9600 Lm
Dimmable: Time Control CRI: >70
Pole Diameter: 60mm Housing Material: Diecasting Aluminium
Housing Color: Black / Gray / Customize Lighting Solution: Lighting And Circuitry Design, DIALux Evo Layout
Working Temperature: -40-55 Degree Celsius Photocell: Extendable
High Light:

LED Street Lighting

,

Lumileds 5050 LED Street Lighting

,

160lm 60W LED Street Light

Petrel 60W LED Street Lighting Lumileds 5050 LED Smart Time Control



2021 New Design Petrel 60W LED Street Light Lumileds 5050 LED 160lm/w Smart Time Control



Features:

  • Absolutely unique mold,make your lighting special and fantastic.

  • Perfect Light Distribution Solution:Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity.

  • Anti-glare and uniform light level to avoid any visual discomfort.

  • high quality power supply, input voltage 100-240V. The power efficiency is more than 90%, power factor greater than 0.98, UL compulsory certification.

  • Adopting LUXEON 5050 / 3030 led light sources and LEYOND lens technology, 8% light efficiency higher than the same type lights in the market, with higher light transmittance up to 98%.

  • Duct type thermal design, reduce the weight of the light and ensure good heat dissipation, lower luminous decay, and also extend life span of the leds. Adopting the popular CHEM modular design, effectively reduce the following maintenance cost.

  • Low energy consumption,matching high efficiency constant-current driver, 60% energy saving;with good resistance to over-current, over-voltage, lightning, high temperature, which fully ensure long life span and high stability of the products.

  • Durable lights with long life span up to 50000 hours; No need frequent replacements of lights and regular maintenance.

  • Green environmental protection, no UV light and infrared radiation, no mercury pollution.

  • Nice appearance and non-fouling properties, Protection class IP65.

  • Work without strobe, fast transient response;A wide range of working voltage.

Product Description:





Petrel 60W LED Street Lighting Lumileds 5050 LED Smart Time Control 0

Dimension:



Petrel 60W LED Street Lighting Lumileds 5050 LED Smart Time Control 1



Application cases:



Petrel 60W LED Street Lighting Lumileds 5050 LED Smart Time Control 2

Petrel 60W LED Street Lighting Lumileds 5050 LED Smart Time Control 3

Petrel 60W LED Street Lighting Lumileds 5050 LED Smart Time Control 4



Installation instructions:



1. Switch off the power supply

2. Through the AC electrucal cable in the lamp pole

3. Clear the Brown / Blue / Green Yellow pole

4. Electrical wiring connection

5. Tight the screws

6. Switch ON



Oprations:



• Operation Ambient Temperature -25 to +50°C, Relative Humidity 20~90%

• Input Voltage 100~240V AC, 50/60Hz

• Storage Ambient Temperature -40 to +55°C, Relative Humidity 5~95%

• Mounting Height : Suitable for 6~18m height



(Kindly reminder: All installation steps must handl by professional electrician)





Specification:







Part NO

LY-ST80020XX

LY-ST80030XX

LY-ST80040XX

LY-ST80050XX

LY-ST80060XX

Input voltage

AC100V277V 50/60HZ / DC12-24V

POWER(W)

20W

30W

40W

50W

60W

Luminous flux(lm)

3000

4440

5800

7150

8400

Chip Brand

LUXEON 5050

LED Quantity (pcs)

72

Beam Angle

TYPE III 150*80

CRI

70/80

Color Temperature

Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K

Luminous efficiency(lm/w)

155

160

162

165

165

LED Driver

MEAN WELL / INVENTRONICS

Lifespan(h)

50000

IP Rating / IK

IP66 / IK10

Material

ADC 12

Dimmable

1-10V/DALI

Light body color

Black/Grey

working environment

Temperature -20 to +45°C, Relative Humidity 20~90%

Storage environment

Temperature -20 to +60°C, Relative Humidity 5~95%

Size(mm)

L580*W180*H106mm (L22.83*W7.09*H4.17Inch)

Net Weigh(kg)

2.5kg

Package Size(mm)

L614*W222*H162mm (L24.17*W8.74*H6.38inch)

Package Quantity(Pcs)

1

Gross Weigh(kg)

3.3

Installation height(m)

4-8



Distribution Curve:

Petrel 60W LED Street Lighting Lumileds 5050 LED Smart Time Control 5





Applications:



- Urban road

- Secondary road

- Rural road

- High way

- Parking lot

- Park

- Sea shore

- Landscape



Package info:



Inner carton Size: 614mm×222mm×162mm

Outer carton Size: 632mm×456mm×348mm

4 pcs inner carton load into 1 outer carton

Petrel 60W LED Street Lighting Lumileds 5050 LED Smart Time Control 6

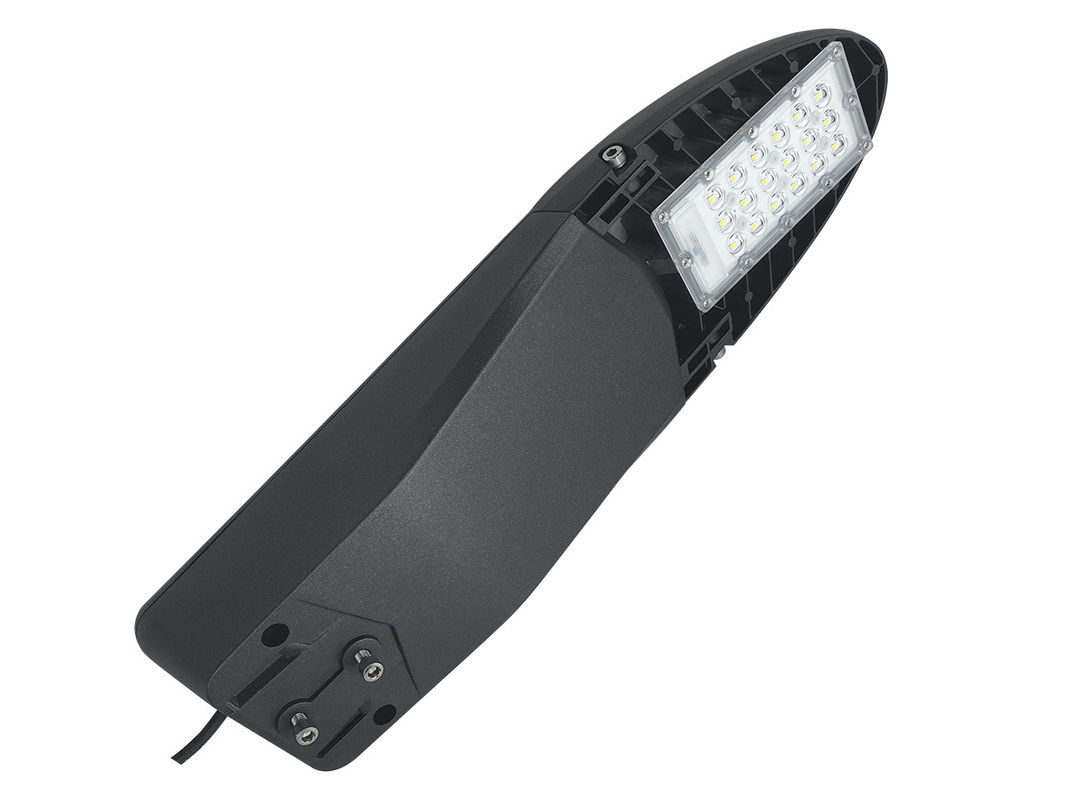

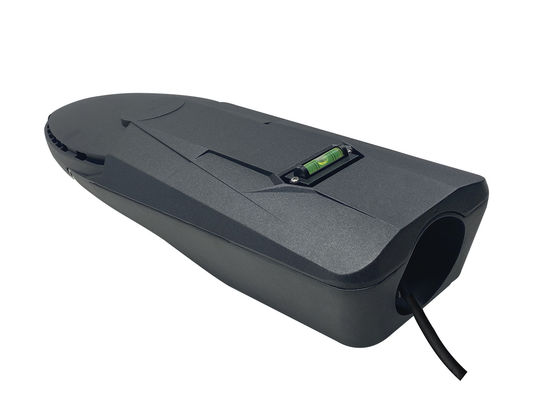

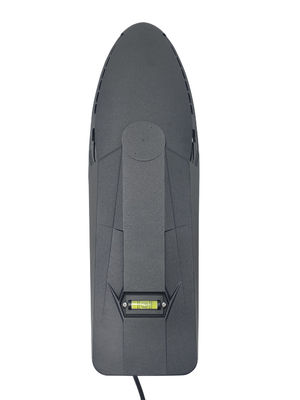

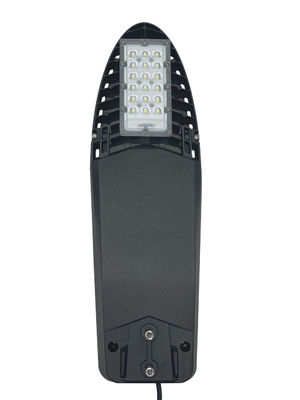

Actual pictures:



Petrel 60W LED Street Lighting Lumileds 5050 LED Smart Time Control 7

Petrel 60W LED Street Lighting Lumileds 5050 LED Smart Time Control 8

Petrel 60W LED Street Lighting Lumileds 5050 LED Smart Time Control 9

Petrel 60W LED Street Lighting Lumileds 5050 LED Smart Time Control 10

Petrel 60W LED Street Lighting Lumileds 5050 LED Smart Time Control 11

Petrel 60W LED Street Lighting Lumileds 5050 LED Smart Time Control 12

Petrel 60W LED Street Lighting Lumileds 5050 LED Smart Time Control 13

Petrel 60W LED Street Lighting Lumileds 5050 LED Smart Time Control 14





Related hot selling products:



Petrel 60W LED Street Lighting Lumileds 5050 LED Smart Time Control 15

1. Sword series LED street light 130w-200w
2. Sword series LED street light 70w-120w
3. Sword series LED street light 20w-60w
4. King series LED street light 80w-200w
5. King series LED street light 20w-60w
6. Integrated All in one Solar LED garden light 40w-100w
7. Integrated All in one Solar LED garden light 10w-30w
8. Fairy LED street light 10w-30w
9. Galaxy series LED street light 30-100w
10. Galaxy series LED street light 110w-200w



FAQ:



- What about the lead time?

A:Sample needs 7 days, mass production time needs 1-2 weeks for order quantity more than



- Do you have any MOQ limit for led light order?

A: Low MOQ, 1pc for sample checking is available



- How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.



- How to proceed an order for led light?

A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.



- Is it OK to print my logo on led light product?

A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



- Do you offer guarantee for the products?

A: Yes, we offer 5 years warranty to our products.



- How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new lights with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
