Product Details:
Payment & Shipping Terms:
|
LED Street Light: | 100W | LED Chips: | Lumileds Luxeon 5050 |
---|---|---|---|
LED Driver: | Meanwell | Housing: | Die Custing Aluminum |
Lamp Efficiency: | >160Lm/W | Waterproof Rating: | IP66 |
High Light: | 100W LED Street Light Fixtures,ENEC LED Street Light Fixtures,IP66 Outdoor Led Lighting |
Toolless 100W LED Street Light Fixtures With IP66 Waterproof Rating
ENEC certified toolless LED Street light 100W with IP66 waterproof rating.

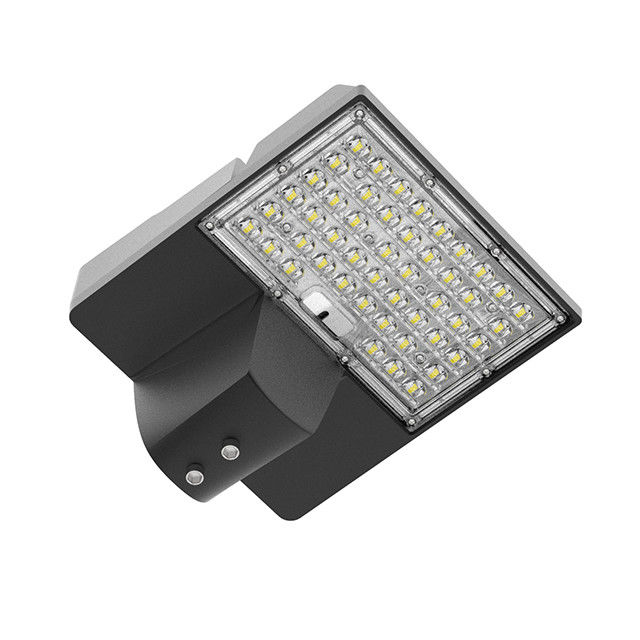

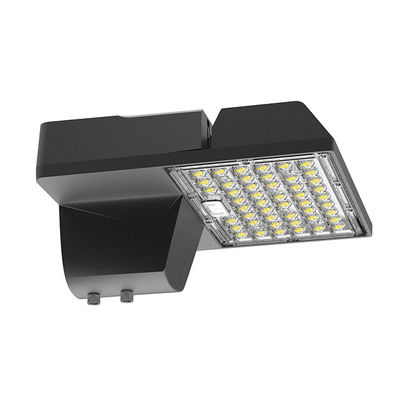

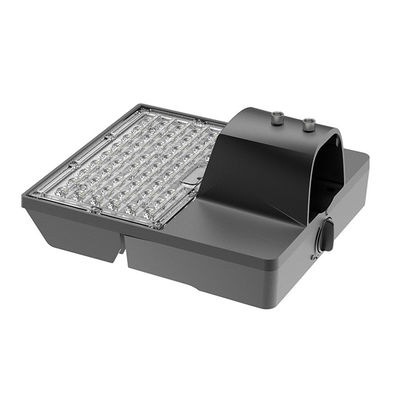

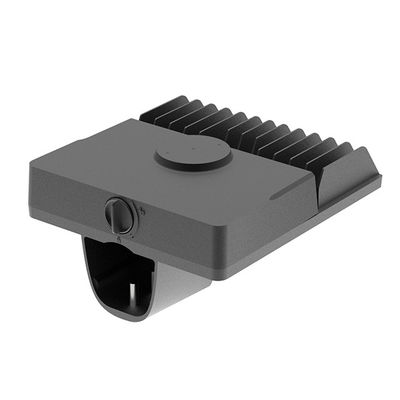

1. Outlook:
2. Application:
Suitable for the street lighting at highways, urban roads and secondary roads, stadiums,sidewalks, residential areas, industrial areas, squares, parks, schools, villas, gardens and other places.
3. Features:
1) The appearance of body: aluminum alloy die-casting;
2) Anti-glare and uniform light level to avoid any visual discomfort;
3) Adopting LUXEON 5050 led light sources and LEYOND lens technology, higher light transmittance up to 93%;
4) The power supply is designed to be portable and easy to construct and maintain. Easy to disassemble and assemble.
You can easily open and cover up the housing with your hands, don't need any additional tools.
5) Dust and snow proof: Adopt smooth die-cast aluminum housing, successfully prevent the dust and snow from accumulating
on the housing, thus better heat dissipation and longer life span.
6) High quality power supply, input voltage 100-305V. The power efficiency is more than 90%, power factor greater than 0.98.
4. Specifications:
Par NO Parameter |
LY-ST60100PW | LY-ST60100WW | LY-ST60100NW |
Input voltage | AC100V~305V 50/60HZ | ||
System consumption(W) | 100 | 100 | 100 |
Luminous flux(lm) | 15800 | 14000 | 15500 |
Chip Brand | LUXEON 5050/LEYOND 5050 | LUXEON 5050/LEYOND 5050 | LUXEON 5050/LEYOND 5050 |
LED Quantity(PCS) | 48 | ||
Color Temperature | Pure white:5000-6500K | Warm white:2700-3200K | Neutral white:4000-4500K |
CRI | >70 | ||
Beam Angle | 150*60 DEG | ||
LED Driver | MEAN WELL XLG-100 | ||
Luminous efficiency(lm/w) | >160 | ||
Lifespan(hrs) | >50000 | ||
IP Rating | IP66 | ||
Dimmable | YES&NO | ||
Size(mm) | 252x220x128 | ||
Net Weigh(kg) | 2.8 | ||
Package Size(mm) | 290*250*180 | ||
Package Quantity(Pcs) | 1 | ||
Gross Weigh(kg) | 3.7 |
5. Distribution Curve (100W)
6. Package:
Inner box Size: 310mm×270mm×200mm
Outer box Size: 328mm×285mm×425mm (2 PCS LED Street Light)
7. Optional Function:
Daylight automatically controlling ON / OFF
8. Projects Reference:
9. About us:
Shenzhen Leyond Lighting Co.,Ltd. was founded in 2005 which is the wholly-owned subsidiary of LiYang Electronic(Hongkong) Limited. We are High-Tech enterprise who concentrate and specialize in developing and producing Eco-friendly high power LED Lightings.
Leyond company is located in Shenzhen, owns a 6000m2 factory with high qualified clear workshops and 300 employees. Together with outstanding optical & technical personnels and quality engineers; equipped with advance automaticity Die Bonding & chip bonding equipments and molding machines; perfect quality-testing and safeguard measures; all of these promote Leyond to be the leader in the industry.
“Innovation is the base of development; qualified service is the foundation of existence”, Leyond keeps up with marketing trend based on customers’ requirements, try to supply the best products with best price & quality and humanistic service.
LEYOND is the Top 3 LED street light exporter from China,Our major products include Led Street lights, Led flood light,Stadium&Large Area Lighting,Led Canopy lights,ect,All design and making by ourself. According to customers’ requirement we can supply professional lighting solution not only design but also in production. Leyond operates strictly based on ISO 9001:2000, the quality management system from purchasing to designing to manufacturing.
Our products are exported to Europe, Americas, Africa and other Asian countries with UL,ROHS,CE and CB international standard. Also we have flexible and timely after-sales services. We offer high quality products and sustainable service to our customers, establishing long-term cooperative relationship with them.
Feeling the charm of light, to find the value of the light. We carry out enterprise culture of the “To customer demand as the guide,keep the leading technology, to create maximum value for customers”, and the spirit of “Humility self-discipline, perseverance, go all out” is our permanent pursuit. Leyond is striving to achieve the goal of “to be the best LED lighting supplier” and to“ build Leyond brand”
