High Lumen Output Meanwell 120w LED Street Light Ip66 Waterproof

High Lumen Output Meanwell 120w LED Street Light Ip66 Waterproof
High Lumen Output Meanwell 120w LED Street Light Ip66 Waterproof High Lumen Output Meanwell 120w LED Street Light Ip66 Waterproof High Lumen Output Meanwell 120w LED Street Light Ip66 Waterproof High Lumen Output Meanwell 120w LED Street Light Ip66 Waterproof

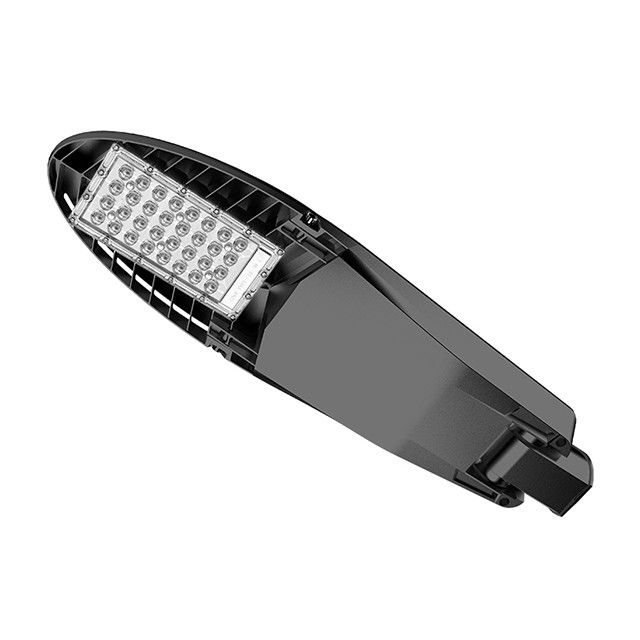

Large Image :  High Lumen Output Meanwell 120w LED Street Light Ip66 Waterproof

Product Details:

Place of Origin: China
Brand Name: Leyond
Certification: CE,ROHS,ISO
Model Number: LY-ST81120XX

Payment & Shipping Terms:

Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Carton package
Delivery Time: 7-10 working days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 5000pcs/mon
Detailed Product Description
Beam Angle: 150*80 Degree Product Name: LED Street Light
Warranty: 5 Years High Efficiency: 160lm/w
Power: 120W Chip Brand: 5050
Driver: Meanwell
High Light:

120w LED Street Light

,

Ip66 120w LED Street Light

,

Ip66 Energy Saving Street Lighting

High Lumen Output Meanwell 120w LED Street Light Ip66 Waterproof



Ip66 Waterproof High Lumen Output Outdoor Lighting Led Street Light 120W

Features

  • The shell adopts die-casting integral molding, which has higher safety and longer life.
  • The product has a beautiful appearance and curved lines, which effectively reduces wind resistance;
  • The product has a smooth surface and self-cleaning function, which effectively reduces dust accumulation;
  • Using Philips 5050 lamp beads, the luminous efficiency is as high as 160lm/w
  • The optical lens adopts Japanese PC material, with a light transmittance of over 93%, anti-ultraviolet rays, and good product stability;
  • The lamp is equipped with a level gauge for positioning, which is more time-saving and beautiful in installation
  • Waterproof and dustproof grade: IP66, protection grade IK10;
  • The product is equipped with other more optional functions: light controller, circuit breaker, single lamp controller, anti-falling sling, etc.

Specification:



Par NO

Parameter

LY-ST81120XX LY-ST81150XX LY-ST81180XX
Input voltage AC100V~277V 50/60HZ / DC12-24V
POWER(W) 120W 150W 180W
Luminous flux(lm) 19200 23250 27000
Chip Brand LUXEON 5050
LED Quantity (pcs) 54
Beam Angle TYPE III 150*80
CRI 70/80
Color Temperature Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K
Luminous efficiency(lm/w) 160 >155 >150
LED Driver MEAN WELL / INVENTRONICS
Lifespan(h) 50000
IP Rating / IK IP66 / IK10
Material ADC 12
Dimmable 1-10V/DALI
Light body color Black/Grey
working environment Temperature -20 to +45°C, Relative Humidity 20~90%
Storage environment Temperature -20 to +60°C, Relative Humidity 5~95%
Size(mm) L806*W200*H109mm (L31.73*W7.88*H4.29Inch)
Net Weigh(kg) 5.1
Package Size(mm) L847*W242*H154mm (L33.35*W9.53*H6.06inch)
Package Quantity(Pcs) 1
Gross Weigh(kg) 6.1
Installationheight(m) 8-12



Application



Suitable for the street lighting at highways, urban roads and secondary roads, stadiums,sidewalk,

residential areas, industrial areas, squares, parks, schools, villas, gardens and other places.



IP66 IK10 160LM/W 150W Petrel LED Street Light smooth aluminium housing 10KV SPD 5 years warranty 4

IP66 IK10 160LM/W 150W Petrel LED Street Light smooth aluminium housing 10KV SPD 5 years warranty 5


Distribution Curve (20W)

High Lumen Output Meanwell 120w LED Street Light Ip66 Waterproof 2

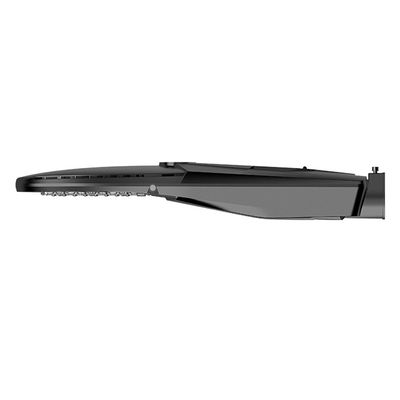

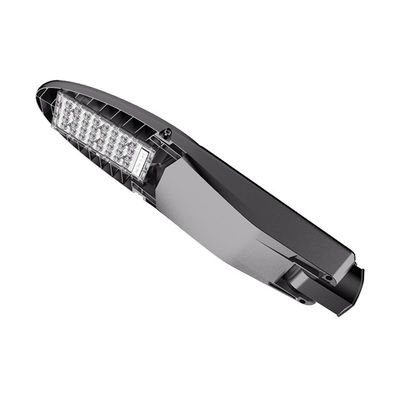

Outlook:

High Lumen Output Meanwell 120w LED Street Light Ip66 Waterproof 3

Package:



Name Size Quantity N.G G.W
Inner box

L614.0*W222.0*H162.0mm

L24.17*W8.74*H6.38inch

1pcs 2.5kg 3.3kg
Outer box

L632.0*W456.0*H348.0mm

L24.88*W17.95*H13.70inch

4pcs 10.0kg 14.2kg
