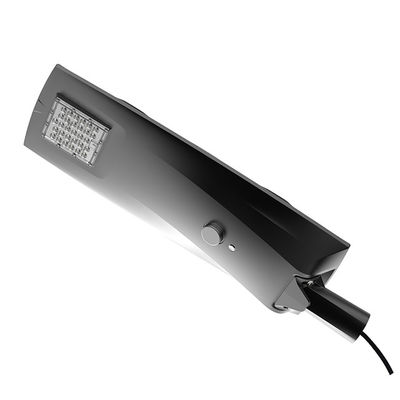

High Power 180lm/W 50W Solar LED Street Light With Time Control

High Power 180lm/W 50W Solar LED Street Light With Time Control

180lm/W High Power 50W Integrated Solar Led Street Light with Time Control, Light Sensor Control, Motion Sensor Control

01 Features of solar led street light

1. The intergration of design ,no cable,the installation is very convenient,easy for us to installation.

2. The Mono-crystalline solar panel,LUXEON 5050 Led Chips. lithium iron phosphate battery,intelligent controller integrated Aluminum Alloy shell,

3. Solar Panel Charges in Sunny daytime, light works at night with the power stored by battery, When People leaves 8-10M away, after set times, the light will dim to set brightness, when people comes 8-10 near, the light will turn on.

4. When the products with optically controlled microwave induction infrared sensor, automatic adjustment of intelligent power on rainy days, extend rainy days.

5. The wireless remote control setting device,adjustable lighting time ,lighting power ,automatic detection of battery voltage,read light power parameters,a human body induction function,as long as people go through when full power lighting,no automatic power down alf, restore energy saving mode.

6. time control + light sensor control+ motion sensor control

7. Motion and light sensor built in:solar street light goes on at dusk at 50% brightness. Can go from 50% power to full brightness when motion is detected. Three Intelligent Modes: Bright / DIM / Recharge.

* Bright: motion activates for lighting when motion is detected for security light and to save battery;

*DIM: 50% lighting for saving power when no motion;

*Off/Recharge: automatically turns off in daylight and goes into recharge mode. (working mode can be adjusted according to client's demands).

8. AC/DC Hybrid system for optional:Features a DC detection function. If DC available, the system will automatically switch to lithium battery supply when the battery voltage rise to the DC switching point; the system will automatically switch to DC power supply when the battery voltage falls to the DC switching point; if DC powers off, the system will shut off output when the battery reaches the over-discharge point after continuous discharging.

02 Specification of led street light

	Product Name	50W Solar Led Street Light
	Battery	18650 lithium battery 12V 50Ah
	Beam angle	150x65°
	Solar panel	50W /18V monocrystalline silicon (Life span of 25 years, 80% efficiency)
	Operating time	>12 hours ,Intelligent mode 3-4 days (Affected by local use environment and sunlight)
	Control Mode	Time control + light sensor control + motion sensor control
	Optional	AC/DC Hybrid System
	IP Rating / IK	IP66 / IK10
	Installation height(m)	4-8m

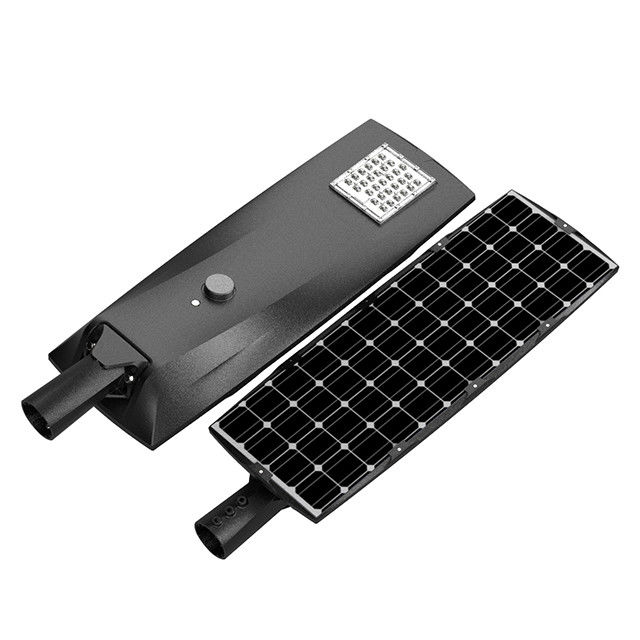

03.Details of solar led street lighting

04.led street light 30w Intelligent Control System Work Mode

05.Production Pictures of solar street light

06.Project Case all in one solar led street light
