Product Details:
Payment & Shipping Terms:
|
| Galaxy LED Street Light: | 180W | LED Chips: | Lumileds Luxeon 5050 |
|---|---|---|---|
| LED Driver: | Meanwell | Housing: | Die Custing Aluminum |
| Power Factor: | >0.98 | Warranty: | 5 Years |
| Extended Configurations:: | Surge Protector/Photocell/NEMA 7 Pin Socket/0-10v Dimming Driver | Housing Color: | Black,Grey And Selectable |
| High Light: | IP66 180w LED Street Light,ENEC 180w LED Street Light,ENEC Commercial Led Lighting |
||
ENEC IP66 180w LED Street Light Die Custing Aluminum Housing
Leyond IP66 180W LED Street lighting fixtures with 160Lm/W high efficiency.

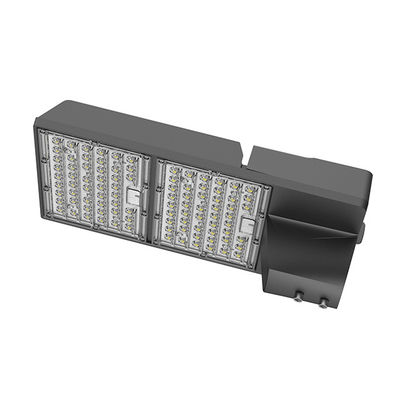

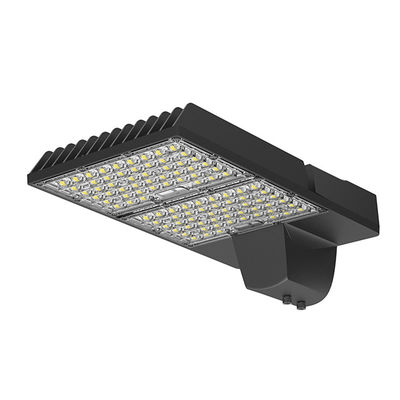

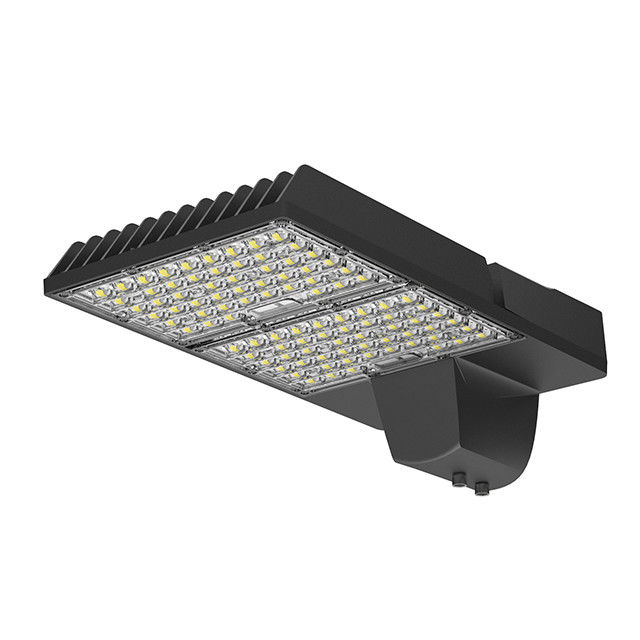

1. Outlook:
2. Application:
Suitable for the street lighting at highways, urban roads and secondary roads, stadiums,sidewalks, residential areas, industrial areas, squares, parks, schools, villas, gardens and other places.
3. Features:
1) The appearance of body: aluminum alloy die-casting;
2) Anti-glare and uniform light level to avoid any visual discomfort;
3) Adopting LUXEON 5050 led light sources and LEYOND lens technology, higher light transmittance up to 93%;

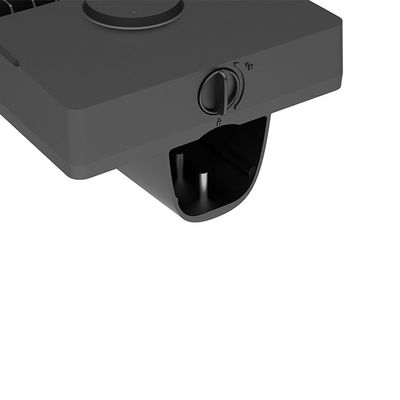

4) The power supply is designed to be portable and easy to construct and maintain. Easy to disassemble and assemble.
You can easily open and cover up the housing with your hands, don't need any additional tools.
5) Dust and snow proof: Adopt smooth die-cast aluminum housing, successfully prevent the dust and snow from accumulating
on the housing, thus better heat dissipation and longer life span.
6) High quality power supply, input voltage 100-305V. The power efficiency is more than 90%, power factor greater than 0.98.
4. Specifications:
|
Par NO |
LY-ST60180PW | LY-ST60180WW | LY-ST60180NW | |
| Inptut voltage | AC100V～305V 50/60HZ | |||
| Sysem consumption(W) | 180 | 180 | 180 | |
| Luminous flux(lm) | 30250 | 27000 | 29000 | |
| Chip Brand | LUXEON 5050/LEYOND 5050 | LUXEON 5050/LEYOND 5050 | LUXEON 5050/LEYOND 5050 | |
| Color Temperature | Pure white:5000-6500K | Warm white:2700-3200K | Neutral white:4000-4500K | |
| CRI | ＞70 | |||
| Beam Angle | 150*60 DEG | |||
| LED Driver | MEAN WELL XLG-200 | |||
| Luminous efficiency(lm/w) | ＞160 | |||
| Lifespan(hrs) | ＞50000 | |||
| IP Rating | IP66 | |||
| Dimmable | YES＆NO | YES＆NO | YES＆NO | |
| Size(mm) | 394x220x128 | 394x220x128 | 394x220x128 | |
| Net Weigh(kg) | 3.6 | 3.6 | 3.6 | |
| Package Size(mm) | 430*250*180 | 430*250*180 | 430*250*180 | |
| Package Quantity(Pcs) | 1 | 1 | 1 | |
| Gross Weigh(kg) | 4.7 | 4.7 | 4.7 | |
5. Package:
Inner box Size: 430mm×250mm×180mm
Outer box Size: 450mm×265mm×400mm (2 PCS LED Street Light)
6. Projects Reference:
7. Assembly –Electricity:
8. Warning:
1) Do Not Use Other Devices for LED Street Light ,Installation Such as Stabilizer, Regulator …etc
2) Do Not Open the Light Engine
3) Do Not Soak the LED Street Light into Water
4) Do Not Light up the System Without Grounding
5) 1-10V dimming need to be customized
