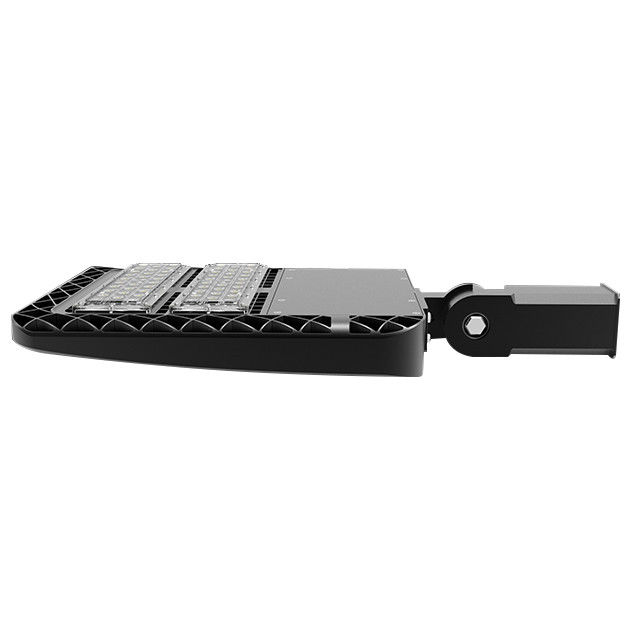

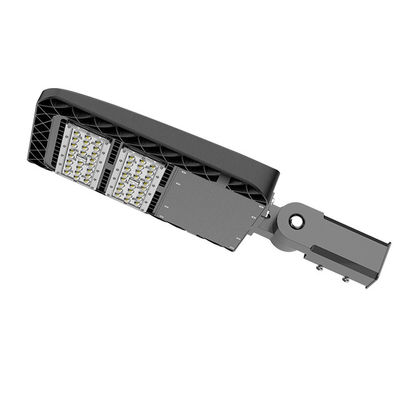

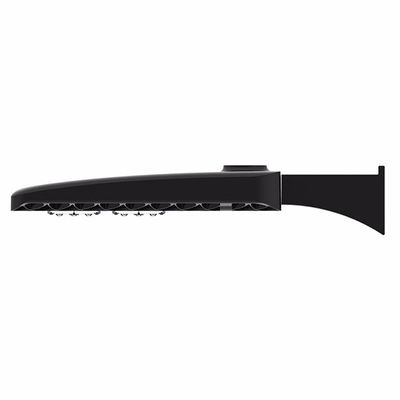

Leyond Spiderman IP66 100w LED street light Lumileds Luxeon 5050

Leyond Spiderman IP66 100w LED street light Lumileds Luxeon 5050
Leyond Spiderman IP66 100w LED street light Lumileds Luxeon 5050

Large Image :  Leyond Spiderman IP66 100w LED street light Lumileds Luxeon 5050

Product Details:

Place of Origin: China
Brand Name: Leyond
Certification: ENEC CB CE ROHS
Model Number: LY-ST40100-XX

Payment & Shipping Terms:

Minimum Order Quantity: 2
Price: Negociatable
Packaging Details: H*W*L
Delivery Time: Sample:3-5 days;Maa production:10-12 working days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 5000-10000/month
Contact Now
Detailed Product Description
Product Nanme: LED Street Light Lamp Power: 80W,100W
LED Chips: C LED Driver: Meanwell
Lamp Body Material: Die Custing Aluminum Waterproof Rating: IP66
Whole Lamp Efficiency: 160 Warranty: 5 Years
High Light:

IP66 100w LED Street Light

,

Luxeon 5050 100w LEDstreet Light

,

LED Road Lighting

Leyond Spiderman IP66 100w LED Street Light Lumileds Luxeon 5050



Leyond IP66 Spiderman LED Street light 100W for LED Road lighting.



Features

  • Absolutely unique mold,make your lighting special and fantastic.
  • Anti-glare and uniform light level to avoid any visual discomfort.
  • high quality power supply, input voltage 100-277V. The power efficiency is more than 90%, power factor greater than 0.98.
  • Adopting Lumileds Luxeon 5050 led light sources and LEYOND lens technology, 8% light efficiency higher than the same type lights in the market, higher light transmittance up to 98%.
  • Low energy consumption,matching high efficiency constant-current driver, 60% energy saving; with good resistance to over-current, over-voltage, lightning, high temperature, which fully ensure long life span and high stability of the products.
  • Durable lights with long life span up to 50000 hours; No need frequent replacements of lights and regular maintenance.
  • Nice appearance and non-fouling properties, Protection class IP66.

Specification



Par NO

Parameter

 LY-ST40100PW LY-ST40100WW LY-ST40100NW
Input voltage AC90V～305V 50/60HZ
System consumption(W) 100 100 100
Luminous flux(lm) 16500 15500 16100
Chip Brand Luxeon50500/Leyond 5050 Luxeon5050/Leyond 5050 Luxeon5050/Leyond 5050
Beam Angle 150*65 DEG 150*65 DEG 150*65 DEG
CRI ＞70
Color Temperature Warm white:2700-3200K / Neutral white:4000-4500K / Pure white:5000-6500K
LED Driver MEAN WELL ELG-100H / XLG-100
Luminous efficiency(lm/w) ＞160
Lifespan(hrs) ＞50000
IP Rating IP66
Dimmable YES＆NO YES＆NO YES＆NO
Size(mm) 720x340x69 720x340x69 720x340x69
Net Weigh(kg) 7.3 7.3 7.3
Package Size(mm) 740*368*110 740*368*110 740*368*110
Package Quantity(Pcs) 1 1 1
Gross Weigh(kg) 8.4 8.4 8.4





Detailed Product Pictures

Leyond Spiderman IP66 100w LED street light Lumileds Luxeon 5050 0

Leyond Spiderman IP66 100w LED street light Lumileds Luxeon 5050 1'

Leyond Spiderman IP66 100w LED street light Lumileds Luxeon 5050 2



04. Package



Inner box Size: 670mm×370mm×100mm

Outer box Size: 690mm×385mm×240mm (2 PCS LED Street Light)



Leyond Spiderman IP66 100w LED street light Lumileds Luxeon 5050 3

05. Production



Leyond Spiderman IP66 100w LED street light Lumileds Luxeon 5050 4



06. Testing Machine



Leyond Spiderman IP66 100w LED street light Lumileds Luxeon 5050 5



07. Exhibition



Leyond Spiderman IP66 100w LED street light Lumileds Luxeon 5050 6



08. Installation Type



Leyond Spiderman IP66 100w LED street light Lumileds Luxeon 5050 7



09. Project Case:



Leyond Spiderman IP66 100w LED street light Lumileds Luxeon 5050 8
