Integrated Solar 80W 100W LED Street Lighting For 3 Years Warranty

large.img.alt
large.img.alt

Large Image :  Integrated Solar 80W 100W LED Street Lighting For 3 Years Warranty

Product Details:

Place of Origin: China
Brand Name: Leyond
Certification: CE ROHS ENEC CB
Model Number: LY-ST31100-XX

Payment & Shipping Terms:

Minimum Order Quantity: 2
Price: negotiable
Packaging Details: 140X21X43cm
Delivery Time: 12-15day
Payment Terms: T/T, Western Union, L/C
Supply Ability: 2000-5000/month
Detailed Product Description
Product Item: Integrated Solar LED Street Light Lamp Power: 80W,100W
LED Chips: Lumileds Luxeon 5050 Materials: Mono Solar Panel + Die Custing Aluminum Housing
Whole Lamp Efficiency: >160Lm/W Operating Time: Full Power>12H, Intelligent Mode 3-4 Days
High Light:

100W LED Street Lighting

,

Luxeon 5050 LED Street Lighting

,

100W Integrated Solar Street Light

Integrated Solar 80W 100W LED Street Lighting For 3 Years Warranty

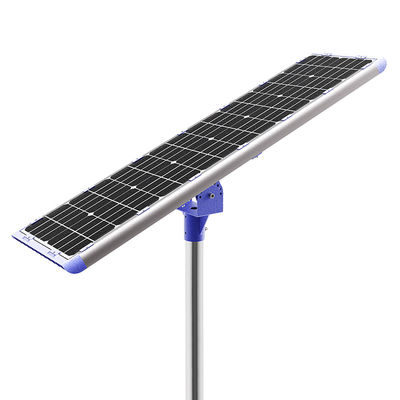

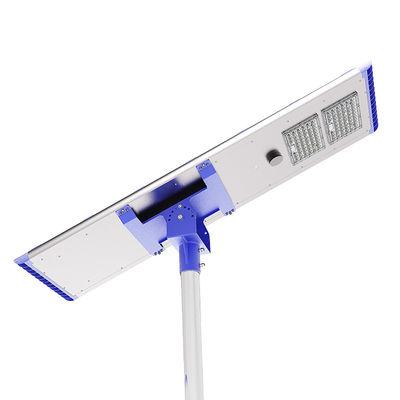

1. Outlook



Integrated Solar 80W 100W LED Street Lighting For 3 Years Warranty 0



02. Features:

1. The lamp adopts integrated structure design, with better heat dissipation design and longer life;

2. Using LUXEON 5050 lamp beads, the whole lighting effect is up to 160lm/W;

3. The solar panel is made of Monocrystalline silicon, with a higher conversion efficiency, up to 18%, and a service life of up to 25 years;

4. Using the most advanced MPPT tracking control technology to improve system efficiency and reduce costs;

5. It has functions of light control, time control, dimming, intelligent power saving + morning light;

6. Solar controller built-in lightning protection module;

7. Using ternary lithium battery technology, the battery capacity is high;

8. 365 days uninterrupted power.

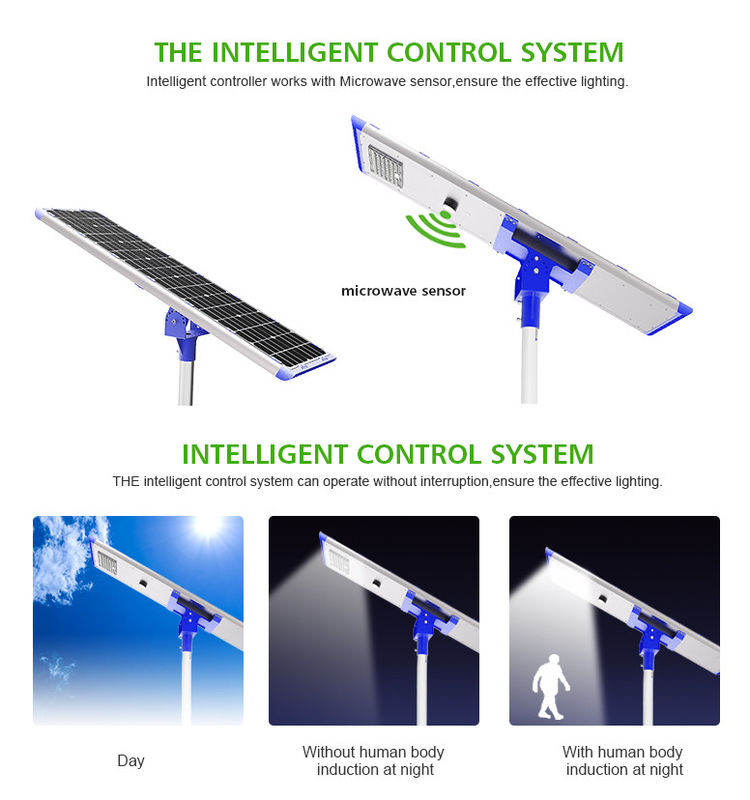

9. Three control model:

Time control + light sensor control + motion sensor control;

Time control: It can be divided into 5 time periods, which is more humane and energy-saving;

Light sensor control: When the evening comes, when the solar panel battery voltage is lower than 3V,the lamp will  automatically turn on;

Motion sensor control: A motion-sensing energy-saving mode. When a moving object is sensed, the lamp will have 100% brightness; when no moving object is sensed, the lamp will be in a low-power and energy-saving state, with a brightness of 10%-100% (can be set)



03. specification



Par NO

Parameter

LY-ST31100PW LY-ST31100WW LY-ST31100NW
Battery 18650 lithium battery 12V 50 Ah
Beam angle 150x70° 150x60° 150x70°
Pole diameter 60MM 60MM 60MM
Light output 100W 100W 100W
Luminous flux(lm) 16000 15500 15000
Color Temperature Pure white:5000-6500K Warm white:2700-3200K Neutral white:4000-4500K
Solar panel 100W /18V mono-crystalline silicon
CRI >70
Chip Brand LUXEON 5050
Operating time Full power >12 hours ,Intelligent mode 3-4 days
Control Mode Light Control + Sensor
Material Die Casting Aluminum
Luminous efficiency(lm/w) >160
Lifespan(hrs) >50000
IP Rating IP66
Installation height 6~8M



Integrated Solar 80W 100W LED Street Lighting For 3 Years Warranty 1

Integrated Solar 80W 100W LED Street Lighting For 3 Years Warranty 2

Integrated Solar 80W 100W LED Street Lighting For 3 Years Warranty 3





04. Package



Box Size: L1395.0×W210.0×H430.0mm (1 PCS LED Street Light)

               L54.92*W8.26*H16.93 Inch

Integrated Solar 80W 100W LED Street Lighting For 3 Years Warranty 4



05. About Us

Shenzhen Leyond Lighting Co.,Ltd. was founded in 2005 which is the wholly-owned subsidiary of LiYang Electronic(Hongkong) Limited. We are High-Tech enterprise who concentrate and specialize in developing and producing Eco-friendly high power LED Lightings.



Leyond company is located in Shenzhen, owns a 6000m2 factory with high qualified clear workshops and 300 employees. Together with outstanding optical & technical personnels and quality engineers; equipped with advance automaticity Die Bonding & chip bonding equipments and molding machines; perfect quality-testing and safeguard measures; all of these promote Leyond to be the leader in the industry.

“Innovation is the base of development; qualified service is the foundation of existence”, Leyond keeps up with marketing trend based on customers’ requirements, try to supply the best products with best price & quality and humanistic service.

LEYOND is the Top 3 LED street light exporter from China,Our major products include Led Street lights, Led flood light,Stadium&Large Area Lighting,Led Canopy lights,ect,All design and making by ourself. According to customers’ requirement we can supply professional lighting solution not only design but also in production. Leyond operates strictly based on ISO 9001:2000, the quality management system from purchasing to designing to manufacturing.

Our products are exported to Europe, Americas, Africa and other Asian countries with UL,ROHS,CE and CB international standard. Also we have flexible and timely after-sales services. We offer high quality products and sustainable service to our customers, establishing long-term cooperative relationship with them.

Feeling the charm of light, to find the value of the light. We carry out enterprise culture of the “To customer demand as the guide,keep the leading technology, to create maximum value for customers”, and the spirit of “Humility self-discipline, perseverance, go all out” is our permanent pursuit. Leyond is striving to achieve the goal of “to be the best LED lighting supplier” and to“ build Leyond brand”.

06. Production

Integrated Solar 80W 100W LED Street Lighting For 3 Years Warranty 5



07. Exhibition



Integrated Solar 80W 100W LED Street Lighting For 3 Years Warranty 6
