All In One 80W 100W IP66 LED Street Light For Roadway Lighting Fixture

All In One 80W 100W IP66 LED Street Light For Roadway Lighting Fixture
All In One 80W 100W IP66 LED Street Light For Roadway Lighting Fixture All In One 80W 100W IP66 LED Street Light For Roadway Lighting Fixture All In One 80W 100W IP66 LED Street Light For Roadway Lighting Fixture All In One 80W 100W IP66 LED Street Light For Roadway Lighting Fixture

Large Image :  All In One 80W 100W IP66 LED Street Light For Roadway Lighting Fixture

Product Details:

Place of Origin: China
Brand Name: Leyond
Certification: CE ROHS ENEC CB
Model Number: LY-ST31080-XX

Payment & Shipping Terms:

Minimum Order Quantity: 2
Price: negotiable
Packaging Details: 140X21X43cm
Delivery Time: 12-15day
Payment Terms: T/T, Western Union, L/C
Supply Ability: 2000-5000/month
Detailed Product Description
Product Item: All In One Solar LED Street Light Lamp Power: 80W,100W
LED Chips: Lumileds Luxeon 5050 Materials: Mono Solar Panel + Die Custing Aluminum Housing
Whole Lamp Efficiency: >160Lm/W Operating Time: Full Power>12H, Intelligent Mode 3-4 Days
High Light:

80W IP66 LED Street Light

,

100W IP66 LED Street Light

,

80W IP66 Solar LED Street Light

All In One 80W 100W IP66 LED Street Light For Roadway Lighting Fixture

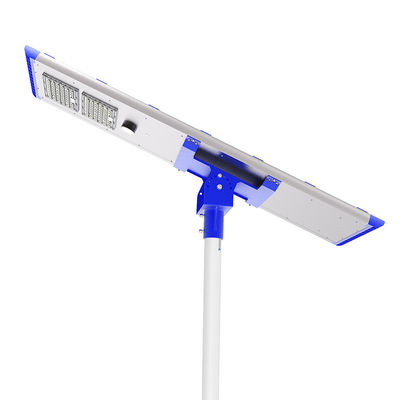

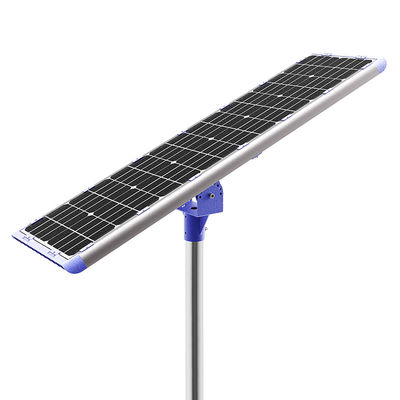

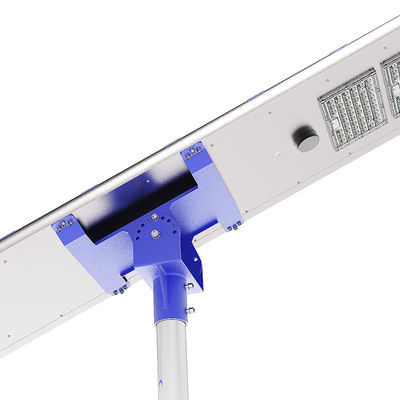

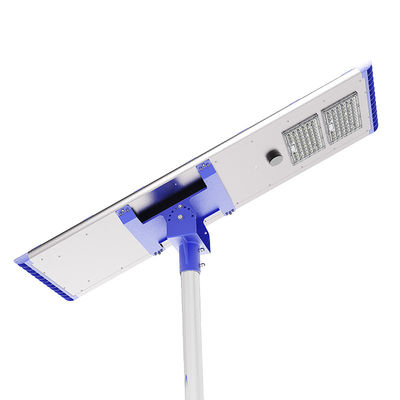

1. Outlook



All In One 80W 100W IP66 LED Street Light For Roadway Lighting Fixture 0



02. Features:

1. The lamp adopts integrated structure design, with better heat dissipation design and longer life;

2. Using LUXEON 5050 lamp beads, the whole lighting effect is up to 160lm/W;

3. The solar panel is made of Monocrystalline silicon, with a higher conversion efficiency, up to 18%, and a service life of up to 25 years;

4. Using the most advanced MPPT tracking control technology to improve system efficiency and reduce costs;

5. It has functions of light control, time control, dimming, intelligent power saving + morning light;

6. Solar controller built-in lightning protection module;

7. Using ternary lithium battery technology, the battery capacity is high;

8. 365 days uninterrupted power.

9. Three control model:

Time control + light sensor control + motion sensor control;

Time control: It can be divided into 5 time periods, which is more humane and energy-saving;

Light sensor control: When the evening comes, when the solar panel battery voltage is lower than 3V,the lamp will  automatically turn on;

Motion sensor control: A motion-sensing energy-saving mode. When a moving object is sensed, the lamp will have 100% brightness; when no moving object is sensed, the lamp will be in a low-power and energy-saving state, with a brightness of 10%-100% (can be set)



03. specification



Par NO

Parameter

LY-ST31080PW LY-ST31080WW LY-ST31080NW
Battery 18650 lithium battery 12V 70 Ah
Beam angle 150x70° 150x60° 150x70°
Pole diameter 60MM 60MM 60MM
Light output 80W 80W 80W
Luminous flux(lm) 12800 12500 12000
Color Temperature Pure white:5000-6500K Warm white:2700-3200K Neutral white:4000-4500K
Solar panel 80W /18V mono-crystalline silicon
CRI >70
Chip Brand LUXEON 5050
Operating time Full power >12 hours ,Intelligent mode 3-4 days
Control Mode Light Control + Sensor
Material Die Casting Aluminum
Luminous efficiency(lm/w) >160
Lifespan(hrs) >50000
IP Rating IP66
Installation height 6~8M



All In One 80W 100W IP66 LED Street Light For Roadway Lighting Fixture 1

All In One 80W 100W IP66 LED Street Light For Roadway Lighting Fixture 2

All In One 80W 100W IP66 LED Street Light For Roadway Lighting Fixture 3





04. Package



Box Size: L1395.0×W210.0×H430.0mm (1 PCS LED Street Light)

               L54.92*W8.26*H16.93 Inch

All In One 80W 100W IP66 LED Street Light For Roadway Lighting Fixture 4

05. Distribution Curve



All In One 80W 100W IP66 LED Street Light For Roadway Lighting Fixture 5

All In One 80W 100W IP66 LED Street Light For Roadway Lighting Fixture 6



06. Operation and Storage Condition

l Operation Ambient Temperature -10 to +45°C, Relative Humidity 20~90%

l Storage Ambient Temperature -10 to +35°C, Relative Humidity 5~95%

l Mounting Height: Suitable for 6~8m height







07. Lamp internal wiring diagram

All In One 80W 100W IP66 LED Street Light For Roadway Lighting Fixture 7

08. Warning

1. Do not install in high temperature, closed and non-ventilated areas;

2. The installation location should not be installed under the tree or the place where there are obstructions. The solar panel must be  exposed to sunlight in all directions;

3. When the product is stored in the warehouse, it needs to be charged and discharged every 3 months;

4. When the product is faulty, you need to find a professional to deal with it;

5. Eliminate scrapped products, must be handed over to the relevant departments for Centralized processing.
